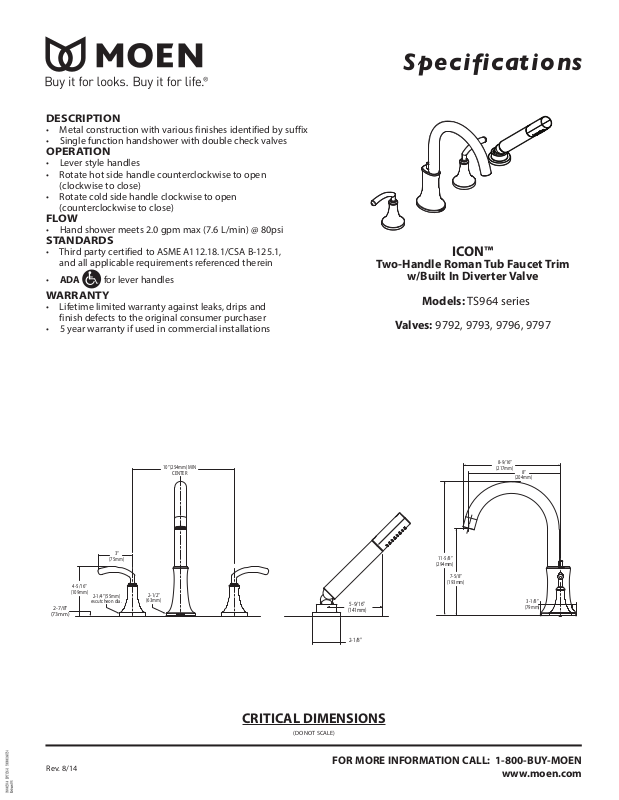

Moen MOE5356 Specifications

DESCRIPTION

• Metal construction with various finishes identified by suffix

• Single function handshower with double check valves

OPERATION

• Lever style handles

• Rotate hot side handle counterclockwise to open
(clockwise to close)

• Rotate cold side handle clockwise to open
(counterclockwise to close)

FLOW

• Hand shower meets 2.0 gpm max (7.6 L/min) @ 80psi

STANDARDS

• Third party certified to ASME A112.18.1/CSA B-125.1,
and all applicable requirements referenced therein

• ADA for lever handles

WARRANTY

• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser

• 5 year warranty if used in commercial installations

Specificatio ns

ICON™

Two-Handle Roman Tub Faucet Trim

w/Built In Diverter Valve

Models: TS964 series

Valves: 9792, 9793, 9796, 9797

2-7/8"

(73mm)

4-5/16”

(109mm)

3“

(75mm)

2-1/4” (55mm)

escutcheon dia.

2-1/2”

(63mm)

10” (254mm) MIN

CENTER

5-9/16"

(141mm)

2-1/8"

CRITICAL DIMENSIONS

(DO NOT SCALE)

11-5/8”

(294mm)

(193mm)

7-5/8”

8-9/16”

(217mm)

8”

(204mm)

3-1/8”

(79mm)

Rev. 8/14
