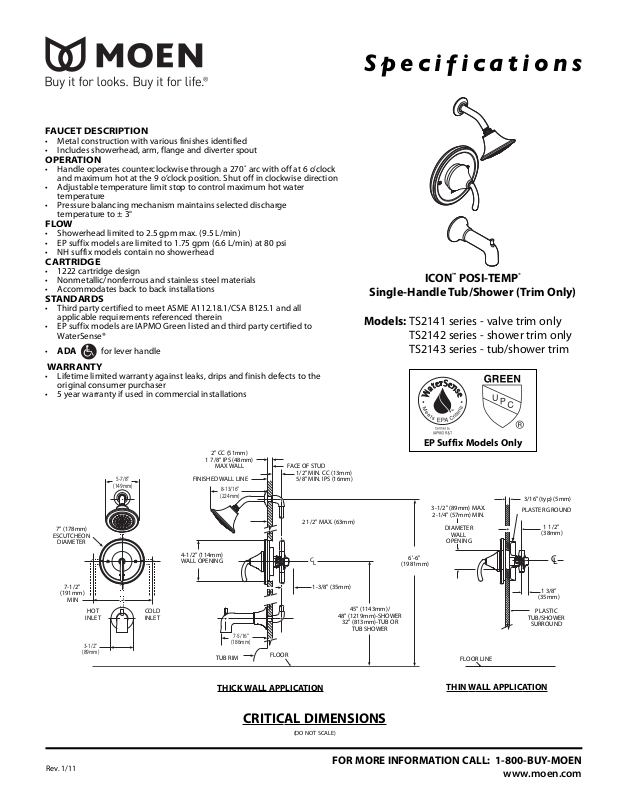

Page 1
Specifications
CRITICAL DIMENSIONS
(DO NOT SCALE)
Rev. 1/11
THIN WALL APPLICATION
THICK
WALL APPLICATION
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
ICON™POSI-TEMP
®
Single-Handle Tub/Shower (Trim Only)
Models: TS2141 series - valve trim only
TS2142 series - shower trim only
TS2143 series - tub/shower trim
FAUCET DESCRIPTION
• Metal construction with various finishes identified
• Includes showerhead, arm, flange and diverter spout
OPERATION
• Handle operates counterclockwise through a 270˚ arc with off at 6 o’clock
and maximum hot at the 9 o’clock position. Shut off in clockwise direction
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 3°
FLOW
• Showerhead limited to 2.5 gpm max. (9.5 L/min)
• EP suffix models are limited to 1.75 gpm (6.6 L/min) at 80 psi
• NH suffix models contain no showerhead
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B125.1 and all
applicable requirements referenced therein
• EP suffix models are IAPMO Green listed and third party certified to
WaterSense®
•
ADA for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to the
original consumer purchaser
• 5 year warranty if used in commercial installations
EP Suffix Models Only
7" (178mm)
ESCUTCHEON
DIAMETER
7-1/2"
(191mm)
MIN
(89mm)
HOT
INLET
3-1/2”
5-7/8”
(149mm)
COLD
INLET
2" CC (51mm)
1 7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
4-1/2" (114mm)
WALL OPENING
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
8-13/16”
(224mm)
2 1/2" MAX. (63mm)
C
L
1-3/8" (35mm)
7-5/16”
(186mm)
TUB RIM
FLOOR
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB OR
TUB SHOWER
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WAL L
OPENING
6'-6"
(1981mm)
FLOOR LINE
3/16" (typ) (5mm)
PLASTER GROUND
1 1/2"
(38mm)
C
L
1 3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
