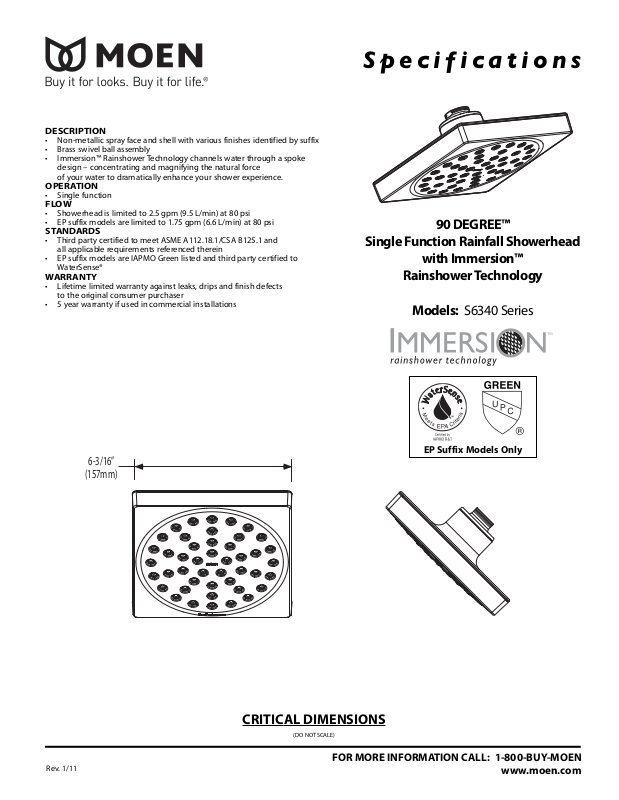

Specifications
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
90 DEGREE™
Single Function Rainfall Showerhead
with Immersion™
Rainshower Technology
Models: S6340 Series
Rev. 1/11
DESCRIPTION
• Non-metallic spray face and shell with various finishes identified by suffix
• Brass swivel ball assembly
• Immersion™ Rainshower Technology channels water through a spoke
design – concentrating and magnifying the natural force
of your water to dramatically enhance your shower experience.
OPERATION
• Single function
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min) at 80 psi
• EP suffix models are limited to 1.75 gpm (6.6 L/min) at 80 psi
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B125.1 and
all applicable requirements referenced therein
• EP suffix models are IAPMO Green listed and third party certified to
WaterSense®
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
EP Suffix Models Only
6-3/16”
(157mm)
