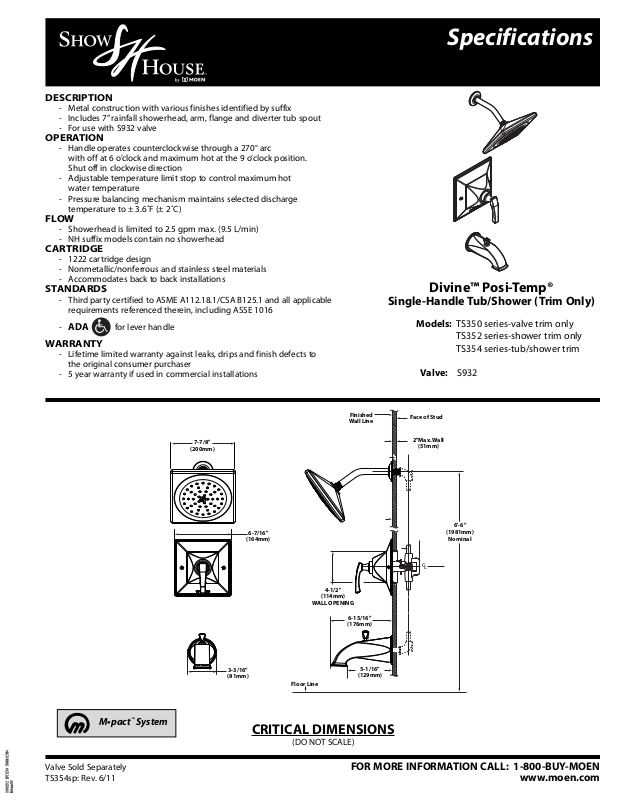

Moen MOE4884 Specifications

CRITICAL DIMENSIONS

(DO NOT SCALE)

Spec i fi ca tions

Valve Sold Separately
TS354sp: Rev. 6/11

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

Divine™ Posi-Temp®

Single-Handle Tub/Shower (Trim Only)

Models: TS350 series-valve trim only

TS352 series-shower trim only
TS354 series-tub/shower trim

Valve: S932

M•pact™System

DESCRIPTION

- Metal construction with various finishes identified by suffix

- Includes 7” rainfall showerhead, arm, flange and diverter tub spout

- For use with S932 valve

OPERATION

- Handle operates counterclockwise through a 270° arc
with off at 6 o’clock and maximum hot at the 9 o’clock position.
Shut off in clockwise direction

- Adjustable temperature limit stop to control maximum hot
water temperature

- Pressure balancing mechanism maintains selected discharge
temperature to ± 3.6˚F (± 2˚C)

FLOW

- Showerhead is limited to 2.5 gpm max. (9.5 L/min)

- NH suffix models contain no showerhead

CARTRIDGE

- 1222 cartridge design

- Non me tal lic/nonferrous and stainless steel materials

- Accommodates back to back installations

STANDARDS

- Third party certified to ASME A112.18.1/CSA B125.1 and all applicable
requirements referenced therein, including ASSE 1016

- for lever handle

WAR RANT Y

- Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser

- 5 year warranty if used in commercial installations

ADA

7-7/8"

(200mm)

3-3/16"
(81mm)

6-7/16"

(164mm)

Floor Line

4-1/2"

(114mm)

WALL OPENING

Finished

Wall Line

6-15/16"
(176mm)

5-1/16"

(129mm)

Face of Stud

2"Max. Wall

(51mm)

C

L

6'-6"

(1981mm)

Nominal
