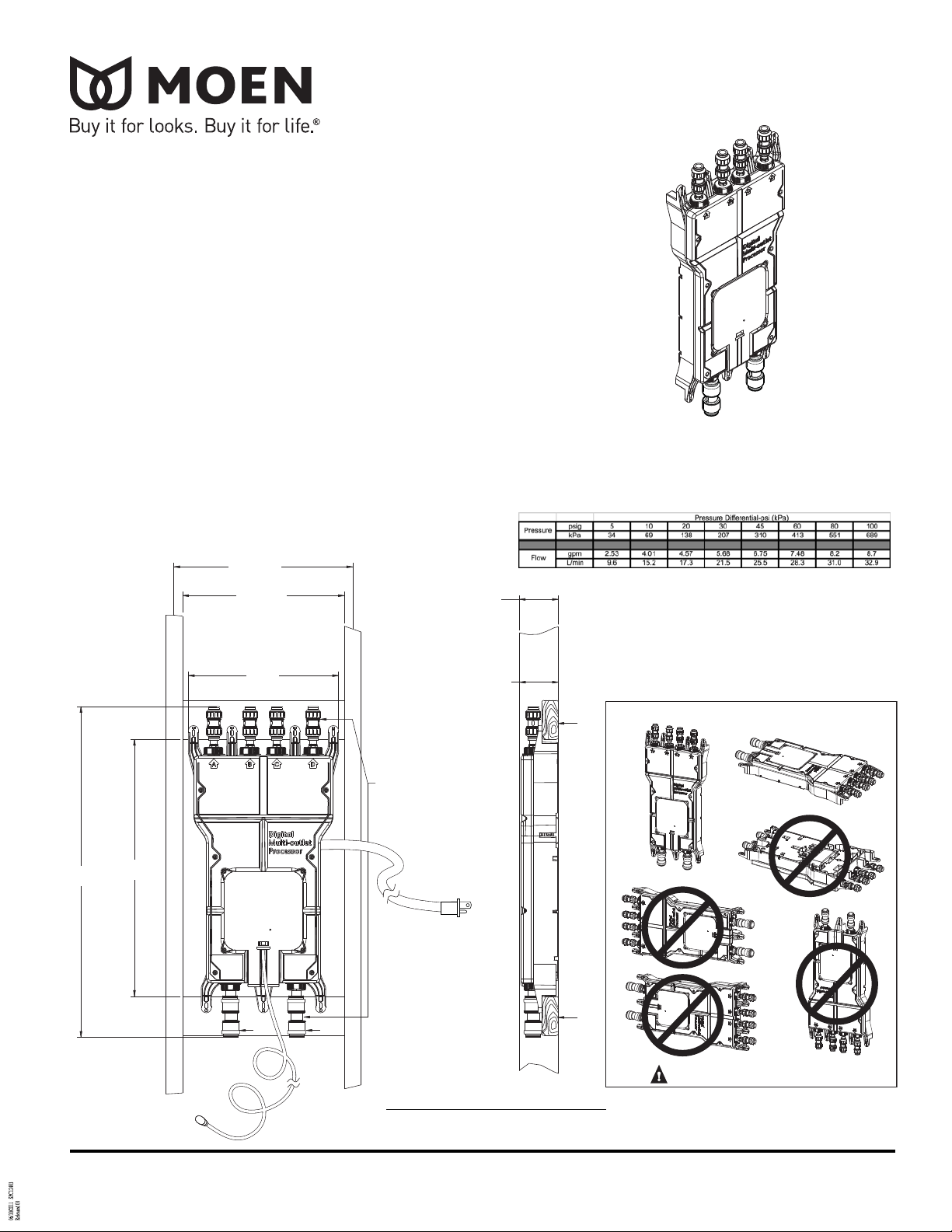

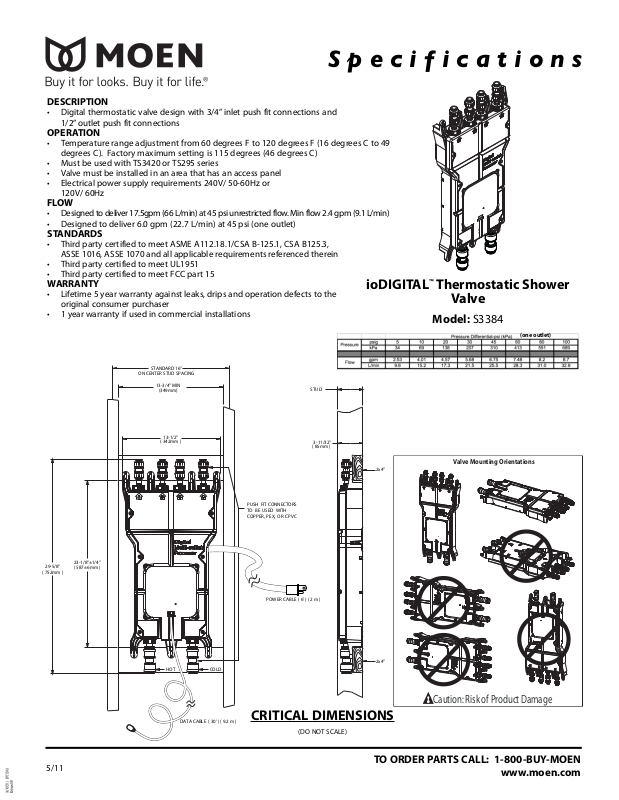

POWER CABLE ( 6' ) ( 2 m )
ioDIGITAL™Thermostatic Shower
Valve
Model: S3384
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
5/11
DESCRIPTION
• Digital thermostatic valve design with 3/4” inlet push fit connections and
1/2” outlet push fit connections
OPERATION
• Temperature range adjustment from 60 degrees F to 120 degrees F (16 degrees C to 49
degrees C). Factory maximum setting is 115 degrees (46 degrees C)
• Must be used with TS3420 or TS295 series
• Valve must be installed in an area that has an access panel
• Electrical power supply requirements 240V/ 50-60Hz or
120V/ 60Hz
FLOW
• Designed to deliver 17.5gpm (66 L/min) at 45 psi unrestricted flow. Min flow 2.4 gpm (9.1 L/min)
• Designed to deliver 6.0 gpm (22.7 L/min) at 45 psi (one outlet)
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B-125.1, CSA B125.3,
ASSE 1016, ASSE 1070 and all applicable requirements referenced therein
• Third party certified to meet UL1951
• Third party certified to meet FCC part 15
WAR RANTY
• Lifetime 5 year warranty against leaks, drips and operation defects to the
original consumer purchaser
• 1 year warranty if used in commercial installations
(one outlet)
29-5/8"
( 752mm )
23-1/8"±1/4"
( 587±6mm )
STANDARD 16"
ON CENTER STUD SPACING
13-3/4" MIN
(349mm)
13-1/2"
( 342mm )
STUD
3-11/32"
( 85mm )
2x4"
PUSH FIT CONNECTORS
TO BE USED WITH
COPPER, PEX, OR CPVC
COLDHOT
2x4"
Valve Mounting Orientations
DATA CABLE ( 30' ) ( 9.2 m )
