DESCRIPTION
• Metal construction with various finishes identified by suffix
• Includes showerhead, arm, flange and diverter spout
OPERATION
• Handle operates counterclockwise through a 270˚ arc with off
at 6 o’clock and maximum hot at the 9 o’clock position. Shut off in
clockwise direction
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 3°
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min) at 80 psi
• EP suffix models are limited to 1.75 gpm (6.6 L/min) at 80 psi
• NH suffix models contain no showerhead
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B125.1 and all
applicable requirements referenced therein
• EP suffix models are third party certified to WaterSense®
• ADA for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations

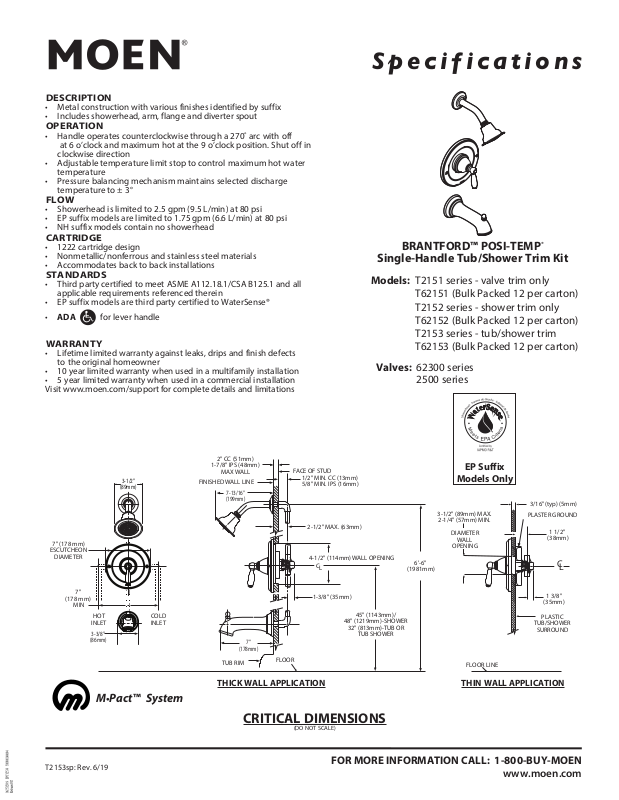

Spec i fi ca tions
BRANTFORD™ POSI-TEMP
Single-Handle Tub/Shower Trim Kit
Models: T2151 series - valve trim only
T62151 (Bulk Packed 12 per carton)
T2152 series - shower trim only
T62152 (Bulk Packed 12 per carton)
T2153 series - tub/shower trim
T62153 (Bulk Packed 12 per carton)
Valves: 62300 series
2500 series
®
7" (178 mm)
ESCUTCHEON
DIAMETER
7"
(178 mm)
MIN
3-1/2”
(89mm)
HOT
INLET
3-3/8”
(86mm)
COLD
INLET
M•Pact™ System
2" CC (51mm)
1-7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
7-13/16”
(199mm)
(178mm)
TUB RIM
CRITICAL DIMENSIONS
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
2-1/2" MAX. (63mm)
4-1/2" (114mm) WALL OPENING
C
L
1-3/8" (35mm)
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB OR
7“
FLOOR
TUB SHOWER
6'-6"
(1981mm)
EP Suffix
Models Only
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
FLOOR LINE
3/16" (typ) (5mm)
PLASTER GROUND
1 1/2"
(38mm)
C
L
1 3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
THIN WALL APPLICATIONTHICK WALL APPLICATION
(DO NOT SCALE)
T2153sp: Rev. 6/19
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
