CRITIC
AL DIMENSIONS
(DO NOT SCALE)

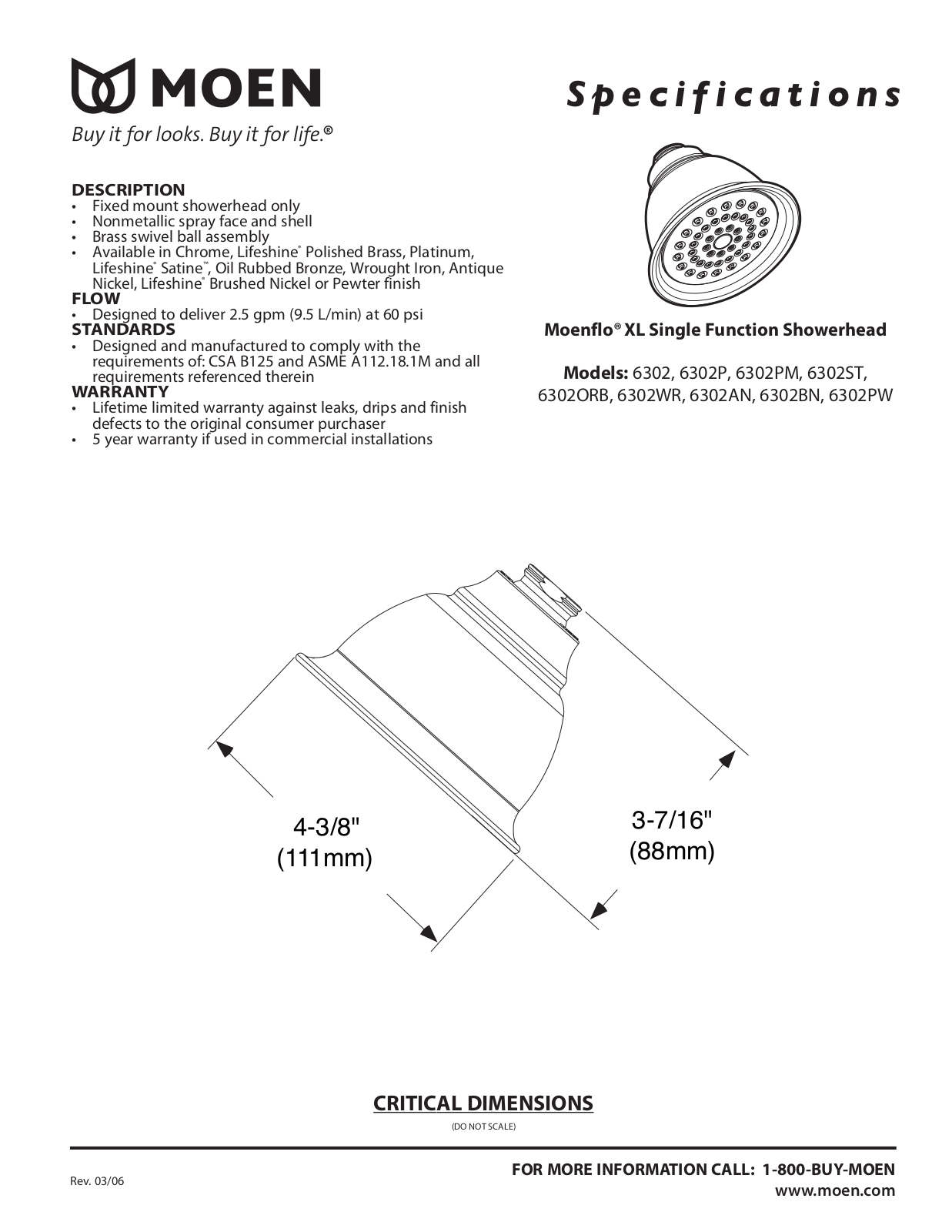

Specifications
Moenflo®XL Single Function Showerhead
Models: 6302, 6302P, 6302PM, 6302ST,
6302ORB, 6302WR, 6302AN, 6302BN, 6302PW
Rev. 03/06
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
DESCRIPTION
• Fixed mount showerhead only
• Nonmetallic spray face and shell
• Brass swivel ball assembly
• Available in Chrome, Lifeshine
®
Polished Brass, Platinum,
Lifeshine
®
Satine™, Oil Rubbed Bronze, Wrought Iron, Antique
Nickel, Lifeshine
®
Brushed Nickel or Pewter finish
FLOW
• Designed to deliver 2.5 gpm (9.5 L/min) at 60 psi
STANDARDS
• Designed and manufactured to comply with the
requirements of: CSA B125 and ASME A112.18.1M and all
requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
4-3/8"
(111mm)
3-7/16"
(88mm)
