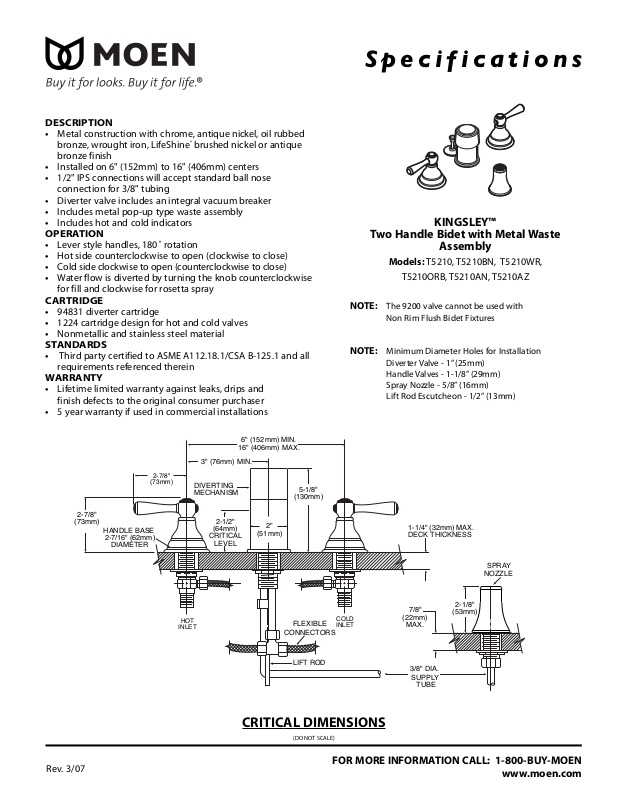

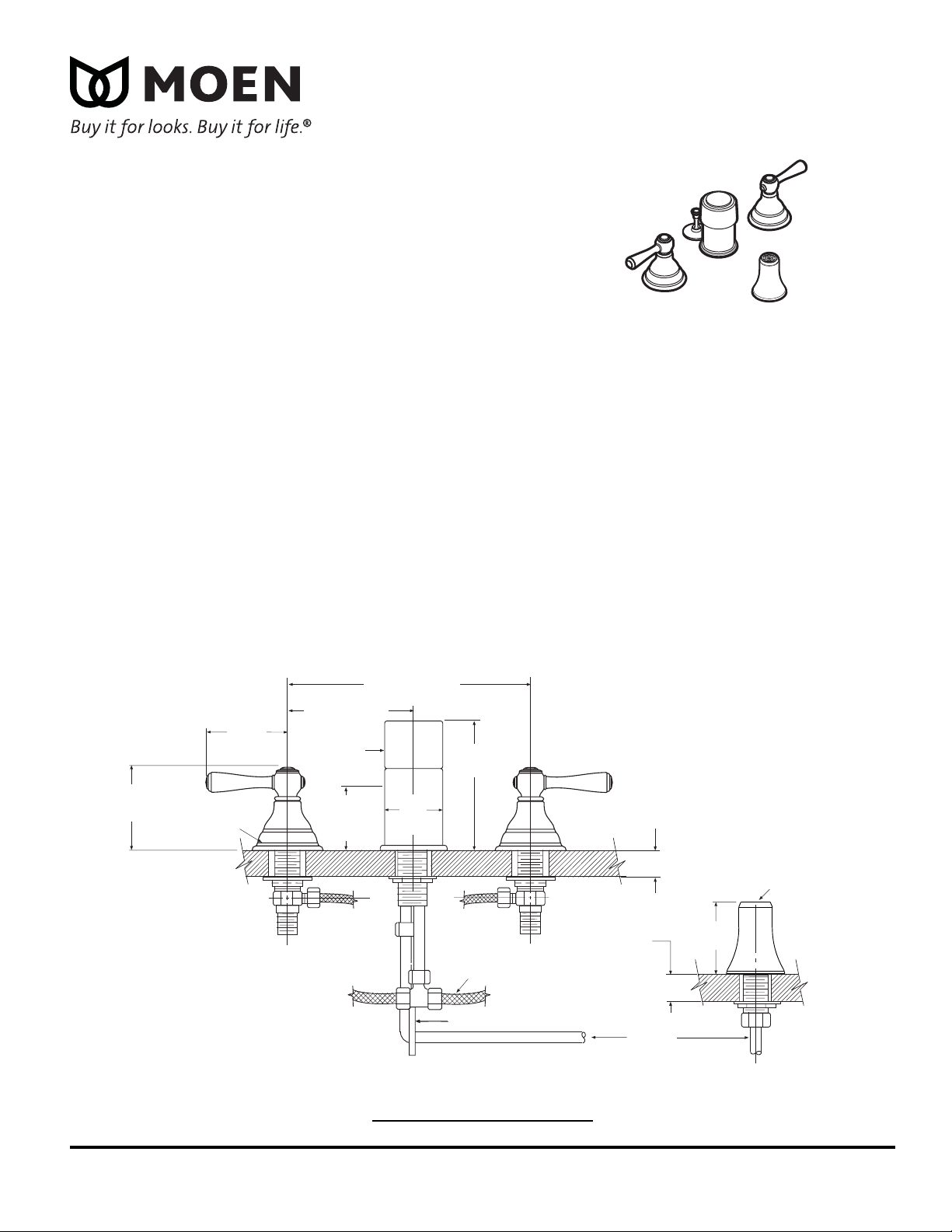

CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
DESCRIPTION
• Metal construction with chrome, antique nickel, oil rubbed
bronze, wrought iron, LifeShine®brushed nickel or antique
bronze finish
• Installed on 6" (152mm) to 16" (406mm) centers
• 1/2" IPS connections will accept standard ball nose
connection for 3/8" tubing
• Diverter valve includes an integral vacuum breaker
• Includes metal pop-up type waste assembly
• Includes hot and cold indicators
OPERATION
• Lever style handles, 180˚ rotation
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counterclockwise to close)
• Water flow is diverted by turning the knob counterclockwise
for fill and clockwise for rosetta spray
CARTRIDGE
• 94831 diverter cartridge
• 1224 cartridge design for hot and cold valves
• Nonmetallic and stainless steel material
STANDARDS
• Third party certified to ASME A112.18.1/CSA B-125.1 and all
requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
KINGSLEY™
Two Handle Bidet with Metal Waste
Assembly
Models: T5210, T5210BN, T5210WR,
T5210ORB, T5210AN, T5210AZ
NOTE:
Minimum Diameter Holes for Installation
Diverter Valve - 1”(25mm)
Handle Valves - 1-1/8” (29mm)
Spray Nozzle - 5/8” (16mm)
Lift Rod Escutcheon - 1/2” (13mm)
Rev. 3/07
NOTE:
The 9200 valve cannot be used with
Non Rim Flush Bidet Fixtures
2-7/8"
(73mm)
HANDLE BASE
2-7/16" (62mm)
DIAMETER
2-7/8"
(73mm)
DIVERTING
MECHANISM
HOT
INLET
6" (152mm) MIN.
16" (406mm) MAX.
3" (76mm) MIN.
2-1/2"
(64mm)
CRITICAL
LEVEL
2"
(51mm)
5-1/8"
(130mm)
FLEXIBLE
CONNECTORS
LIFT ROD
COLD
INLET
1-1/4" (32mm) MAX.
DECK THICKNESS
7/8"
(22mm)
MAX.
3/8" DIA.
SUPPLY
TUBE
(53mm)
SPRAY
NOZZLE
2-1/8"
