CRITIC
AL DIMENSIONS
(DO NOT SCALE)
DESCRIPTION
• Plastic construction with a chrome plated, LifeShine
®
polished brass, LifeShine®satine, platinum or glaicer finish
• It is of slip fit design - CC connections
OPERATION
• The diverter is designed to automatically return to the tub
fill position when the valve is shut off
STANDARDS
• Designed and manufactured to comply with the
requirements of: ANSI/ASME A 112.181M and all
applicable requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser
• 5 year warranty if used in commercial installations

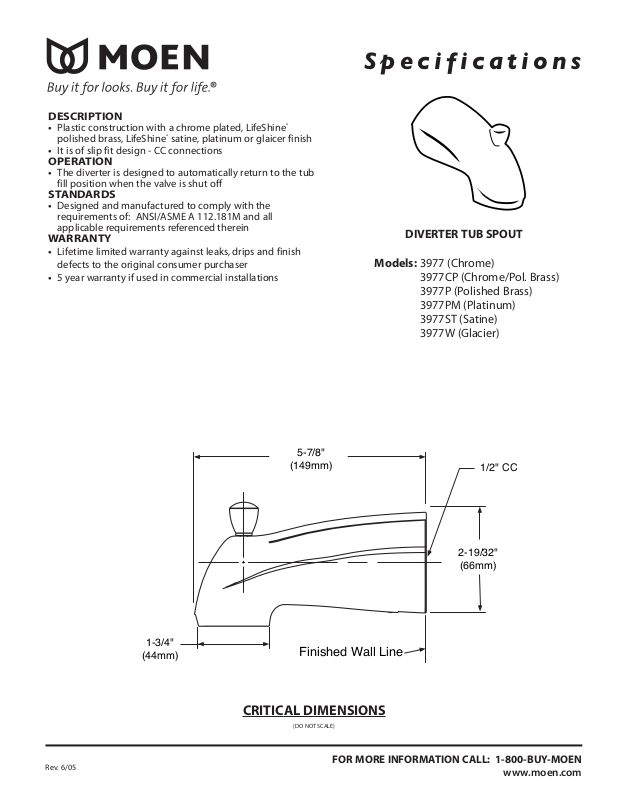

DIVERTER TUB SPOUT
Models: 3977 (Chrome)
3977CP (Chrome/Pol. Brass)
3977P (Polished Brass)
3977PM (Platinum)
3977ST (Satine)
3977W (Glacier)
Rev. 6/05
Specifications
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
1-3/4"
(44mm)
5-7/8"
(149mm)
Finished Wall Line
1/2" CC
2-19/32"
(66mm)
