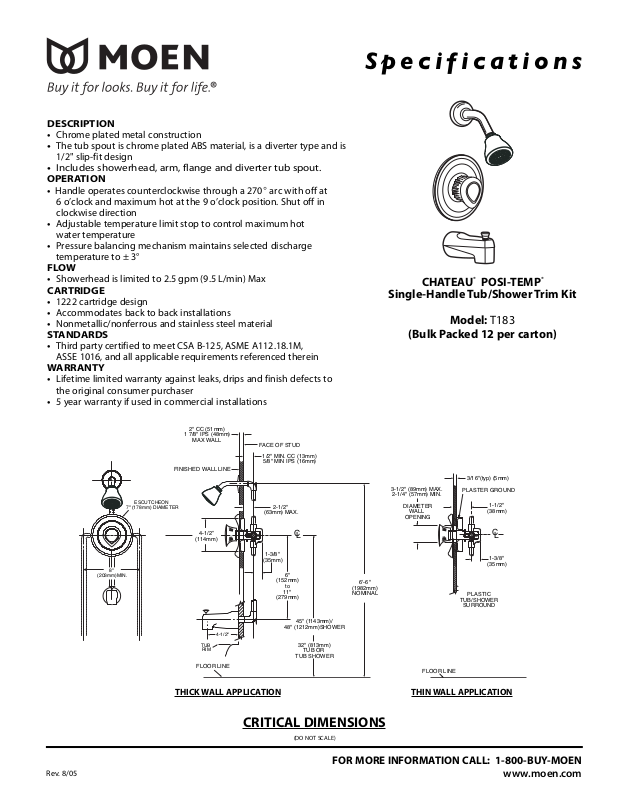

CHATEAU®POSI-TEMP
®
Single-Handle Tub/Shower Trim Kit
Model: T183
(Bulk Packed 12 per carton)
DESCRIPTION
• Chrome plated metal construction
•
The tub spout is chrome plated ABS material, is a diverter type and is
1/2" slip-fit design
• Includes showerhead, arm, flange and diverter tub spout.
OPERATION
• Handle operates counterclockwise through a 270° arc with off at
6 o’clock and maximum hot at the 9 o’clock position. Shut off in
clockwise direction
• Adjustable temperature limit stop to control maximum hot
water temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 3°
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min) Max
CARTRIDGE
• 1222 cartridge design
• Accommodates back to back installations
• Nonmetallic/nonferrous and stainless steel material
STANDARDS
• Third party certified to meet CSA B-125, ASME A112.18.1M,
ASSE 1016, and all applicable requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser
• 5 year warranty if used in commercial installations
Rev. 8/05
Specifications
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
THIN WALL APPLICATION
THICK WALL APPLICATION
8"
(203mm)MIN.
ESCUTCHEON
7" (178mm) DIAMETER
2" CC (51mm)
1 7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
4-1/2”
(114mm)
4-1/2"
TUB
RIM
FLOOR LINE
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN IPS (16mm)
(63mm) MAX.
1-3/8"
(35mm)
2-1/2"
C
L
6"
(152mm)
to
11"
(279mm)
45" (1143mm)/
48" (1212mm)SHOWER
32" (813mm)
TUB OR
TUB SHOWER
6'-6"
(1982mm)
NOMINAL
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
FLOOR LINE
PLASTER GROUND
TUB/SHOWER
SURROUND
3/16"(typ) (5mm)
1-1/2"
(38mm)
C
L
1-3/8"
(35mm)
PLASTIC
