Page 1
SPACER
PROVIDED –
DISCARD IF
MOUNTING
SURFACE IS
MORE THAN
3/4" THICK
1-3/4"
(45mm)
MAX.
2"
(25mm)
1/2" IPS
ADAPTER
2"
(25mm)
3-5/8"
(92mm)
6" (152mm)
OPEN
POSITION
1-3/4"
(45mm)
DECK PLATE
TOP OF
MOUNTING
SURFACE
6" (152mm)
(ESCUTCHEON WIDTH
2"
(51mm)
ESC.
WIDTH
DESCRIPTION
• Chrome plated metal construction
• 1/2" connections
OPERATION
• Pivot action lever style handle
• Temperature controlled through 180˚ degree arc
of handle travel
FLOW
• Aerator is limited to 2.2 gpm max (8.3 L/min)
CARTRIDGE
• 1225 cartridge design
• Nonmetallic/nonferrous and stainless steel material
• Can accommodate reversed piping and back to
back installations
STANDARDS
• Third party certified by CSA to meet CSA B-125,
ASME A112.18.1M and all applicable requirements
referenced therein and complies with the applicable
requirements of ANSI A117.1
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with
the Federal Safe Water Drinking Act
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
®

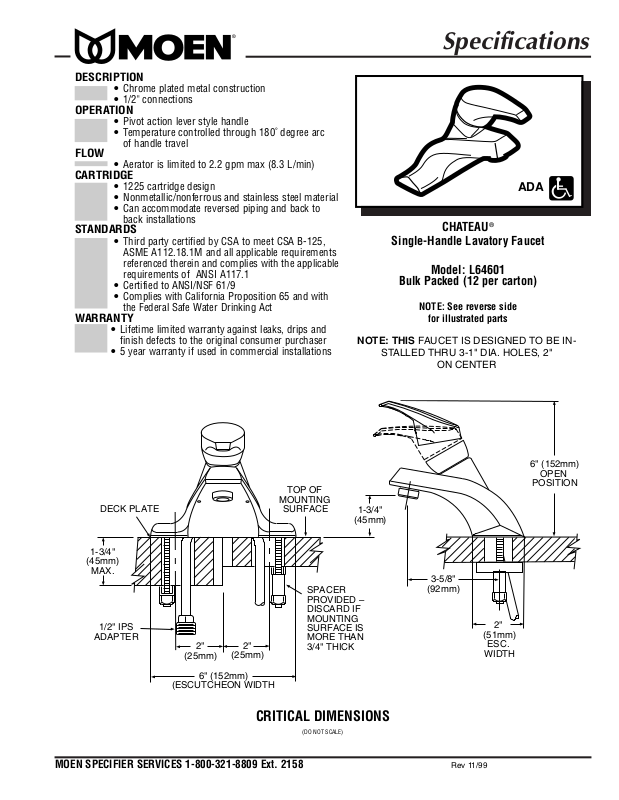

Specifications
ADA
CHATEAU
Single-Handle Lavatory Faucet
Model: L64601
Bulk Packed (12 per carton)
NOTE: See reverse side
for illustrated parts
NOTE: THIS FAUCET IS DESIGNED TO BE IN-
STALLED THRU 3-1" DIA. HOLES, 2"
ON CENTER
®
MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158

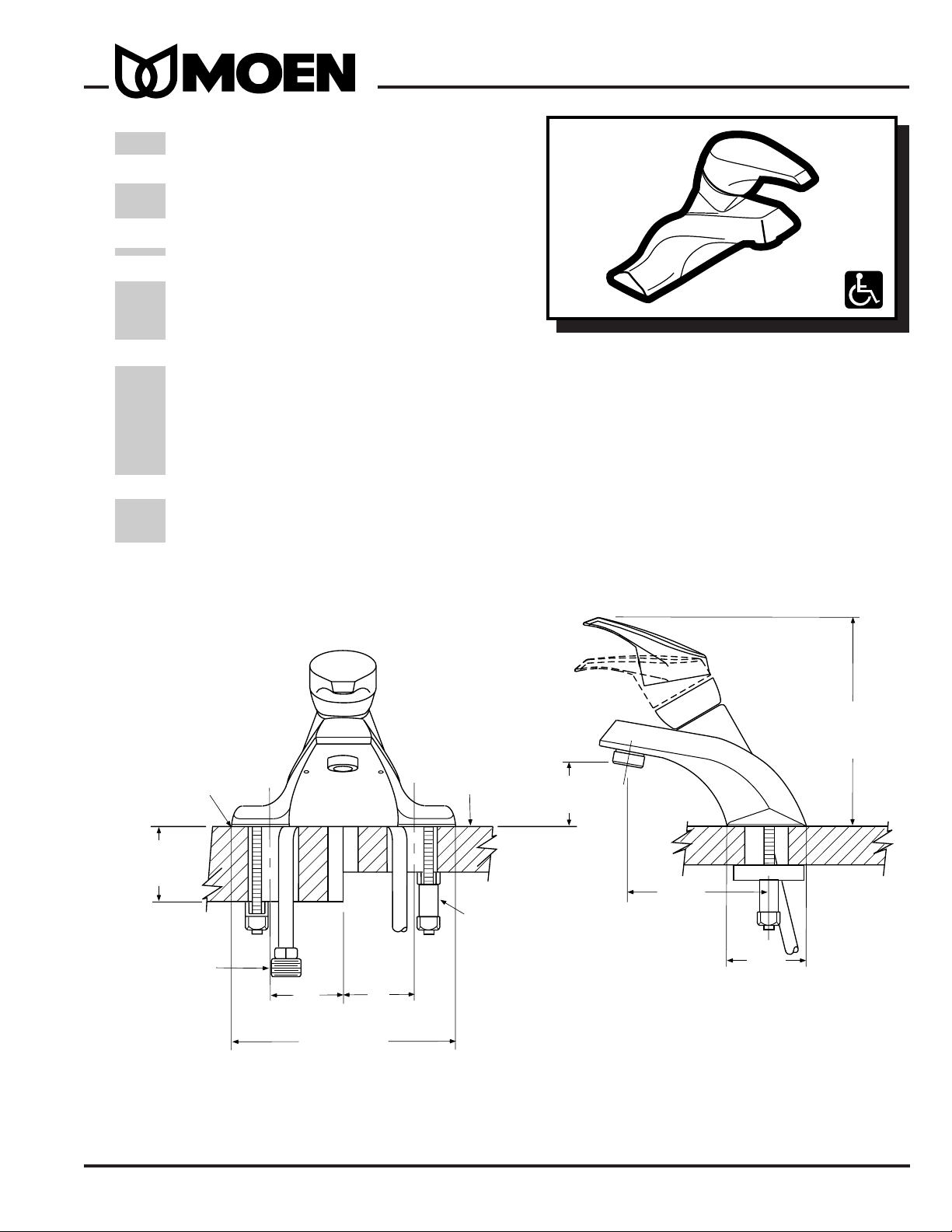

CRITICAL DIMENSIONS
(DO NOT SCALE)
Rev 11/99
