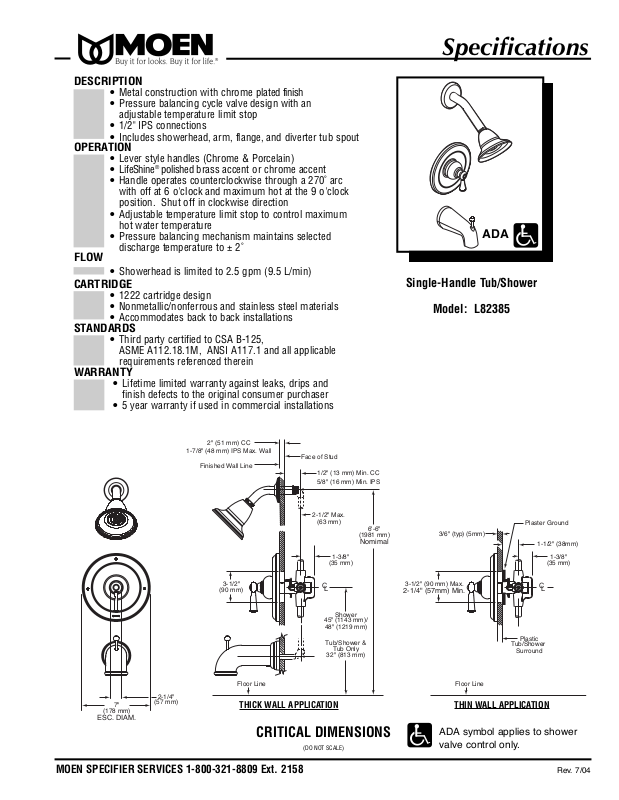

Moen L82385 User Manual

Specifications

CRITICAL DIMENSIONS

(DO NOT SCALE)

MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158

DESCRIPTION

• Metal construction with chrome plated finish

• Pressure balancing cycle valve design with an

adjustable temperature limit stop

• 1/2" IPS connections

• Includes showerhead, arm, flange, and diverter tub spout

OPERATION

• Lever style handles (Chrome & Porcelain)

• LifeShine

®

polished brass accent or chrome accent

• Handle operates counterclockwise through a 270˚ arc
with off at 6 o'clock and maximum hot at the 9 o'clock
position. Shut off in clockwise direction

• Adjustable temperature limit stop to control maximum
hot water temperature

• Pressure balancing mechanism maintains selected
discharge temperature to ± 2˚

FLOW

• Showerhead is limited to 2.5 gpm (9.5 L/min)

CARTRIDGE

• 1222 cartridge design

• Nonmetallic/nonferrous and stainless steel materials

• Accommodates back to back installations

STANDARDS

• Third party certified to CSA B-125,

ASME A112.18.1M, ANSI A117.1 and all applicable
requirements referenced therein

WARRANTY

• Lifetime limited warranty against leaks, drips and

finish defects to the original consumer purchaser

• 5 year warranty if used in commercial installations

7"

(178 mm)

ESC. DIAM.

3-1/2"

(90 mm)

2-1/4"

(57 mm)

6'-6"

(1981 mm)

Nomimal

C

L

Shower

45" (1143 mm)/

48" (1219 mm)

Tub/Shower &

Tub Only

32" (813 mm)

1-3/8"

(35 mm)

2-1/2" Max.

(63 mm)

1/2" (13 mm) Min. CC
5/8" (16 mm) Min. IPS

2" (51 mm) CC

1-7/8" (48 mm) IPS Max. Wall

Face of Stud

Finished Wall Line

Floor Line

3-1/2" (90 mm) Max.

2-1/4" (57mm) Min.

C

L

1-3/8"

(35 mm)

1-1/2" (38mm)

3/6" (typ) (5mm)

Plaster Ground

Floor Line

Plastic

Tub/Shower

Surround

Single-Handle Tub/Shower

Model: L82385

Rev. 7/04

ADA

ADA symbol applies to shower
valve control only.

THIN WALL APPLICATION

THICK WALL APPLICATION

®
