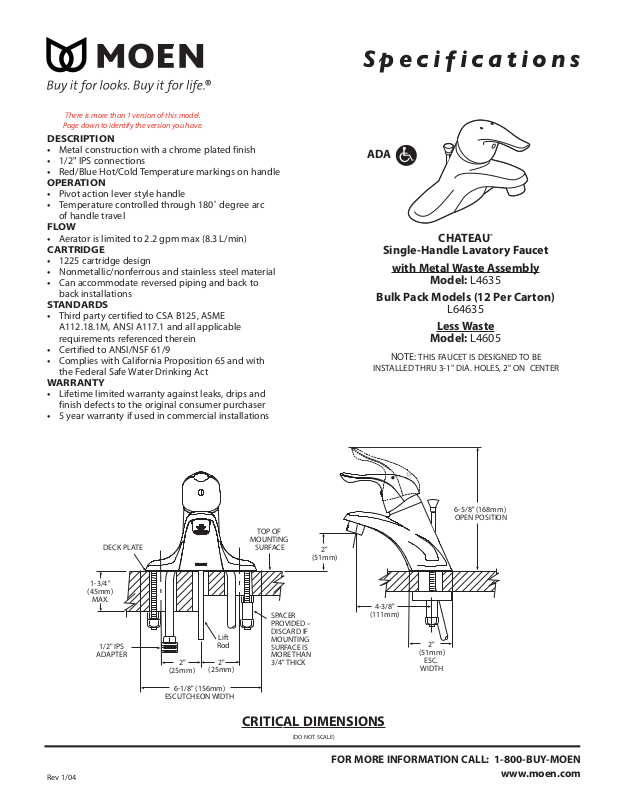

CHATEAU
®
Single-Handle Lavatory Faucet
with Metal
Waste Assembly
Model: L4635
Bulk Pack Models (12 Per Carton)
L64635
L
ess Waste
Model: L4605
DESCRIPTION
• Metal construction with a chrome plated finish
• 1/2" IPS connections
• Red/Blue Hot/Cold Temperature markings on handle
OPERATION
• Pivot action lever style handle
• Temperature controlled through 180˚ degree arc
of handle travel
FLOW
• Aerator is limited to 2.2 gpm max (8.3 L/min)
CARTRIDGE
• 1225 cartridge design
• Nonmetallic/nonferrous and stainless steel material
• Can accommodate reversed piping and back to
back installations
STANDARDS
• Third party certified to CSA B125, ASME
A112.18.1M, ANSI A117.1 and all applicable
requirements referenced therein
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with
the Federal Safe Water Drinking Act
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
ADA
Rev 1/04
There is more than 1 version of this model.
Page down to identify the version you have.
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 3-1" DIA. HOLES, 2" ON CENTER
DECK PLATE
1-3/4"
(45mm)
MAX.
1/2" IPS
ADAPTER
Lift
Rod
2"
(25mm)
6-1/8" (156mm)
ESCUTCHEON WIDTH
2"
(25mm)
TOP OF
MOUNTING
SURFACE
SPACER
PROVIDED –
DISCARD IF
MOUNTING
SURFACE IS
MORE THAN
3/4" THICK
2"
(51mm)
4-3/8"
(111mm)
2"
(51mm)
ESC.
WIDTH
6-5/8" (168mm)
OPEN POSITION
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
CHATEAU
®
Single-Handle Lavatory Faucet
with Metal
Waste Assembly
Models: L4621, L4621CP, L4621P, L4621W
Bulk Pack Models (12 Per Carton)
L64620, L64621P, L64621W
with 50/50
Waste Assembly
Bulk Pack Model (12 Per Carton)
L64621
L
ess Waste
Model: L4600, L4601
Bulk Pack Model (12 Per Carton)
L64601
DESCRIPTION
• Metal construction with a chrome plated,
Chrome/LifeShine®polished brass,
LifeShine®polished brass, or glacier finish
• 1/2" IPS connections
OPERATION
• Pivot action lever style handle
• Temperature controlled through 180˚ degree arc
of handle travel
FLOW
• Aerator is limited to 2.2 gpm max (8.3 L/min)
CARTRIDGE
• 1225 cartridge design
• Nonmetallic/nonferrous and stainless steel material
• Can accommodate reversed piping and back to
back installations
STANDARDS
• Third party certified by CSA to meet CSA B-125,
ASME A112.18.1M and all applicable requirements
referenced therein and complies with the applicable
requirements of ANSI A117.1
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with
the Federal Safe Water Drinking Act
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
ADA
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 3-1" DIA. HOLES, 2" ON CENTER
Rev 6/02
DISCONTINUED
STYLE
DECK PLATE
1-3/4" (45mm)
MAX.
1/2" IPS
ADAPTER
LIFT
ROD
2"
(25mm)
6" (152mm)
ESCUTCHEON WIDTH
2"
(25mm)
TOP OF
MOUNTING
SURFACE
1-3/4"
(45mm)
SPACER PROVIDED –
DISCARD IF MOUNTING
SURFACE IS MORE THAN
3/4" (19mm) THICK
3-5/8"
(92mm)
6" (152mm) OPEN
POSITION
2"
(51mm)
ESC.
WIDTH
