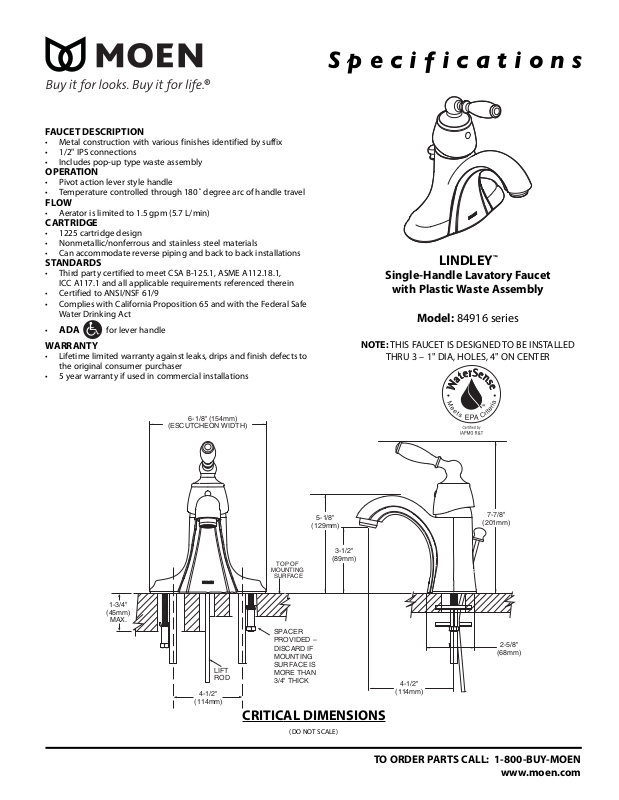

Moen 84916 User Manual

LINDLEY

™

Single-Handle Lavatory Faucet

with Plastic Waste Assembly

Model: 84916 series

NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED

THRU 3 – 1" DIA, HOLES, 4" ON CENTER

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

FAUCET DESCRIPTION

• Metal construction with various finishes identified by suffix

• 1/2" IPS connections

• Includes pop-up type waste assembly

OPERATION

• Pivot action lever style handle

• Temperature controlled through 180˚ degree arc of handle travel

FLOW

• Aerator is limited to 1.5 gpm (5.7 L/min)

CARTRIDGE

• 1225 cartridge design

• Nonmetallic/nonferrous and stainless steel materials

• Can accommodate reverse piping and back to back installations

STANDARDS

• Third party certified to meet CSA B-125.1, ASME A112.18.1,
ICC A117.1 and all applicable requirements referenced therein

• Certified to ANSI/NSF 61/9

• Complies with California Proposition 65 and with the Federal Safe
Water Drinking Act

•

ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser

• 5 year warranty if used in commercial installations

1-3/4"

(45mm)

MAX.

6-1/8" (154mm)

(ESCUTCHEON WIDTH)

LIFT
ROD

4-1/2"

(114mm)

5-1/8"

(129mm)

3-1/2"

TOP OF

MOUNTING

SURFACE

SPACER
PROVIDED –
DISCARD IF
MOUNTING
SURFACE IS
MORE THAN
3/4" THICK

(89mm)

7-7/8"

(201mm)

2-5/8"

(68mm)

4-1/2"

(114mm)
