MONTICELLO

®

4" Lavatory Faucet

MODEL HANDLE TYPE FINISH

84437 Lever Chrome
84437BN Lever Brushed Nickel
84437ORB Lever Oil Rubbed Bronze

Lift Rod Kit

103464 Chrome
103464BN Brushed Nickel
Not Available in Oil Rubbed Bronze

Aerator Kit

3919 Chrome
3919BN Brushed Nickel
3919ORB Oil Rubbed Bronze

Replacement Cartridge

1224

Cartridge Nut (2)

97535

Handle Adapter Kit

100561 Hot & Cold Handle Adapter Kit

Hardware Package

13678

Deck Gasket

123227

Lever Handle Insert

97557 Chrome
97557SL Brushed Nickel
97557ORB Oil Rubbed Bronze

Hub & Elbow Assembly - Hot

100553 Chrome
100553SL Brushed Nickel
100553ORB Oil Rubbed Bronze

Hub & Elbow Assembly - Cold

100552 Chrome
100552SL Brushed Nickel
100552ORB Oil Rubbed Bronze

O-Ring

103460

Pop Up & O-Ring

103459 Chrome
103459BN Brushed Nickel
103459ORB Oil Rubbed Bronze

Drain Seat

103458 Chrome
103458BN Brushed Nickel
103458ORB Oil Rubbed Bronze

Rev. 9/08

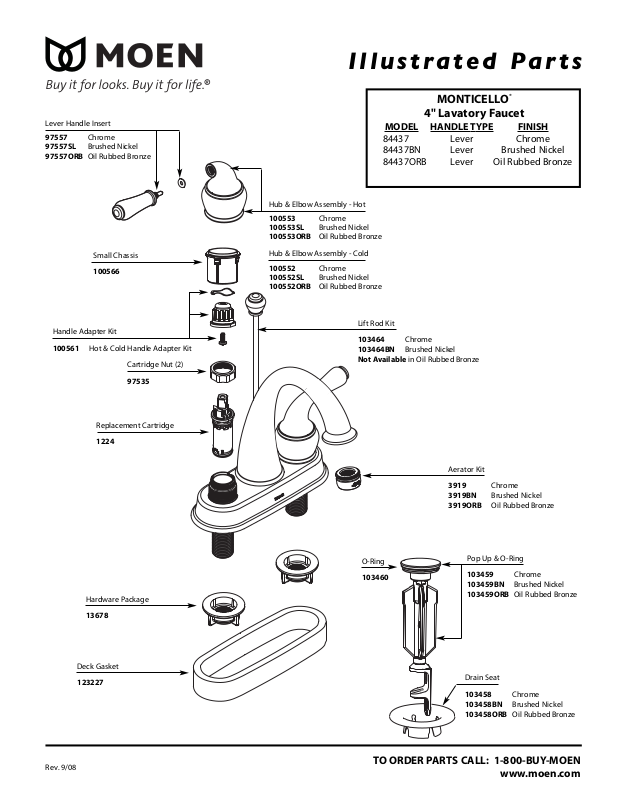

Illustrated Parts

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

Small Chassis

100566
