MODEL TYPE FINISH

82910 Tub/Shower Chrome

82910CBN Tub/Shower Classic Brushed Nickel

82912CBN Shower Only Classic Brushed Nickel

BANBURY

®

Single-Handle Tub/Shower Valve

Cartridge Repair Kit
(Contains grommets
grease pack, and all
necessary O-Rings)

96988

Retainer Clip

96914

Escutcheon Screws

15528 Chrome
163ST (Used for Classic

Brushed Nickel)

Handle Kit

141659 Chrome
141659CBN Classic Brushed Nickel

Escutcheon Kit

100998 Chrome
100998CBN Classic Brushed Nickel

Replacement Cartridge

1222

Stop Tube Kit

96987 Chrome

Shower Arm & Flange

A704 Chrome
A704CBN Classic Brushed Nickel

Temperature
Limit Stop Kit

106479

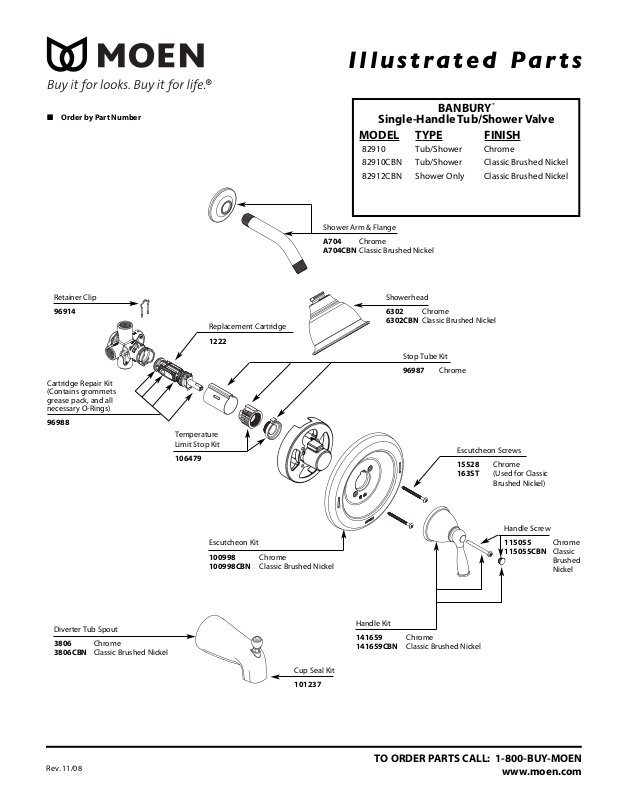

Illustrated Parts

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

Order by Part Number

Showerhead

6302 Chrome
6302CBN Classic Brushed Nickel

Handle Screw

115055 Chrome
115055CBN Classic

Brushed
Nickel

Diverter Tub Spout

3806 Chrome
3806CBN Classic Brushed Nickel

Cup Seal Kit

101237

Rev. 11/08
