DESCRIPTION

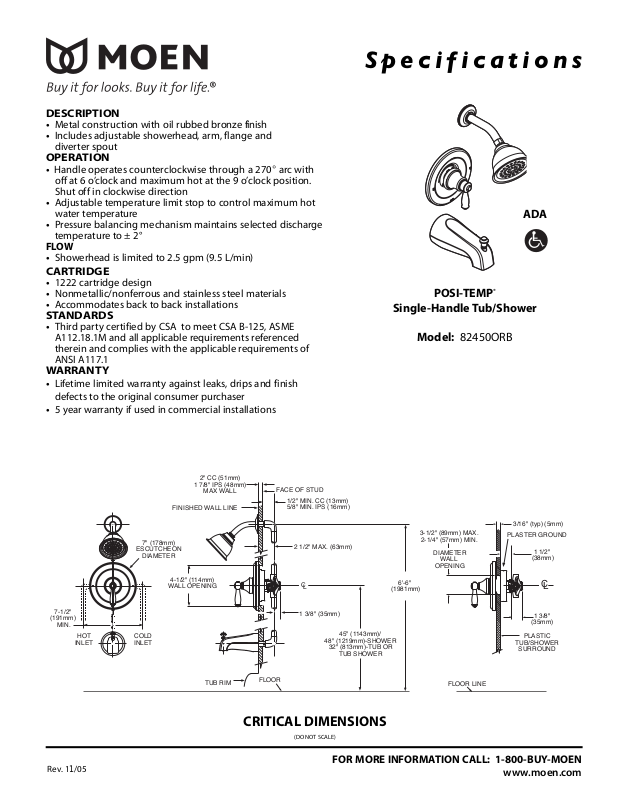

Specifications
• Metal construction with oil rubbed bronze finish
• Includes adjustable showerhead, arm, flange and
diverter spout
OPERATION
• Handle operates counterclockwise through a 270° arc with
off at 6 o’clock and maximum hot at the 9 o’clock position.
Shut off in clockwise direction
• Adjustable temperature limit stop to control maximum hot
water temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 2°
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min)
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified by CSA to meet CSA B-125, ASME
A112.18.1M and all applicable requirements referenced
therein and complies with the applicable requirements of
ANSI A117.1
WARRANTY
• Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
ADA
POSI-TEMP
Single-Handle Tub/Shower
Model: 82450ORB
®
7-1/2"
(191mm)
MIN.
HOT
INLET
Rev. 11/05
FINISHED WALL LINE
7" (178mm)
ESCUTCHEON
DIAMETER
4-1/2" (114mm)
WALL OPENING
COLD
INLET
2" CC (51mm)
1 7/8" IPS (48mm)
MAX WALL
TUB RIM
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
2 1/2" MAX. (63mm)
C
L
1 3/8" (35mm)
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB OR
TUB SHOWER
FLOOR
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
6'-6"
(1981mm)
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
FLOOR LINE
3/16" (typ) (5mm)
PLASTER GROUND
1 1/2"
(38mm)
C
L
1 3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
www.moen.com
