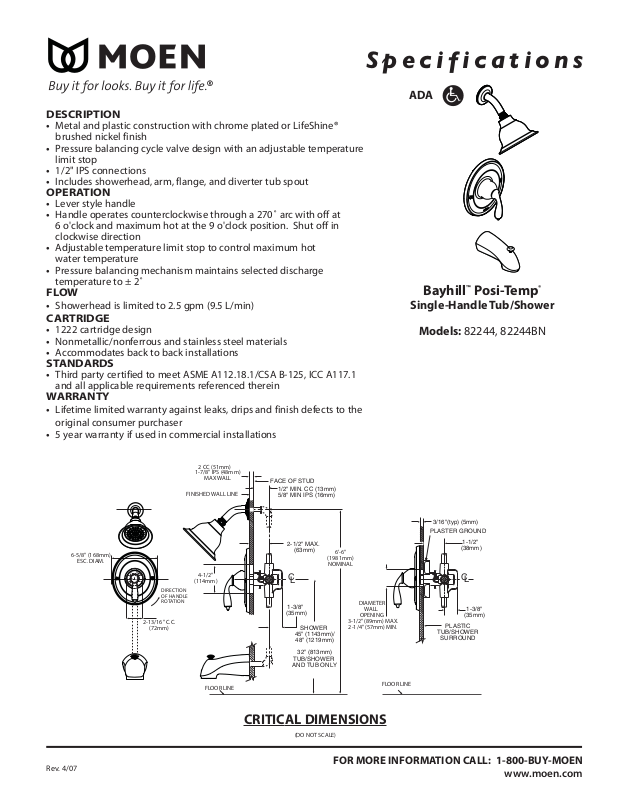

Specifications
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
DESCRIPTION
• Metal and plastic construction with chrome plated or LifeShine®
brushed nickel finish
• Pressure balancing cycle valve design with an adjustable temperature
limit stop
• 1/2" IPS connections
• Includes showerhead, arm, flange, and diverter tub spout
OPERATION
• Lever style handle
• Handle operates counterclockwise through a 270˚ arc with off at
6 o'clock and maximum hot at the 9 o'clock position. Shut off in
clockwise direction
• Adjustable temperature limit stop to control maximum hot
water temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 2˚
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min)
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B-125, ICC A117.1
and all applicable requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to the
original consumer purchaser
• 5 year warranty if used in commercial installations
Bayhill™Posi-Temp
®
Single-Handle Tub/Shower
Models: 82244, 82244BN
ADA
Rev. 4/07
6-5/8" (168mm)
ESC. DIAM.
DIRECTION
OF HANDLE
ROTATION
2-13/16" C.C.
(72mm)
2 CC (51mm)
1-7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
4-1/2"
(114mm)
FLOOR LINE
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN IPS (16mm)
2-1/2" MAX.
(63mm)
C
L
1-3/8"
(35mm)
SHOWER
45" (1143mm)/
48" (1219mm)
32" (813mm)
TUB/SHOWER
AND TUB ONLY
6'-6"
(1981mm)
NOMINAL
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WAL L
OPENING
FLOOR LINE
3/16"(typ) (5mm)
PLASTER GROUND
1-1/2"
(38mm)
C
L
1-3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
