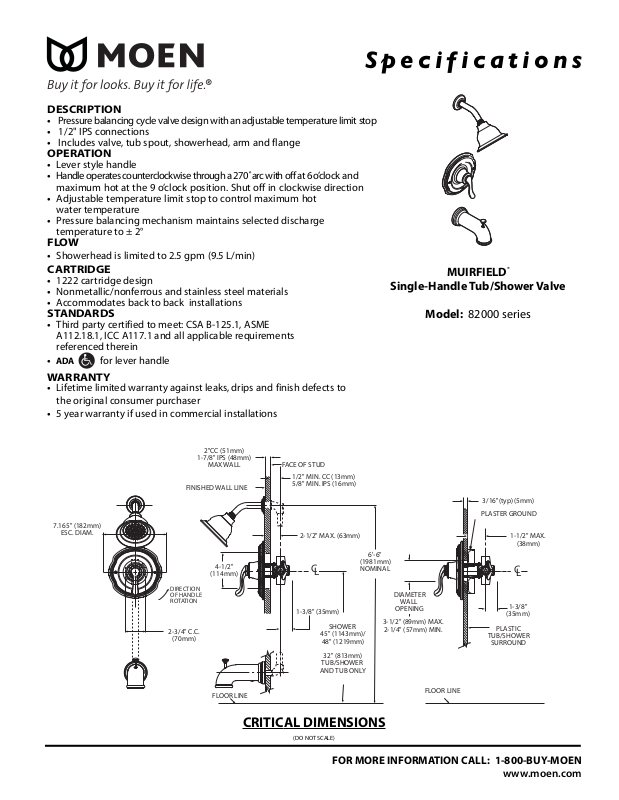

Specifications
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
DESCRIPTION
• Pressure balancing cycle valve design with an adjustable temperature limit stop
• 1/2" IPS connections
• Includes valve, tub spout, showerhead, arm and flange
OPERATION
• Lever style handle
• Handle operates counterclockwise through a 270˚arc with off at 6 o’clock and
maximum hot at the 9 o’clock position. Shut off in clockwise direction
• Adjustable temperature limit stop to control maximum hot
water temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 2°
FLOW
• Showerhead is limited to 2.5 gpm (9.5 L/min)
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet: CSA B-125.1, ASME
A112.18.1, ICC A117.1 and all applicable requirements
referenced therein
• for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser
• 5 year warranty if used in commercial installations
MUIRFIELD
®
Single-Handle Tub/Shower Valve
Model: 82000 series
ADA
7.165" (182mm)
ESC. DIAM.
2"CC (51mm)
1-7/8" IPS (48mm)
FINISHED WALL LINE
DIRECTION
OF HANDLE
ROTATION
2-3/4" C.C.
(70mm)
MAX WALL
4-1/2"
(114mm)
FLOOR LINE
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
2-1/2" MAX. (63mm)
6'-6"
(1981mm)
C
L
1-3/8" (35mm)
SHOWER
45" (1143mm)/
48" (1219mm)
32" (813mm)
TUB/SHOWER
AND TUB ONLY
NOMINAL
DIAMETER
WALL
OPENING
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
FLOOR LINE
3/16"(typ) (5mm)
PLASTER GROUND
1-1/2" MAX.
(38mm)
C
L
1-3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
