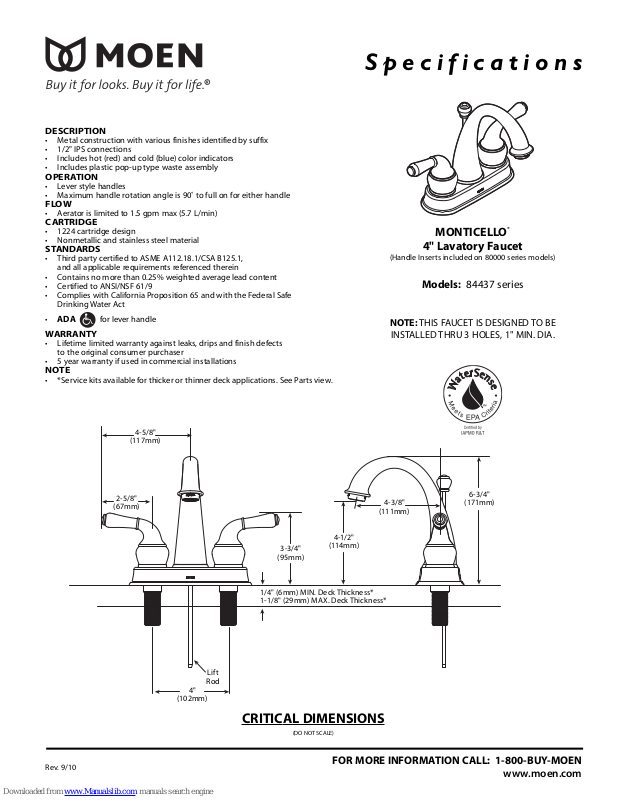

CRITICAL DIMENSIONS
(DO NOT SCALE)
MONTICELLO
®
4" Lavatory Faucet
(Handle Inserts included on 80000 series models)
Models: 84437 series
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 3 HOLES, 1" MIN. DIA.
Rev. 9/10
(
DESCRIPTION
• Metal construction with various finishes identified by suffix
• 1/2" IPS connections
• Includes hot (red) and cold (blue) color indicators
• Includes plastic pop-up type waste assembly
OPERATION
• Lever style handles
• Maximum handle rotation angle is 90˚ to full on for either handle
FLOW
• Aerator is limited to 1.5 gpm max (5.7 L/min)
CARTRIDGE
• 1224 cartridge design
• Nonmetallic and stainless steel material
STANDARDS
• Third party certified to ASME A112.18.1/CSA B125.1,
and all applicable requirements referenced therein
• Contains no more than 0.25% weighted average lead content
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
•
ADA for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
NOTE
• *Service kits available for thicker or thinner deck applications. See Parts view.
Specifications
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
(117mm)
2-5/8"
(67mm)
4-5/8"
4"
102mm)
Lift
Rod
4-1/2"
3-3/4"
(95mm)
1/4" (6mm) MIN. Deck Thickness*
1-1/8" (29mm) MAX. Deck Thickness*
(114mm)
4-3/8"
(111mm)
6-3/4"
(171mm)
