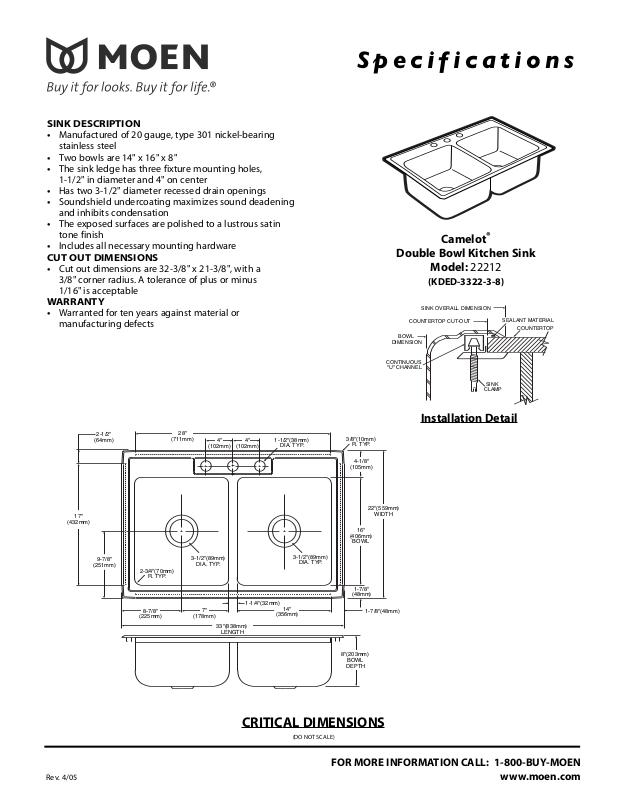

Moen 22212 User Manual
SINK DESCRIPTION
8"(203mm)
BOWL
DEPTH
22"(559mm)
WIDTH
1-7/8"
(48mm)
16"
(406mm)
BOWL
4"
(102mm)
4-1/8"
(105mm)
2-3/4"(70mm)
R. TYP.
1-1/2"(38mm)
DIA. TYP.
8-7/8"
(225mm)
9-7/8"
(251mm)
2
-1/2"
(64mm)
3-1/2"(89mm)
DIA. TYP.
3-1/2"(89mm)
DIA. TYP.
3/8"(10mm)
R. TYP.
1-7/8"(48mm)
14"
(356mm)
1-1/4"(32mm)
7"
(178mm)
28"
(711mm)
4"
(102mm)
33"(838mm)
LENGTH
17"
(432mm)
SINK OVERALL DIMENSION
COUNTERTOP CUT-OUT
BOWL
DIMENSION
CONTINUOUS
"U" CHANNEL
SINK
CLAMP
COUNTERTOP
SEALANT MATERIAL
• Manufactured of 20 gauge, type 301 nickel-bearing
stainless steel
• Two bowls are 14" x 16" x 8"
• The sink ledge has three fixture mounting holes,
1-1/2" in diameter and 4" on center
• Has two 3-1/2" diameter recessed drain openings
• Soundshield undercoating maximizes sound deadening
and inhibits condensation
• The exposed surfaces are polished to a lustrous satin
tone finish
• Includes all necessary mounting hardware
CUT OUT DIMENSIONS
• Cut out dimensions are 32-3/8" x 21-3/8", with a
3/8" corner radius. A tolerance of plus or minus
1/16" is acceptable
WARRANTY
• Warranted for ten years against material or
manufacturing defects
Specifications
Camelot
Double Bowl Kitchen Sink
Model:
(KDED-3322-3-8)
®
22212
Rev. 4/05
(DO NOT SCALE)
FOR MORE INFORMA
CRITICAL DIMENSIONS
Installation Detail
TION C
ALL: 1-800-BUY
w
w
.moen.c
w
-MOEN
