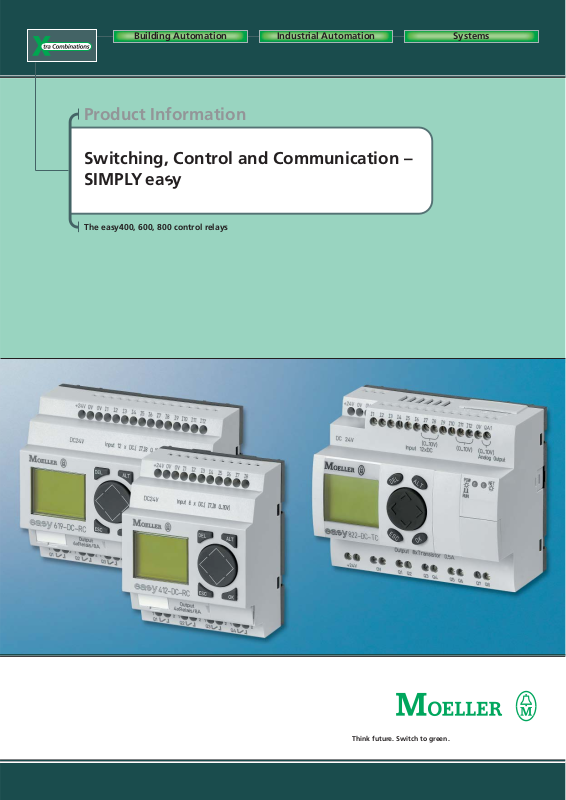

The easy400, 600, 800 control relays

Product Information

Switching, Control and Communication –
SIMPLY

ea y

s

The new control relay, easy800, combines virtually all the performance features of a

PLC with the handling convenience of easy. Together with the easy400 and easy600,

it forms a cohesive system with uniform accessories, software and operation, designed

for intelligent solutions in machine and instrument control or in building services.

The easy Family

Start up and control –
SIMPLY

Rapid commissioning

The indication of where current is
flowing in the circuit, during actual
operation or testing, simplifies and
speeds up commissioning and makes
it more reliable. All the easy devices
have a current flow indicator.

Great space savings

There is space for easy anywhere. The
standard 45 mm front dimension is
equally suitable for use in service
distribution boards in building services
installations, or in control panels on
machines and in industrial control
systems. In each case, the easy replaces
several conventional components and
switching devices in a fraction of their
space requirement.

easy – One for all

The easy series of control relays
offers the user 3 variants in each
case, suitable for a wide range of
applications. There are the AC devices
with potential-free relay outputs, and
the DC devices with the option of relay
or transistor outputs. The voltage
range for the input signals is always
identical with the supply voltage. The
easy relays are fully functional in
temperatures ranging from-25°to55° C.
.

ea y

s

3

The easy400 control relay

Eight inputs, four relay or transistor outputs. In all the
DC variants, there is the option of two analog inputs.
The easy412 has three contacts and one coil for circuit
configuration in each of up to 41 lines of logic.

The easy600 control relay

Twelve inputs, six relay or eight transistor outputs. In all the
DC variants, there is the option of two analog inputs. The
easy600 has three contacts and one coil in series for circuit
configuration in each of up to 121 lines of logic.
The built-in display can show up to eight texts of 48
characters each. For each text, two variables or module
parameters can be included in the display. The user can
thus read texts and values on the display in plain text.

The easy800 control relay

Twelve inputs, six relay or eight transistor outputs. In all the
DC variants, there is the option of four analog inputs and
also of one analogue output. The easy800 has four contacts
and one coil in series for circuit configuration in each of up
to 256 lines of logic.
The built-in display can show up to 32 texts of 64 characters
each. For each text, the user can include several variables or
module parameters in the display at any point. He can thus
read texts and values on the display in plain text.
Counting high-speed signals, measuring frequency or
evaluating incremental encoder readings are no problem
with easy800. Computing, data storage or communication
via the NET network – all simply easy.

Logic links instead of wiring

Circuit diagrams form the basis for all electrical applications.
Conventionally, the resulting circuits are implemented by
wiring of switching and control devices. With the easy
control relay, this is done quite simply using keystrokes or
the convenient easy-soft software at the PC, for making
the logic connections. Input is simply menu guided, and
available in either 5 or 10 languages. This saves mounting
and wiring costs and above all, precious time, making the
easy quite an expert for world markets.

Lighting for shop windows:

• Automatic daylight- and clock-controlled switching of
lighting and external advertising shows products in a
“favourable light”.

• Lighting can be activated in the event of an alarm or at
random.

•Program protection via password.

•Supply and input voltage 100 to 240 V AC.
Direct switching of the load current via relay.
Direct connection of, for example, standard recessed
switches to easy.

Using easy

Showing Your Business

in a Favourable Light

Greenhouses:

• Daylight- and temperature governed control of
skylights, heating, blowers, watering and lighting.

• Recording and processing of up to four analog values
such as temperature, humidity or brightness.

•Processing, comparison, display and output of the
analog values via convenient arithmetical functions
and analog output.

• Setting of required values directly at the device.

•Manual intervention possible at any time via external
switches or the four built-in cursor keys.

Lighting control for buildings:

•Both centralized and decentralized impulse-relay
function switching of lights is possible.

•A real-time controlled Off pulse enables central
disconnection of the lighting for power saving
purposes.

•A basic unit can control up to 12 separate groups of
lighting. Convenience lighting control such as that of
a central light for cleaning, semi-lighting in the stair
well or a pulse for pre-warning of a dark phase can
be configured.

• Suitable for fitting in low-voltage distribution boards
due to 45 mm standard front dimension, and either 4,
6, 8 or 12 times MCB width.

ea y

s

MO-FR

13.03 1
ON 08:40 A
OFF 19:30 +

X 00.00

S 17.13

TRG T1

RES +

A 01 GT +

I1 +580
F1 + 10
I2 + 5000
