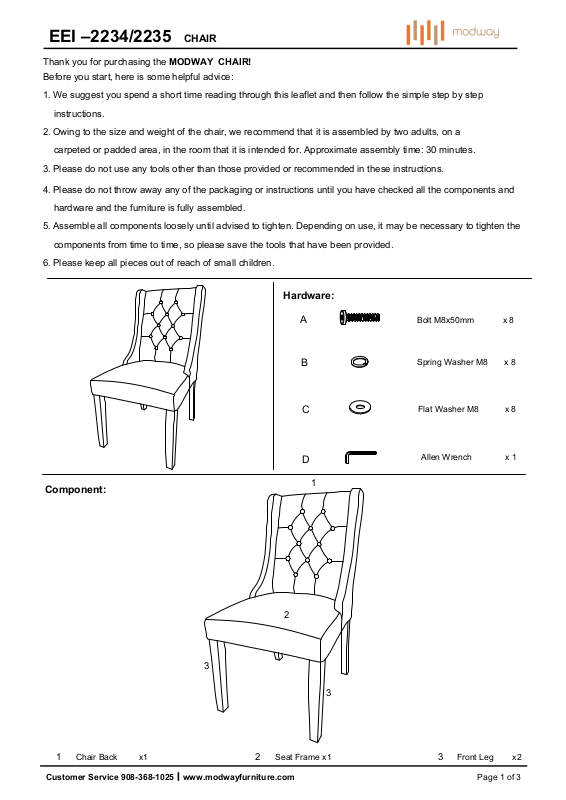

EEI –2234/2235 CHAIR
Thank you for purchasing the MODWAY CHAIR!
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Hardware:
Component:
A
B
C
D
Bolt M8x50mm x 8
Spring Washer M8 x 8
Flat Washer M8 x 8
Allen Wrench x 1
1
2
3
3
1
Chair Back x1
Customer Service 908-368-1025︱www.modwayfurniture.com Page 1 of 3
Seat Frame x1
2
3
Front Leg x2
Page 2
EEI –2234/2235 CHAIR
STEP 1:
Please put Chair Back (1) upside down on a carpeted or padded area.
Then open the Velcro on bottom of the Seat Frame (2), The inside of the Seat Frame(2) will now be visible.
Attach Seat Frame (2) to Chair Back(1) by using 4 pieces of Bolt (A), 4 pieces of Spring Washer (B) and 4 pieces of Flat
Washer (C) as shown.
Do not fully tighten Bolt (A) at this step.
A
B
C
2
1
Ax4 Bx4 Cx4
Hardware & Tool required
STEP 2:
Insert 1 piece of Front Leg (3) into the bottom of Seat Frame (2) as shown.
Attach by 2 pieces of Bolt (A), 2 pieces of Spring Washer (B) and 2 piece of Flat Washer (C) as shown.
Repeat the same steps for Front Leg (3).
Do not fully tighten Bolts (A) for either leg.
3
2
A
B
C
1
3
Ax4 Cx4
Customer Service 908-368-1025︱www.modwayfurniture.com Page 2 of 3
Bx4
Hardware & Tool required
Page 3
EEI –2234/2235 CHAIR
STEP 3:
Carefully turn over the chair.
Please put a heavy object or seat one adult on top of the Seat Frame (2) to pressure the chair for leveling.
Fully tighten all Bolts (A) with Allen Wrench (D).
Recover the Velcro on bottom of Seat Frame (2).
D
Assembly is completed. The chair is ready to use now!
Dx1
Customer Service 908-368-1025︱www.modwayfurniture.com Page 3 of 3
Hardware & Tool required
