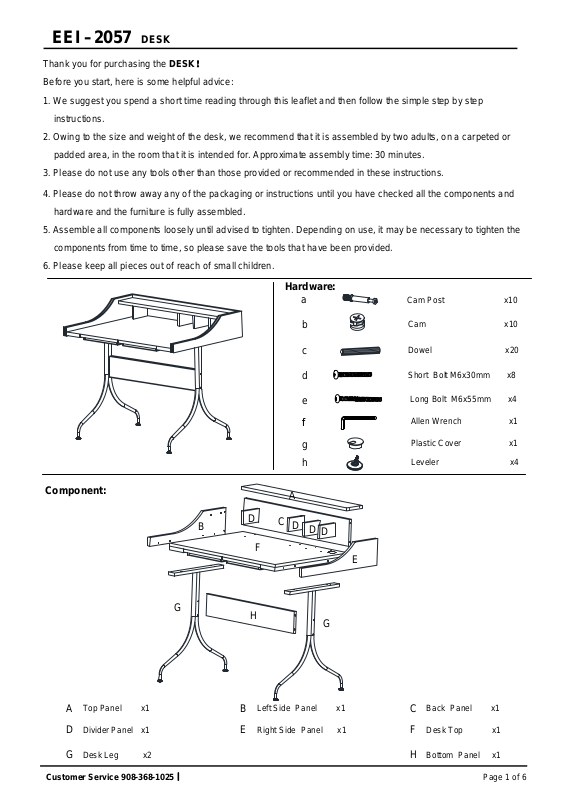

Page 1
EEI –2057 DESK
Thank you for purchasing the DESK！
Before you st
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructio ns.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
art, here is some helpful advice:
Hardware:
a
b
c
Cam Post x10
Cam x10
Dowel x20
Component:
G
B
D
H
F
C
A
D
d
e
f
f
g
h
D
Short Bolt M6x30mm x8
Long Bolt M6x55mm x4
Allen Wrench x1
Plastic Cover x1
Leveler x4
D
E
G
Top Panel x1
A
Divider Panel x1
D
Desk Leg x2
G
Customer Service 908-368-1025︱ Page 1 of 6
Left Side Panel x1
B
Right Side Panel x1
E
Back Panel x1
C
Desk Top x1
F
Bottom Panel x1
H
Page 2
EEI –2057 DESK
HOW TO USE CAN AND CAM POST HARDWARE
1. 2.
Note cam arrow
direction
3.
5.
Note cam arrow
direction
STEP 1:
Insert 5pcs Cam Post (a) into the corresponding holes on the Left Side Panel (B) by using a Phillips Head Screw Driver (not
included) as shown.
Repeat the same steps for the remaining Right Side Panel (E).
4.
Turn cam clockwise
1/2 turn
a
B E
a
a
a
a
ax10
Customer Service 908-368-1025︱ Page 2 of 6
Phillips Head Screwdriver
( not included)
Hardware & Tool required
a
a
a
a
a
Page 3
EEI –2057 DESK
STEP 2:
Insert 4pcs Dowel (c) into the holes on 1pc Divider Panel (D) as shown.
Repeat the same steps for the other remaining 3pcs Divider Panel (D).
Insert 4pcs Dowel (c) into the holes on the Top Panel (A) as shown.
Place the Desk Top (F) and Top Panel (A) to the Divider Panels (D) as shown.
c
c
c
A
D
c
c
F
cx20
STEP 3:
Insert 6pcs Cam (b) into the holes on the bottom of Desk Top (F) as shown.
Insert 1pc Plastic Cover (g) into the top of Desk Top (F) as shown.
Insert 4pcs Cam (b) into the holes on the Back Panel (C) as shown.
c
D
c
c
c
c
D
c
Hardware & Tool required
c
c
D
c
c
c
D
A
b
b
b
b
g
D
D
D
g
b
C
b
b
b
b
b
bx10
Customer Service 908-368-1025︱ Page 3 of 6
gx1
Page 4
EEI –2057 DESK
STEP 4:
Connect the Left Side Panel (B) and Right Side Panel (E) to the assembled Desk Top (F) /Top Panel (A) and Back
Panel (C) as shown.
Use a Phillips Head Screw Driver (not included) to tighten all the Cams (b) clockwise until secure.
B
C
A
D
D
D
D
F
E
Phillips Head Screwdriver
( not included) Hardware & Tool required
STEP 5:
Please put the 2 piece of Desk Leg (G) upside down on a carpeted or padded surface.
Attach 2 pieces of Desk Leg (G) into the Bottom Panel (H) by using 4 pieces of Long Bolts (e) as shown.
Use Allen Wrench (f) to tighten the Long Bolts (e) clockwise until secure.
G
G
H
e
f
e H
e
Front
e
e
G
e
Back
ex4 fx1
Customer Service 908-368-1025︱ Page 4 of 6
Hardware & Tool required
Page 5
EEI –2057 DESK
STEP 6:
Screw the 4 pieces of Leveler (h) to the bottom of Desk Legs (G) clockwise until secure.
hx4
h
G
h
Back
H
h
h
G
Front
STEP 7:
Please put the assembled Desk Top (F) upside down on a carpeted or padded surface.
Put something under the bottom of the assembled Desk Top (F) for balance.
Attach assembled Desk Legs (G) into the bottom of assembled Desk Top (F) by using 8 pieces of Short Bolts (d) as shown.
Use Allen Wrench (f) to tighten the Short Bolts (d) clockwise until secure.
f
Back
G
d
d
F
H
d
G
d
G
d
F
d
Front
dx8 fx1
Customer Service 908-368-1025︱ Page 5 of 6
Hardware & Tool required
Page 6
EEI –2057 DESK

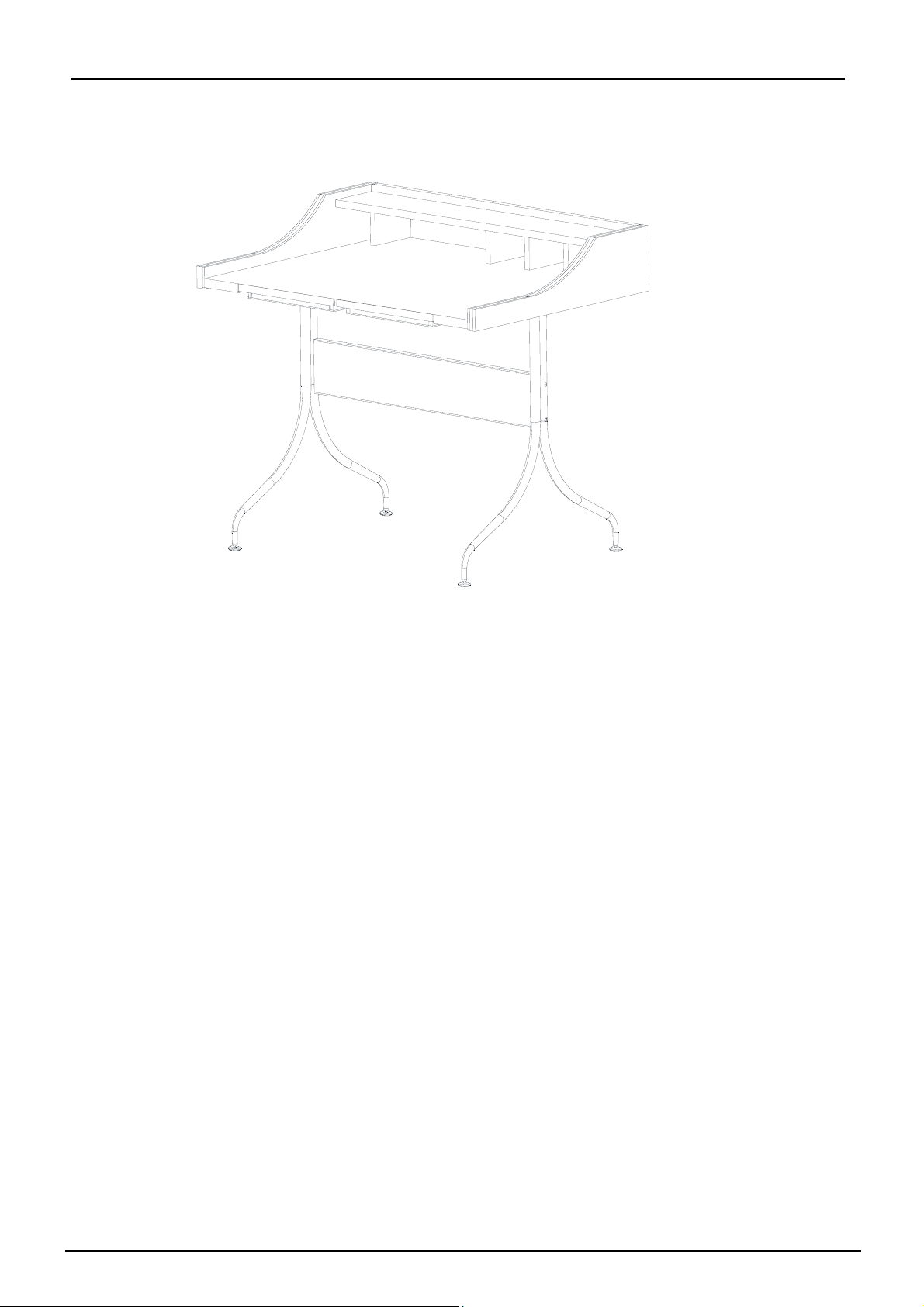

STEP 8:
Carefully turn over the desk.
Assembly is completed. The desk is ready to enjoy now!
Customer Service 908-368-1025︱ Page 6 of 6
