EEI -1322 DESK
Hardware:
Thank you for purchasing the MODWAY DESK！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructio ns.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
a
Cam Post x15
b
Cam x15
c
Screw M4x35mm x8
d
Dowel x18
f
Drawer Guides x2 sets
e
Screw M4x14mm x16
g
Bolt M6x12mm x12
h
Bolt M6x35mm x6
Screw M5.5x55mm x8
Allen Wrench x1
j
Bolt M6x65mm x2
k
m
Plastic cover x1
n
Customer Service 908-368-1025︱www.modwayfurniture.com Page 2 of 8
EEI -1322 DESK
Component:
A
Top Panel x1
B
Left Side Panel x2
A
C
Right Side Panel x1
D
Back Panel x2
E
Bottom Panel x1
F1
Drawer Front x2
F2
Left Drawer Side x2
F3
Right Drawer Side x2
F4
Drawer Back x2
F5
Drawer Bottom x2
G
Leg x2
H
Center Rail x1
J
Support Rail x2
B C
B
C
E
D
F1
F1
G
G
H
J
J
F2
F3
F2
F4
F5
F3
F4
F5
Customer Service 908-368-1025︱www.modwayfurniture.com Page 3 of 8
EEI -1322 DESK
HOW TO USE CAN AND CAM POST HARDWARE
STEP 1:
1. 2.
3.
4.
Note cam arrow
direction
Note cam arrow
direction
Turn cam clockwise
1/2 turn
5.
Attach one set of Drawer Guide (f) to 1pc Left Side Panel (B) and 1pc Right Side Panel (C) by using 4pcs Screw (e) as shown.
Use Phillips Head Screwdriver (not included) to tighten the Screws (e) clockwise until secure.
Repeat the same steps for the other Left Side Panel (B) and Right Side Panel (C).
ex8 fx2
Phillips Head Screwdriver
( not included)
Hardware & Tools required
B
C
f
f
e
e
e
e
e
Customer Service 908-368-1025︱www.modwayfurniture.com Page 4 of 8
EEI -1322 DESK
STEP 2:
STEP 3:
Insert 11pcs Cam Post (a) into the corresponding holes on the bottom of Top Panels (A) as shown.
Use Phillips Head Screwdriver (not included) to tighten the Cam Posts (a) clockwise until secure.
Insert 8pcs Dowel (d) into the corresponding holes on the bottom Top Panels (A) as shown.
ax11 dx8
Phillips Head Screwdriver
( not included) Hardware & Tools required
Hardware & Tools required
Place 1pc Side Drawer Front (F1),1pc Side Drawer Back (F4),1pc Left Drawer Side (F3), 1pc Right Drawer Side (F4)
and 1pc Side Drawer Bottom (F5) together as shown.
Attach them by 2pcs Cam Post (a), 2pcs Cam (b), 4pcs Screw (c), tighten the Screws (c) and Cam (b)
Fully tighten Cams (b), Screws (c), Pull Screws (d) with Phillips Head Screw Driver (not included).
Repeat the same steps and hardware for the other Side Drawer .
ax4 bx4 cx8
Phillips Head Screwdriver
( not included)
F5
F1
F2
F3
F4
a
a
b
b
c
c
c
c
A
a
a
a
a
a
a
a
a
a
a
d
d
d
d
d
d
d
d
Customer Service 908-368-1025︱www.modwayfurniture.com Page 5 of 8
EEI -1322 DESK
dx8
Phillips Head Screwdriver
( not included)
bx3
STEP 4:
STEP 5:

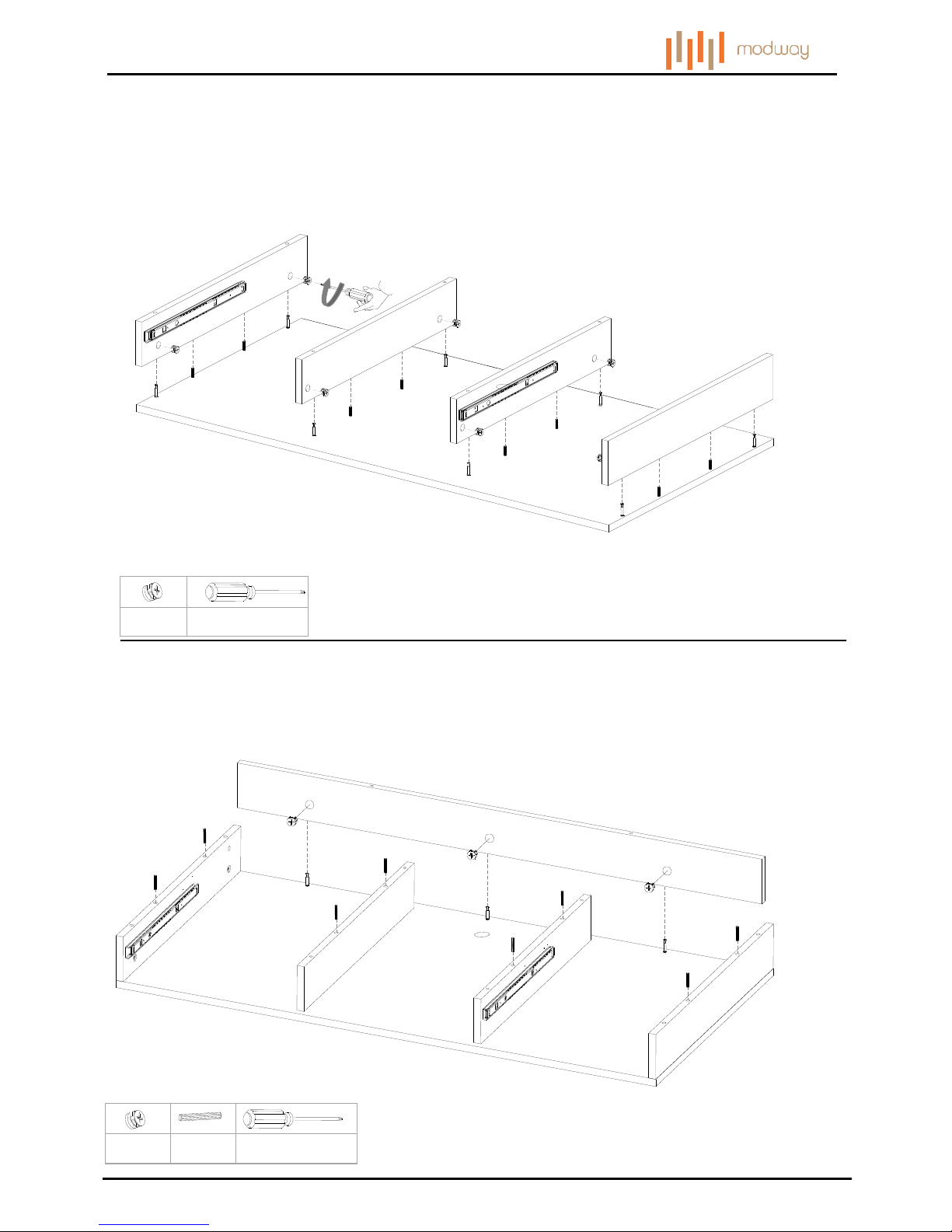

Please put the Top Panel (A)) upside down on a carpeted or padded surface.
Place the Left Side Panels (B) and Right Side Panel (C) to the Top Panel (A) as shown.
Attach them by using 8pcs Cam (b).
Use Phillips Head Screwdriver (not included) to tighten the Cams (b) clockwise until secure.
Place the Back Panel (G) to the Top Panel (A) by using 3pcs Cam (b) as shown.
Insert 8pcs Dowel (d) into the corresponding holes on the Left Side Panels (C) and Right Side Panels (C).
Hardware & Tools required
Hardware & Tools required
bx8
Phillips Head Screwdriver
( not included)
A
B
C
B
C
b
b
b
b
b
b
A
D
B
C
B
C
b
b
b
d
d
d
d
d
d
d
d
Customer Service 908-368-1025︱www.modwayfurniture.com Page 6 of 8
EEI -1322 DESK
STEP 6:
STEP 7:
Place the Bottom Panel (B) to the assembled Left Side Panels (B), Right Side Panels (C) and Back Panel (D) as shown.
Attach them by using 12pcs Bolt (k).
Use Allen Wrench (n) to tighten the Bolts (k) clockwise until secure.
Place the Legs (G) and Center Rail (H) upside down on a carpeted or padded surface.
Connect them by using 2pcs Bolt (j).
Attach the 2pcs Support Rail (G) to the assembled Legs (G) and Top Rail (H) by using 2pcs Bolt (e) and 2pcs Bolt (h)
as shown.
Use Allen Wrench (n) to tighten all the Bolts (e&j&h) clockwise until secure.
Hardware & Tools required
Hardware & Tools required
kx8 nx1
A
E
B
C
C
B
D
k
k
k
k
k
k
k
k
n
ex2 nx1
hx2
jx2
G
G
H
J
J
e
n
e
j
j
n
h
h
Customer Service 908-368-1025︱www.modwayfurniture.com Page 7 of 8
EEI -1322 DESK
STEP 8:
STEP 9:

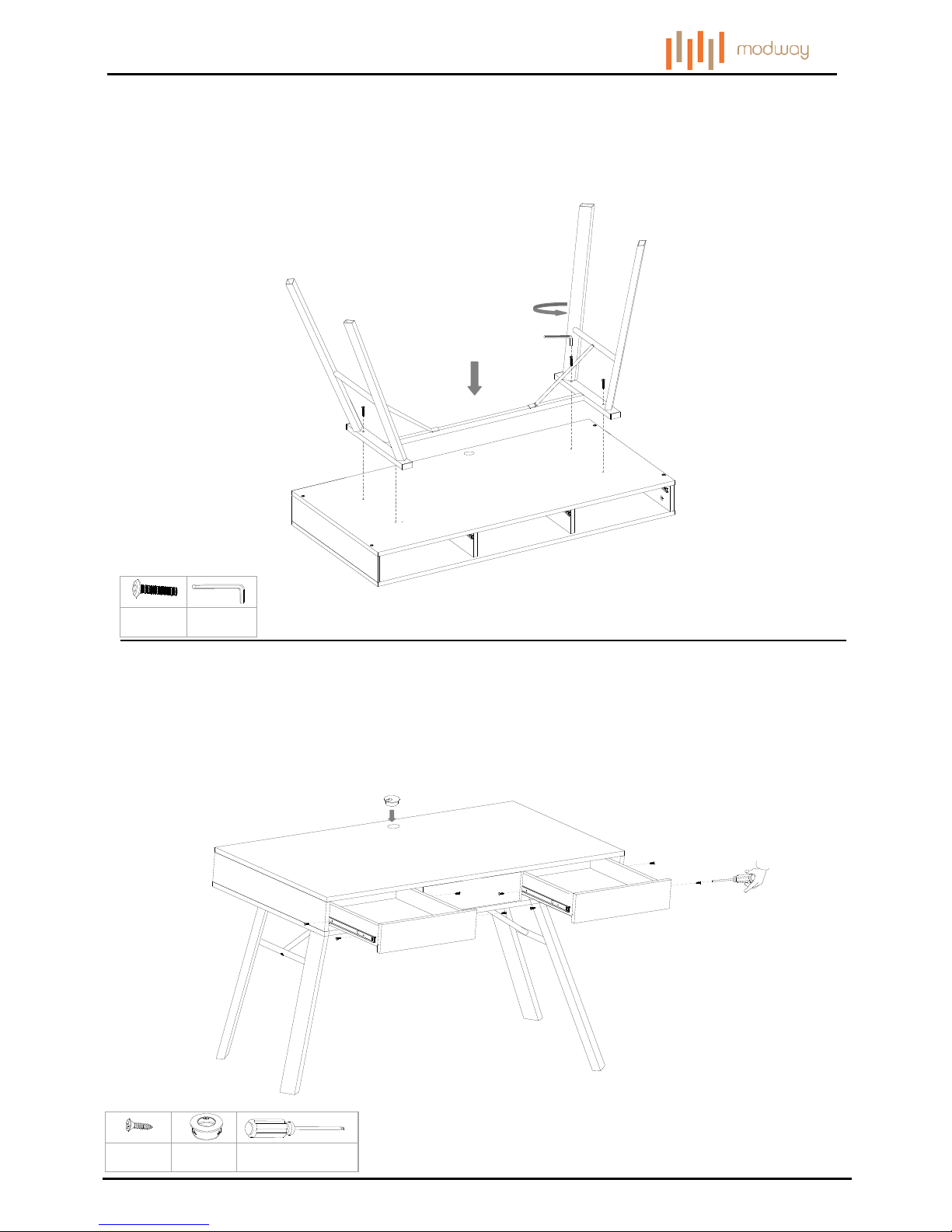

Place the assembled Legs (G) to the bottom of Bottom Panel (E) as shown.
Attach them by using 4pcs Bolt (h).
Use Allen Wrench (n) to tighten the Bolts (h) clockwise until secure.
Place the assembled Drawer to the desk as shown.
Connect them by using 8pcs Screw (e).
Use Phillips Head Screwdriver (not included) to tighten the Screws (e) clockwise until secure.
Insert the Plastic Cover (m) into the holes on the Top Panel (A) as shown.
Hardware & Tools required
hx4 qx1
Hardware & Tools required
G
G
E
h
h
h
n
m
A
e
e
e
e
e
e
e
e
E1
E1
ex8 mx1
Phillips Head Screwdriver
( not included)
Customer Service 908-368-1025︱www.modwayfurniture.com Page 8 of 8
EEI -1322 DESK
STEP 10:

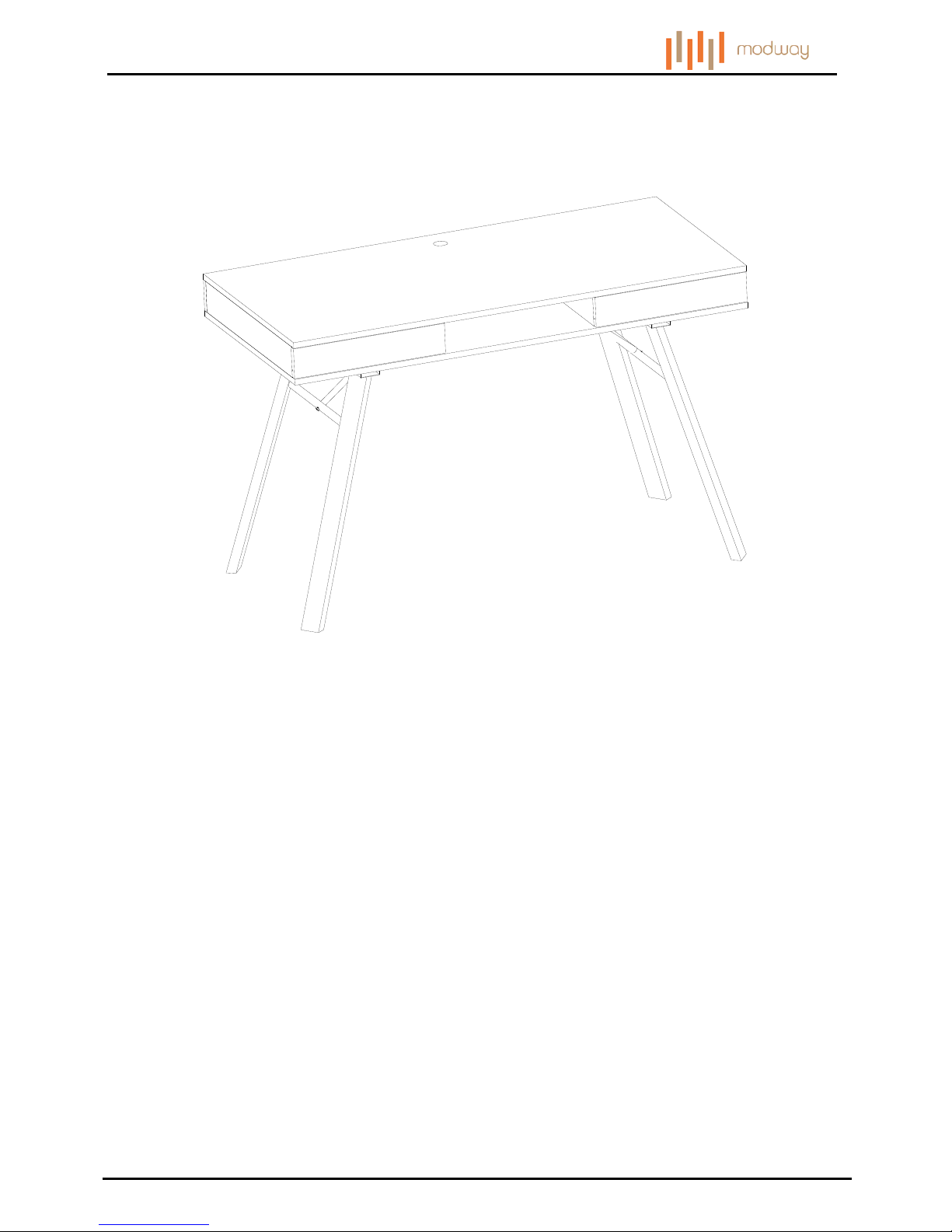

Place the desk to where you desired.
Assembly is completed. The desk is ready to enjoy now!
