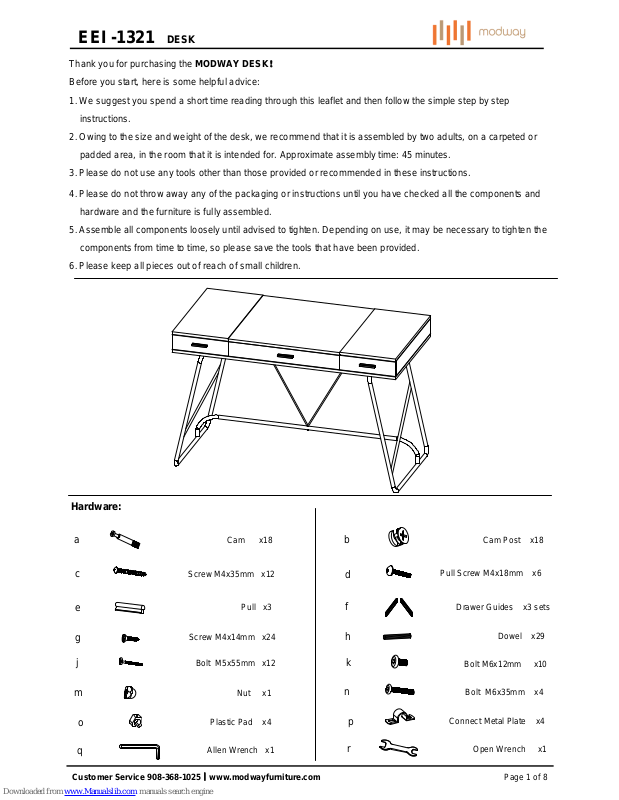

EEI -1321 DESK
Hardware:
Thank you for purchasing the MODWAY DESK！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructio ns.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
a
Cam x18
b
Cam Post x18
c
Screw M4x35mm x12
d
Pull Screw M4x18mm x6
e
Pull x3
f
Drawer Guides x3 sets
g
Screw M4x14mm x24
h
Dowel x29
j
Bolt M5x55mm x12 k
Bolt M6x12mm x10
m
Nut x1
n
Bolt M6x35mm x4
o
Plastic Pad x4
p
Connect Metal Plate x4
q
Allen Wrench x1
r
Open Wrench x1
Customer Service 908-368-1025︱www.modwayfurniture.com Page 2 of 8
EEI -1321 DESK
Component:
A1
Center Top Panel x1
A2
Side Top Panel x2
A1
A2
A2
B
C
D
E
E
F F
F
G
H
J
K
L
M
N5
N2
N1
N3
N4
N4
N1
N2
N5
N3
L1
L5
L2
N4
N3
B
Bottom Panel x1
C
Left Side Panel x2
D
Right Side Panel x1
E
Left Divide Panel x2
F
Right Divide Panel x2
G
Back Panel x1
H
Left Side Leg x1
J
Right Side Leg x1
K
Top Rail x1
L
Support Rail x1
M
Bottom Rail x1
N1
Side Drawer Front x2
N2
Side Drawer Back x2
N3
Drawer Left Side x3
N4
Drawer Right side x3
N5
Side Drawer Bottom x2
L1
Center Drawer Front x1
L2
Center Drawer Back x1
L5
Center Drawer Bottom x1
Customer Service 908-368-1025︱www.modwayfurniture.com Page 3 of 8
EEI -1321 DESK
HOW TO USE CAN AND CAM POST HARDWARE
STEP 1:
1. 2.
3.
4.
Note cam arrow
direction
Note cam arrow
direction
Turn cam clockwise
1/2 turn
5.
Place 1pc Side Drawer Front (N1),1pc Side Drawer Back,1pc Left Drawer Side (N3), 1pc Right Drawer Side (N4) and 1pc
Side Drawer Bottom (N5) together as shown.
Attach them by 2pcs Cam Post (a), 2pcs Cam (b), 4pcs Screw (c), tighten the Screws (c) and Cam (b)
Attach 1pc Pull (e) to the Side Drawer Front (N1) by using 2pcs Pull Screw (d).
Fully tighten Cams (b), Screws (c), Pull Screws (d) with Phillips Head Screw Driver (not included).
Repeat the same steps and hardware for the other Side Drawer and Centre Drawer as shown.
N5
N3
N2
N1
N4
a
a
b
c
c
d
e
N3
N4
c
c
b
b
d
e
L1
L2
L5
ax6 bx6 cx12
dx6
ex3
Phillips Head Screwdriver
( not included)
Hardware & Tools required
c
a
a
Customer Service 908-368-1025︱www.modwayfurniture.com Page 4 of 8
EEI -1321 DESK
STEP 2:
STEP 3:
Place the Side Panels (C&D), Divide Panels (E&F) upside down on a carpeted or padded surface.
Attach the 3 sets Drawer Guides (f) to the Side Panels (C&D) and Divide Panels (E&F) by using 12pcs Screw (g) as shown.
Use Phillips Head Screwdriver (not included) to tighten the Screws (g) clockwise until secure.
Insert 12pcs Cam Post (a) into the corresponding holes on the Top Panels (A1&A2) as shown.
Insert 14pcs Dowel (h) into the corresponding holes on the Top Panels (A1&A2) as shown.
ax12 hx14
Phillips Head Screwdriver
( not included) Hardware & Tools required
D
f
F
C
A2
F E
g
g
g
g
g
g
g
g
g
g
Hardware & Tools required
fx3 gx12
Phillips Head Screwdriver
( not included)
A1
f
f
h
h
f
f
h
h
f
f
f
f
h
h
h
h
h
h
E
Customer Service 908-368-1025︱www.modwayfurniture.com Page 5 of 8
EEI -1321 DESK
hx15
Phillips Head Screwdriver
( not included)
STEP 4:
STEP 5:
Please put the Top Panels(A1&A2)) upside down on a carpeted or padded surface.
Place the Side Panels (C&D), Divide Panels (E&F) to the Top Panels (A1&A2) as shown.
Attach them by using 12pcs Cam (b).
Use Phillips Head Screwdriver (not included) to tighten the Cams (b) clockwise until secure.
Place the Back Panel (G) to the Top Panels (A1&A2) as shown.
Insert 15pcs Dowel (h) into the corresponding holes on the Side Panel (C&D), Divide Panels (E&F) and Back Panel (G).
Hardware & Tools required
Hardware & Tools required
bx12
Phillips Head Screwdriver
( not included)
A1
h
A2
A2
E
E
F
F
G
h
h
h
h
h
h
h h
h
h
h
h
h
A1
A2
A1
D
C
F
E
E
F
b
b
b
b
b
b
b
b
b
b
b
b
b
a
a
a
a
a
a
a
a
h
h
h
h
h
h
h
h
h
h
h
Customer Service 908-368-1025︱www.modwayfurniture.com Page 6 of 8
EEI -1321 DESK
STEP 6:
STEP 7:
Please put Assembled Top Panel(A1&A2) upside down on a carpeted or padded surface.
Place the Bottom Panel (B) to the assembled Side Panels (C&D), Divide Panels (E&F) and Back Panel (G) as shown.
Attach them by using 12pcs Bolt (j).
Use Allen Wrench (q) to tighten the Bolts (j) clockwise until secure.
Pull out the 3 sets metal drawer guides of Drawer Guides (f).
Attach the Side Drawers and Center Drawer to the Drawer Guides (f) by using 12pcs Screws (g).
Use Phillips Head Screw Driver (not included) to tighten the Screws (g) clockwise until secure.
gx12
Phillips Head Screwdriver
( not included)
Hardware & Tools required
A1
Hardware & Tools required
jx12 qx1
C
j
g
g
A2
A1
A2
N1
L1
N1
A2
A2
G
B
j
j
j
j
j
j
j
j
q
C
D
E F
F
E
Customer Service 908-368-1025︱www.modwayfurniture.com Page 7 of 8
EEI -1321 DESK
STEP 8:
STEP 9:
Place the Top Rail (K), Bottom Rail (M) and Support Rail (L) as shown.
Attach the Support Rail (L) to the Top Rail (K) by using 4pcs Bolt (h).
Use Allen Wrench (q) to tighten the Bolts (k) clockwise until secure.
Attach the Support Rail (L) to the Bottom Rail (M) by using 1pc Nut (m) as shown.
Use Open Wrench (r) to tighten the Nut (m) clockwise until secure.
Place the assembled Top Rail (K) and Bottom Rail (M) as shown.
Attach the Left Side Leg (H) and Right Side leg (J) to the assembled Top Rail (K) and Bottom Rail (M) by using 4pcs Bolt (h).
Use Allen Wrench (q) to tighten the Bolts (n) clockwise until secure.
Lock 4pc Plastic Pad (h) to the Left Side Leg (H) and Right Side leg (J) as shown.
Hardware & Tools required
kx2 mx1 qx1
rx1
Hardware & Tools required
nx4 hx4 qx1
q
J
H
K
L
M
h
h
h
h
h
H
n
n
n
n
n
J
K
k
L
M
k
m
m
r
k
q
Customer Service 908-368-1025︱www.modwayfurniture.com Page 8 of 8
EEI -1321 DESK
STEP 10:
Please put the assembled desk’s top upside down on a carpeted or padded surface as shown .
Attach assembled Left Side Leg (H) and Right Side Leg (J) into the bottom of Bottom Panel (B) by using 4pcs Connect Metal
Plat (p) and 8pcs Blot (k).
Use Allen Wrench (q) to tighten the Bolts (k) clockwise until secure.
B
Hardware & Tools required
kx8 px4 qx1
STEP 11:
Carefully turn over the desk.
Assembly is completed. The desk is ready to enjoy now!
k
H
J
k
k
k
k
J
k
p
p
p
p
p
q
