Page 1
MONITOR SPEAKER
Quick
Guide
Setup Manual
AT-24
Black Matte/
Cream Matte
PROFESSIONAL
AT-24
Page 2
Pro-6m Monitor Speaker
INTRODUCTION:
Thank you for your choice in purchasing our Pro Loudspeakers. The AT-24 is the very
first Pro Monitor speaker designed by MODVO, a manufacturer that specialize in building compact loudspeakers.
The AT-24 speaker adds professional sound and quality at an affordable price. This Pro
monitor speaker adds clean and detailed sound that is not heard of in a speaker this size
and price.
PREPARING THE SPEAKERS:
Please read this entire manual before making any connections. Follow the steps below.
Note:
1. Before you hook-up your speakers, make sure your receiver/amplifier is powered off.
Once your amplifier is off, you can begin hooking up you speakers to the amp.

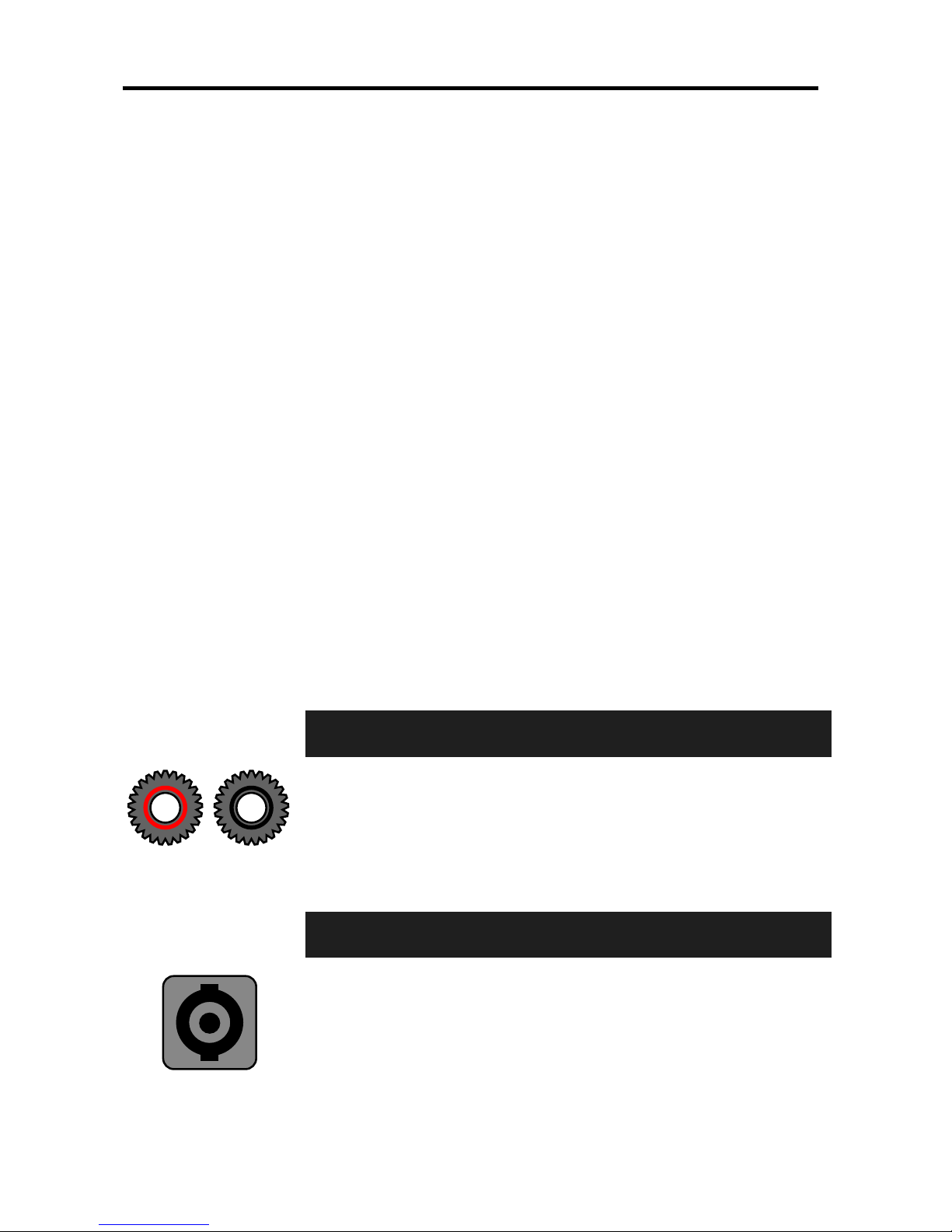

There are 2 types of speakers connectors on the back of the AT-24 speaker, Speakon and
Binding Post Terminals. The binding post terminals are design for home audio amplifiers and receivers. The speakon terminal is design to be used for Pro Audio equipment,
such as amplifiers and pro-style speakers.
SPEAKER HOOKUP 1
SPEAKER HOOKUP 2
Binding Post
Terminals
Speakon
Terminal
Speaker hook up 1 using the binding post terminals.
Speaker hook up 2 using the Speakon connector.
Page 3
L R
Reciever / Amp

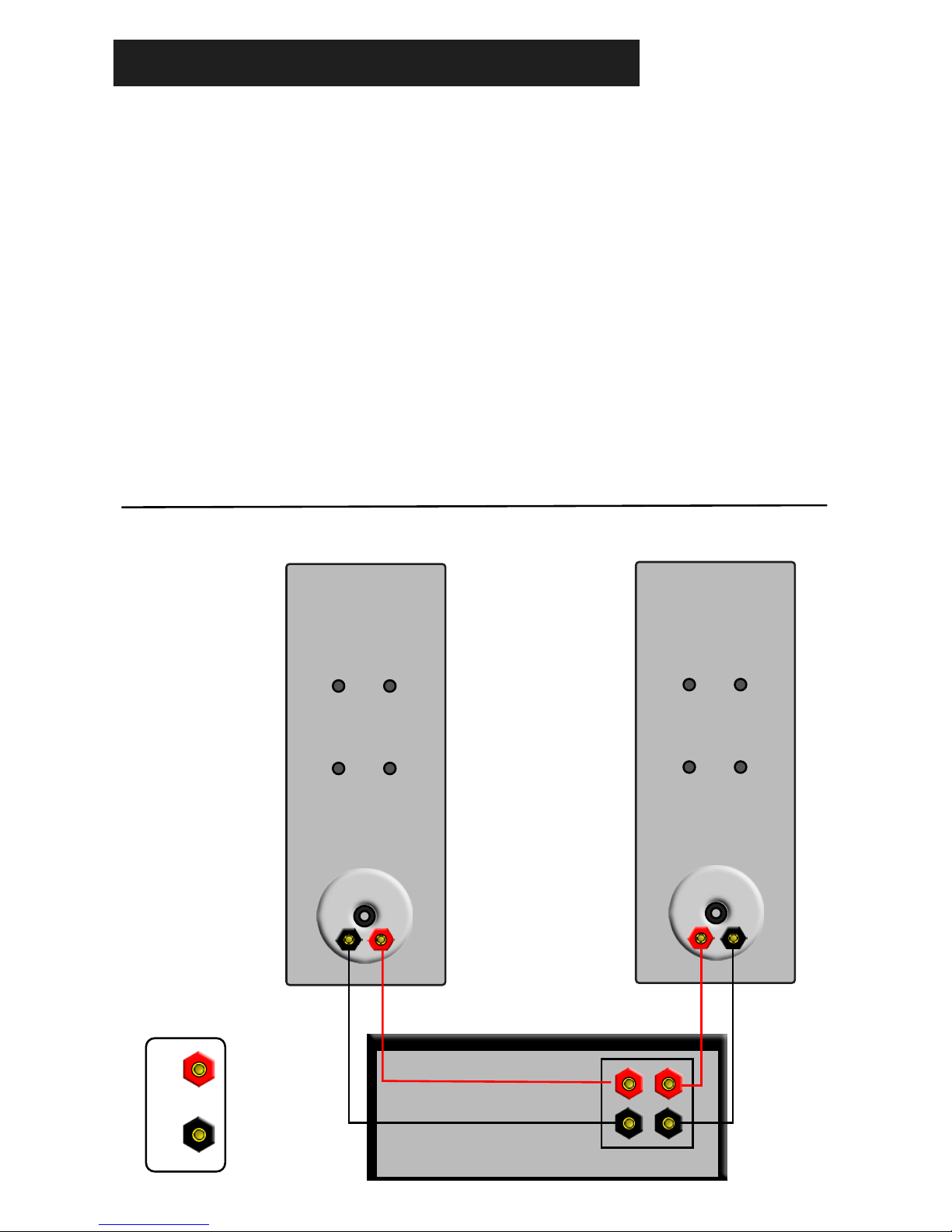

Speaker Hookup 1
Red is
positive
And black
Is negative
+
_
Please read the steps below before making any connections. Follow the steps below.
1. Before you hook-up your speakers, make sure your receiver/amplifier is powered
off. Once your amplifier is off, you can begin hooking up you speakers to the amp.
There are two terminals on the rear of each satellite speaker, one red positive (+) and the
other black negative (-). The positive terminal of you speaker should be connected to the
positive lead of your amplifier / receiver and the negative terminal to the negative lead
(as shown below). If you are going to use these speakers as main (front speakers) speakers on a 5.1 or 7.1 receiver, make sure they are connect to the front speaker leads (FT or
Front L/R) as labeled on your receiver.
SPEAKER HOOKUP 1
SPEAKER HOOKUP FOR BINDING POST TERMINALS
Page 4
L R
Amplifier
Speakon
Connector

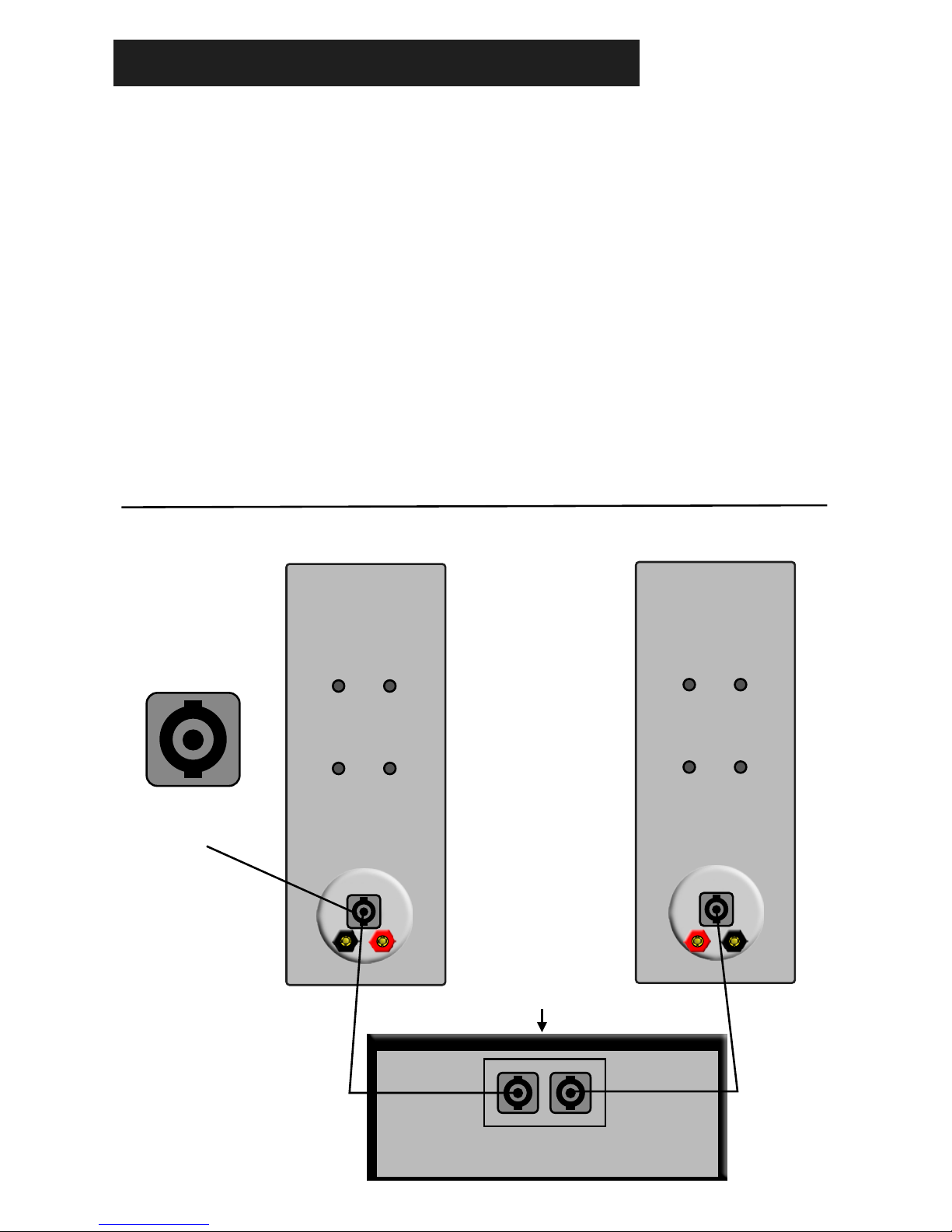

Speaker Hookup 2
Please read the entire steps below before making any connections.
1. Before you hook-up your speakers, make sure your receiver/amplifier is powered
off. Once your amplifier is off, you can begin hooking up you speakers to the amp.
There is one speakon connector on the rear of each monitor speaker. This type of con-
nector offers a simple plug and twist style This type of connector will lock and
keeps the cable from accidentally pulling out of the terminal.
This type of connection is only found in Pro Audio Equipment, such as amplifiers and
speakers. This type of connection makes connecting cables easy with one way insertion.
SPEAKER HOOKUP 2
SPEAKER HOOKUP FOR SPEAKON CONNECTION
Speakon
Connector
Page 5
SPEAKER MAINTENANCE
For the life of your speakers, we recommend using reasonable power and volume level.
These speakers are designed to be used with amplifiers with a maximum power of 120
watts per channel. To prevent burn-out or damage to the drivers, avoid setting bass
level on max, half way is more reasonable for a speaker this size. This will prevent
the speakers from clipping and bottoming out at high level of sound.
CABINET MAINTENANCE
The speaker cabinets should be treated the same way as a piece of furniture. Each
speaker cabinet is finished in a gloss paint, which does not require any special cleaning.
A simple lint-free cloth will work fine for cleaning. Do not use any liquid chemicals to
clean, by doing so, this can streak the finish. No sharp object should be place on or
near the speakers, by doing so, will scratch the finish.
Pro-6m Monitor Speaker

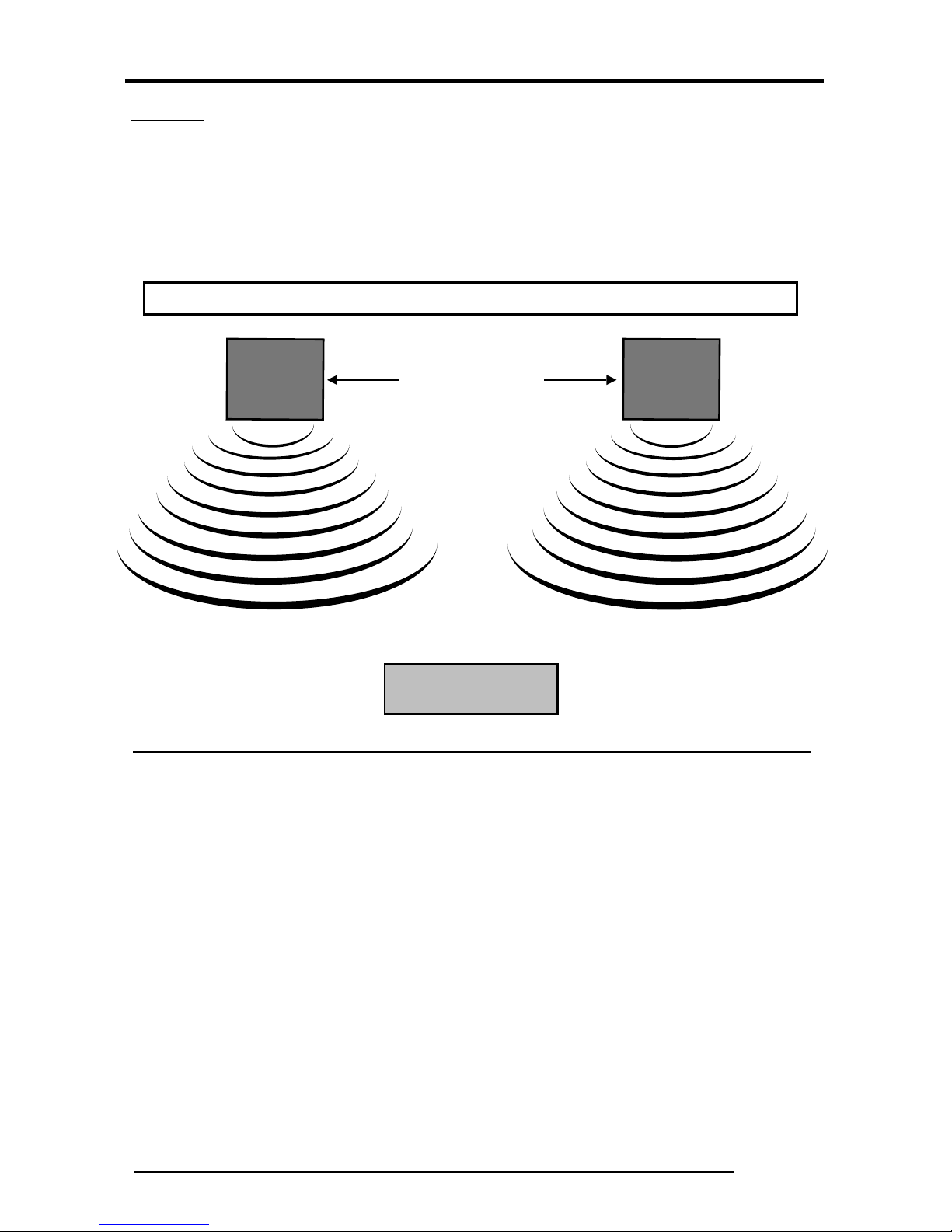

Since The AT-24 speaker is a front vented/ported speaker, it can be placed close to the
wall to insure proper airflow from the rear firing ports. Depending on the size of your
room, it is recommend to try different speaker placements until you achieve the desired
sound. How far you place your speakers from the wall, will determine the
bass response of them.
SETUP
Wall
Listening Area
Page 3
Front firing port
Page 6
SYSTEM SPECIFICATION:
Monitor Speaker (each)
Cabinet Type: Slot Vented
Drivers:
1" Silk dome tweeter
Dual 6.375" Steel frame woofers with accordian surrounds
Terminal Plate:
Binding post terminals
Ohms: 4
Power handling: 30 - 200 watts max
Frequency Response: 70 - 20,000Hz
Sensitivity: 94 dB (/2.83V/m)
Dimensions: 10" W x 13" H x 8"D
© 2016 MODVO, All Rights Reserved
WWW.MODVOPROFESSIONAL.COM
Contact Us Online
Site: www.modvoprofessional.com
Email: [email protected]
Fb: facebook.com/modvoprofessional
If you have any problem on
setting up your speakers, please
feel free to contact us. We’ll do
our best to have your speakers
up and running.
