MD & ME Edgewise Panel Meters
Features:
● Mount flush or surface without modification.
● Precision-molded covers and cases.
● Accuracy 5% of full scale.
● High torque, powerful ballistic movements permit mounting in steel panels without special calibration.
● Beautiful styling with subtle translucent lighting available in rectangular and square models.
● Production-engineered quick mounting and electrical connections.
Specifications
Accuracy ±5% of full scale (3% available as an option)*
Temperature Range
0°C to +50°C operating, -20°C to +60°C storage
° of Arc, Scale Length
°ARC Scale Length
MD N/A 0.96"
ME N/A 1.31"
©2014 Jewell Instruments LLC | 850 Perimeter Road | Manchester, NH 03103 | 800-638-3771

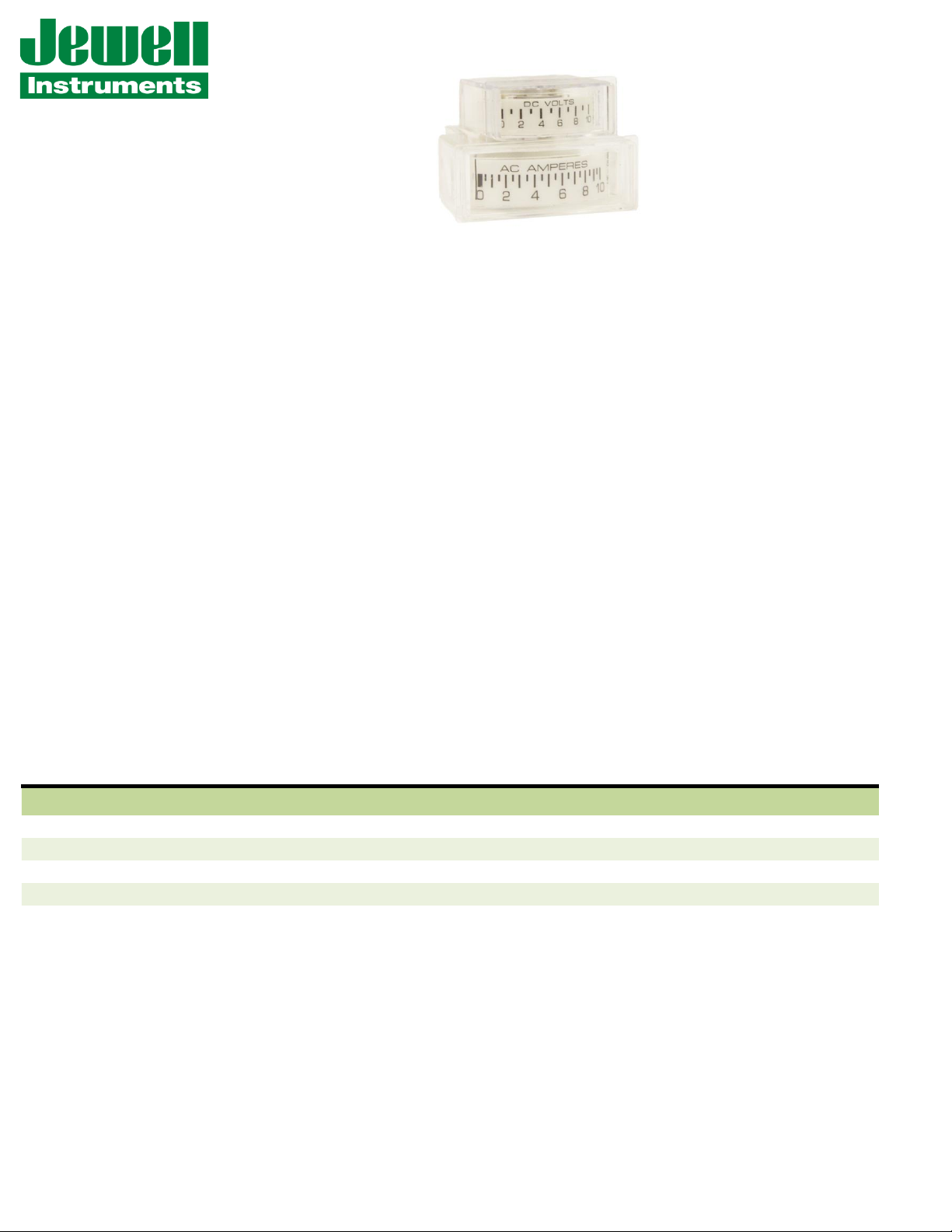

Useful space saving meters in two sizes, interchangeable with many costly d'Arsonval meters or
moving magnet meters from other sources. All sizes feature flush-to-panel covers without the
bulge that disfigures many edgewise meters. A low-cost option provides internal illumination
through a translucent dial - sophisticated lighting unusual in any economy meter, let alone an
edgewise type.
www.jewellinstruments.com
Outline Drawing - MD & ME Series
Dimensional Data - MD & ME Series
Available Options
How to Order
Suffix Option
MD &
ME
C Clear or Colored Covers ●
CP Custom Pointers ●
CD Custom Dials ●
DD Opaque Dials ●
KW Internal Illumination ●
SP Skin Pak ●
U Unit Boxing ●
X Heavy Duty Electrical Terminals ●
Z Rear Zero Adjust ●
VS1 (Std. Configuration)
Pointer on left, + terminal on top, Electrical zero at bottom (or center), + imput to
+ terminal moves pointer up
VS2
Pointer on left, + terminal on top, Electrical zero at top (or center), + imput to
+ terminal moves pointer down
VS3
Pointer on right, + terminal on bottom, Electrical zero at bottom (or center), + imput to
+ terminal moves pointer up
VS4
Pointer on right, + terminal on bottom, Electrical zero at top (or center), + imput to
+ terminal moves pointer down
