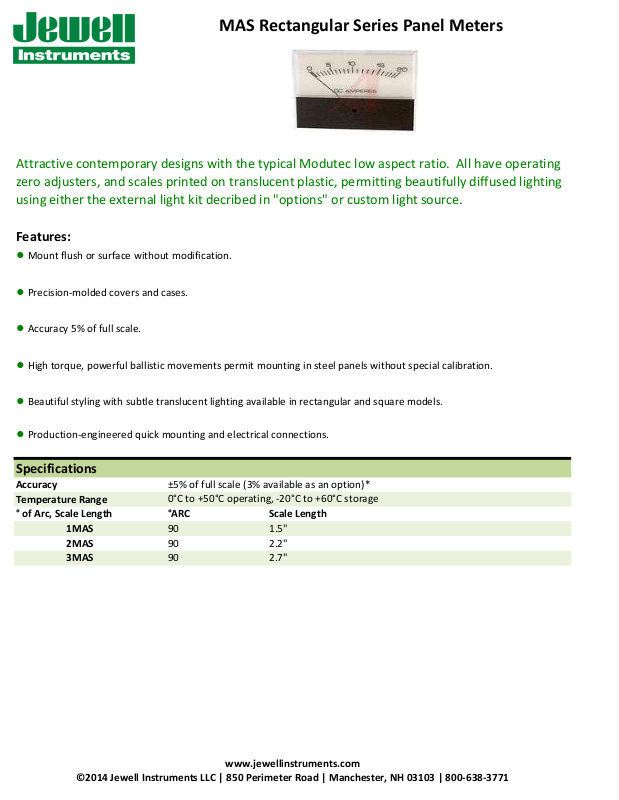

MAS Rectangular Series Panel Meters
Features:
● Mount flush or surface without modification.
● Precision-molded covers and cases.
● Accuracy 5% of full scale.
● High torque, powerful ballistic movements permit mounting in steel panels without special calibration.
● Beautiful styling with subtle translucent lighting available in rectangular and square models.
● Production-engineered quick mounting and electrical connections.
Specifications
Accuracy ±5% of full scale (3% available as an option)*
Temperature Range
0°C to +50°C operating, -20°C to +60°C storage
° of Arc, Scale Length
°ARC Scale Length
1MAS 90 1.5"
2MAS 90 2.2"
3MAS 90 2.7"
Attractive contemporary designs with the typical Modutec low aspect ratio. All have operating
zero adjusters, and scales printed on translucent plastic, permitting beautifully diffused lighting
using either the external light kit decribed in "options" or custom light source.
www.jewellinstruments.com
©2014 Jewell Instruments LLC | 850 Perimeter Road | Manchester, NH 03103 | 800-638-3771
Outline Drawing - MAS Series
Dimensional Data - MAS Series
Available Options
How to Order
Suffix Option
MAS
C Clear or Colored Covers ●
CP Custom Pointers ●
CD Custom Dials ●
DD Opaque Dials ●
KW Internal Illumination ●
SP Skin Pak ●
U Unit Boxing ●
X Heavy Duty Electrical Terminals ●
Z Rear Zero Adjust ●
meters@jewellinstruments.com
www.jewellinstruments.com
©2014 Jewell Instruments LLC | 850 Perimeter Road | Manchester, NH 03103 | 800-638-3771
Please refer to the MAS Catalog. Mention any options you would like to
add to your meter.
