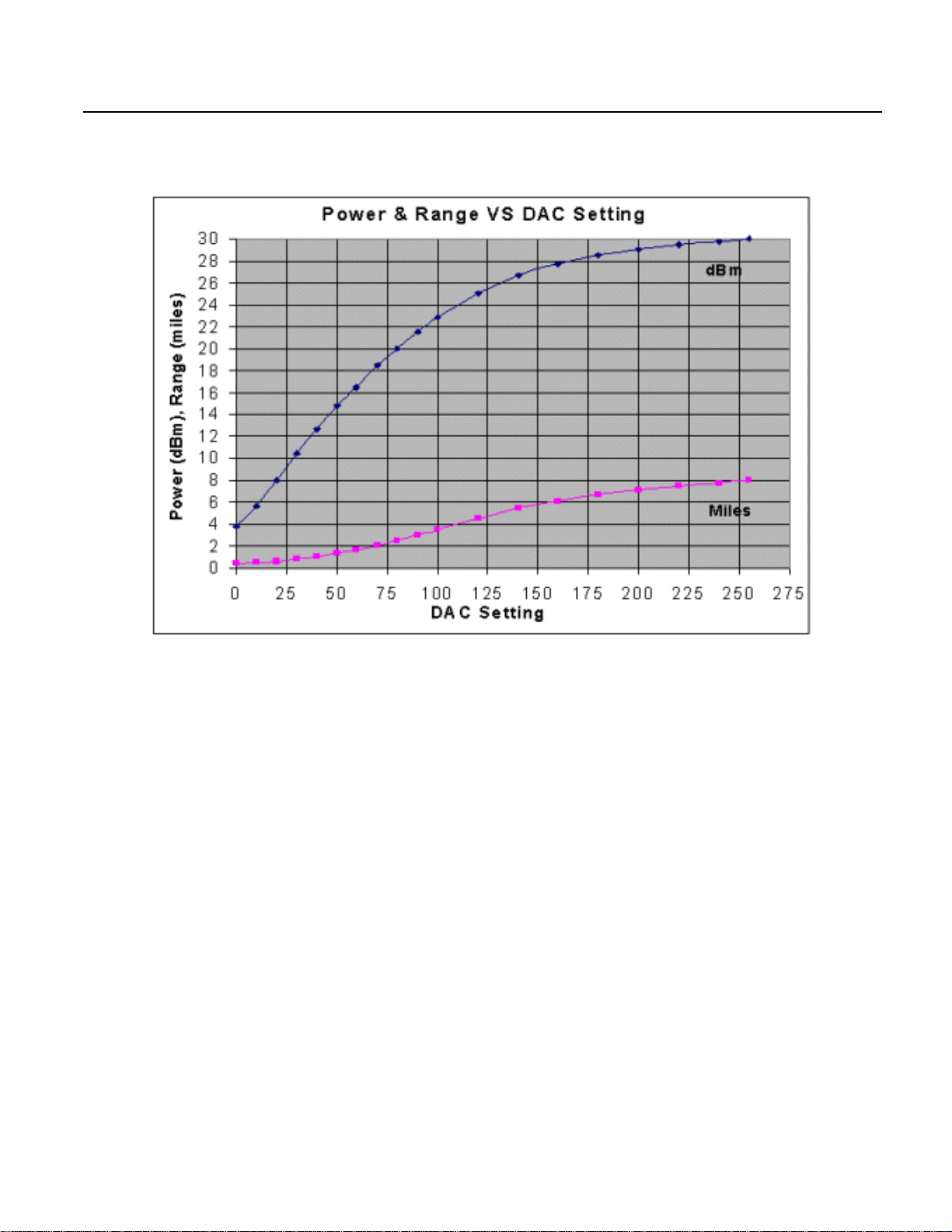

Power and Distance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Photographs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
DSSS Channels and Regulations . . . . . . . . . . . . . . . . . . . . . . . . . .9
EL Antenna Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

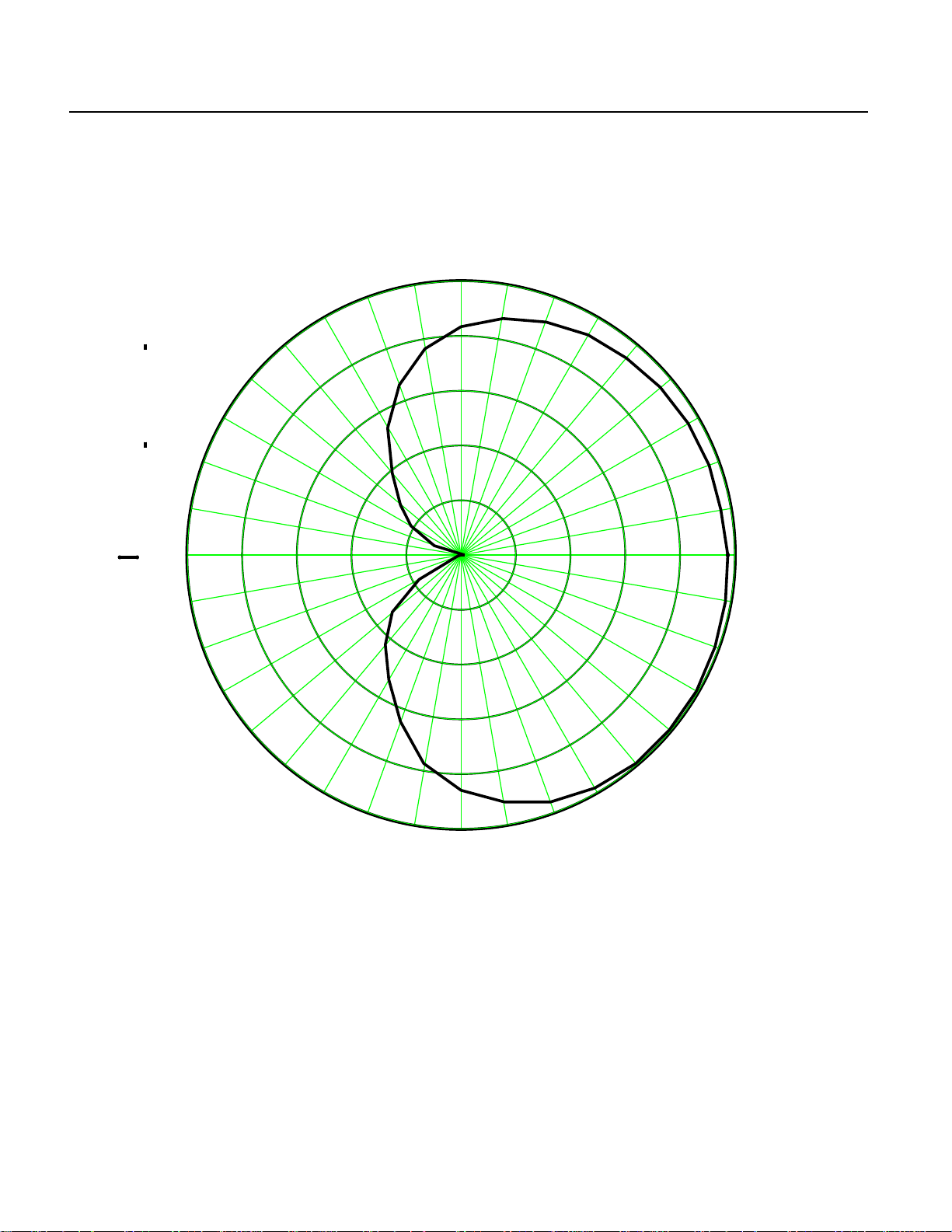

AZ Antenna Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
iii
March 2001
Spread Spectrum
Radio System
About This Manual This manual contains a description of the spread spectrum radio
(SSR) systemdesigned by Modular Mining Systems (MMS). Itsuse is
intended for MMS personnel and clients who may be responsible for
the system’s operation.Detailed installationand checkoutprocedures
are provided in a separate installation guide. Detailed user interface
information is also provided separately. The definitions of acronyms
used in this manual are given in Appendix A. The radio module
specifications are provided in Appendix B.
System Description The MMS-designed SSR system is based on direct sequence spread
spectrum (DSSS) technology, which provides a substantial
improvement in signal-to-noise performance over conventional
modulation techniques. Operating in the ISM 2.4- to 2.4835-GHz
frequencyband, thetransmitted signal isspread within thefrequency
domain by using an 11-bit Barker sequence chipping code to obtain a
transmission bandwidth of 22 MHz and data rates of 1 and 2 Mb/s.
The received signal is strengthened by a processing gain of 10.4 dB,
thereby increasing the signal’s resistance to interference.
The improved radio performance and increased bandwidth, as
compared witha 9600-b/s narrow-bandsystem, reduces congestionin
mines with large equipment fleets. Intensive graphic images, such as
updates for the Color Graphics Console (CGC) screen, and large
amounts of diagnostic data can be efficiently transmitted.
The SSR system comprises two major subsystems: the mobile
equipment system and the repeater system. The primary hardware
includes Hubs, radio modules, and mobile repeater stations. Rather
than oneor two conventional narrow-band repeaters,the SSR system
March 2001
2 Spread Spectrum Radio System User’s Manual
uses several small repeaters, as shown in the following simplified
diagram:
Base
Station
Ethernet
Redundant
Repeater
Figure 1 SSR System Configuration, Simplified
Each repeater extends the base station’s area of coverage and
communicates with the base station by way of other repeaters or
directly by way of a fiber optic cable.
Thebase stationuses redundantradios to ensure continued operation
in case a radio fails. Likewise, primary routing paths between
repeaters incorporate alternative routing paths in case a repeater
fails.The mine can optionally add repeaters to provide redundancy to
whatever extent is desired.
Initial installation is expedient in part because the ISM frequency
band is license free, and there are no delays associated with license
applications. Nor are there licensing fees. The system’s inherent
architecture makes adding repeaters to an installed system
practically effortless, and mobile repeaters are easily deployed to
cover new work areas as the mine’s topography changes.
March 2001
The mobile equipment system and the repeater system are described
in the following sections.
Spread Spectrum Radio System User’s Manual 3
Mobile Equipment System
Radio Module Tworadios areneeded permine vehicle ormachine so that360-degree
Each truck, shovel, dozer, drill, or other mine equipment in the
network requires the following major components:
• two 2.4-GHz radios
•a Hub
Although not integral to the SSR system, a CAN-based CGC and a
GPS antenna are also essential units of DISPATCH hardware
required on mine equipment.
coverage is obtained without having an antenna mounted above the
equipment. On a haul truck, the radios are typically mounted on the
front left and right deck or handrails.

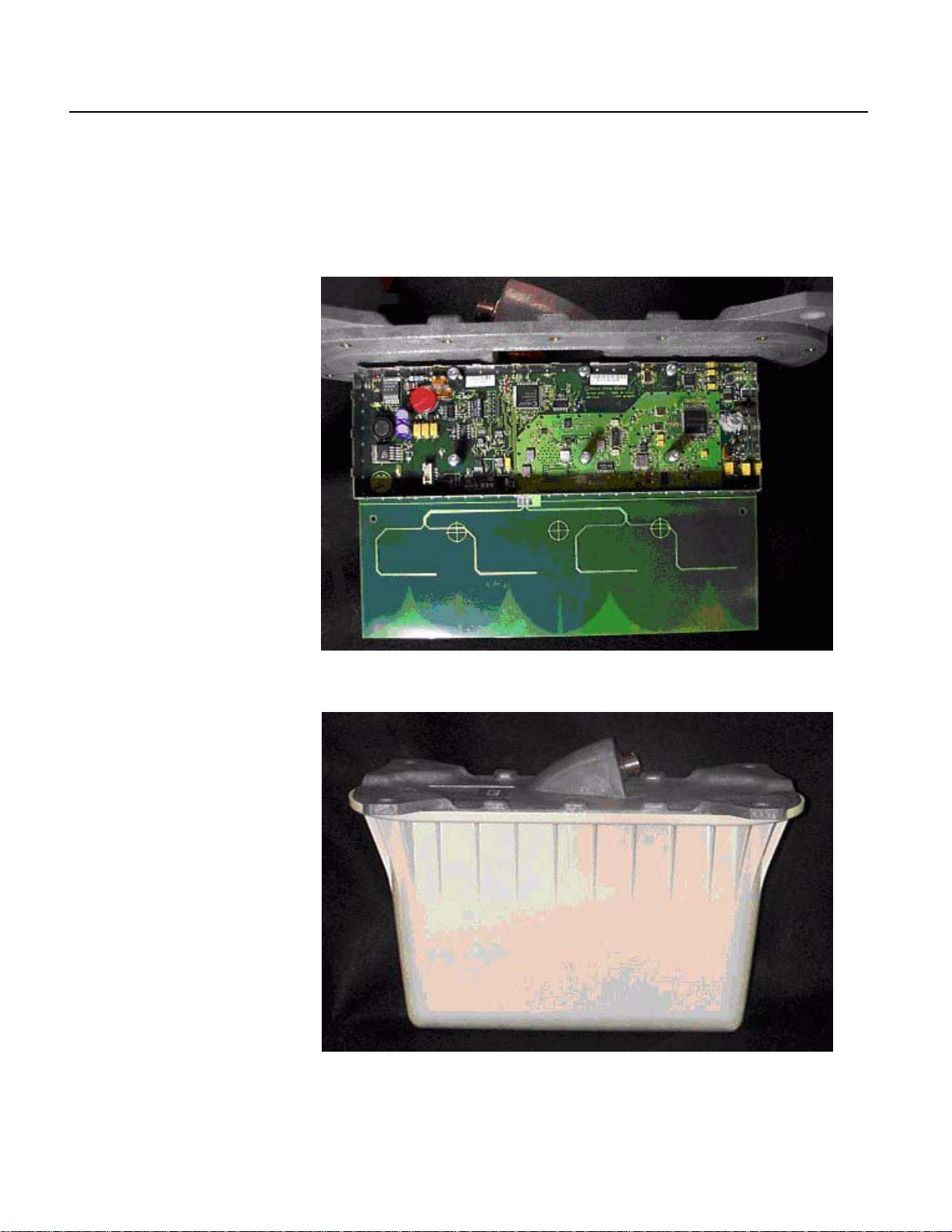

Each radio module (Figure 2) consists of a molded plastic case
containing the radio electronics and antenna on the same circuit
board. An internal EMI shield protects the electronics.
Figure 2 Radio Module, External View
The overall dimensions of the unit are 22 by 16.5 by 34.3 centimeters
(8.7 by 6.5 by 13.5 inches) and it weighs only 1.6 kilograms
(3.5 pounds).
Each radio connects to the onboard Hub by way of a cable carrying
power and data signals. Thecable connects to a single 6-pin connector
March 2001
4 Spread Spectrum Radio System User’s Manual
on the back of the radio module. The signals are identified in the
following table:
Table 1 Radio Module External Connector
Pin Signal Description
A DATA OUT + LVDS driven from radio +
B DATA OUT − LVDS driven from radio −
C DATA IN − LVDS received from Hub −
D DATA IN + LVDS received from Hub +
E PWR IN
F PWR GND Power ground connected to Hub
*Acceptable input range is 8 to 38 volts.
24 V dc received from Hub
*
Shielded connections inside the radio encapsulate the LVDS lines so
that radiation is minimized.
Hub The Hub controls the high-speed LVDS links to the radios by way of
FPGAs inside the Hub and the radio modules. The Hub supplies
protected power to the radios as well as protected power to all other
DISPATCH hardware on the mine equipment, such as the CGC and
external GenericSerial Processor (GSP). This eliminates the needfor
an external power supply and reduces the amount of input protection
circuitry the non-Hub devices require.
CAN A [RESERVED] RADIO A
SLIP
RADIO B
March 2001
GPS ANTENNA
CAN A
Figure 3 Mobile Equipment Hub
POWER
DIGITAL I/OGSPETHERNET
Spread Spectrum Radio System User’s Manual 5
The Hub is installed inside the equipment’s cab usually mounted to
the wallor on an uprightbracket attached to the floor or rear dash. It
consistsof a ruggedcaseand base platemadeof castaluminum, which
hasbeen anodized andenameledto providemaximumprotection from
harsh environments. Its physical dimensions are approximately 35.4
by 26.2 by 9.4 centimeters(14 by10.3 by3.7 inches), and it weighs 4.3
kilograms (9.5 pounds).
Major Circuit Boards
The mobile equipment Hub houses the following major components:
• processor board
This board has an Intel SA1100 processor, DRAM, ROM, flash
memory, FPGA, Ethernet controller (10Base-T), CAN
controller, and other primary components. All transceivers and
isolation components are on the isolation interface board,
thereby making the processor board relatively stable. This
board is also small enough to allow full-size high-precision GPS
receivers to be mounted next to it inside the Hub cover.
• power board
This board distributes protected, isolated, and regulated power
to the system components. The input power source is nominally
12 or 24 V dc. The optional 12-V Hub has an operational range
of 10 to 19 volts; the optional 24-V Hub has an operational
range of 18 to 35 volts.
• connector board
This board provides the internal connections between the
power and isolation interface boards, and all connections to
external devices.
• isolation interface board
This board provides electrical protection and isolation to
signals coming from outside the Hub to the processor.
• location system (GPS) adapter board
This board provides the interface between the processor board
and the GPS receiver.
March 2001
6 Spread Spectrum Radio System User’s Manual
Over and Undervoltage Protection
The Hub power board has built-in protection from damage to the
electronics during a constant steady-state over or undervoltage
condition. When either condition occurs, the Hub shuts off by
disconnecting itself from the power source,and remains off as long as
the accessory switch is open. Whenthe conditionno longer exists, and
the accessory switch closes, the Hub turns itself back on.
When the accessory switch opens during normal operation, a soft
shutdown occurs, which permits the software to save data, complete
pending radio communications, and shut down in an orderly fashion.
Connectors and Indicators
There are 11 external connectors on the front of the Hub. A decal
affixed to the top of the Hub indicates the type of connection at each.
One of these connectors is reserved for future use. The other 10 are
briefly described in the following table:
Table 2 Equipment Hub Connectors
Connector Description
GPS ANTENNA type TNC coaxial cable connector for GPS
antenna
SLIP RS-232 service port for laptop during system
startup, update, and troubleshooting
CAN A
(2 connectors)
RADIO A
RADIO B
POWER receives source power
DIGITAL I/O provides two digital inputs for contact-
GSP provides 15-V isolated power to and two
provides power output to and data
communications with standard CAN devices
including CGC and external GSP units;
software configurable to support SAE
standard devices
provides power and data link to radio A
provides power and data link to radio B
closure-type devices such as foot switches
communications ports (A and B) for serial
devices. The A port can be RS-232 or RS-485;
the B port is RS-232.
*
*
March 2001
ETHERNET standard 10Base-T network connection
* The radios are configured A or B during software installation.
Spread Spectrum Radio System User’s Manual 7
The fivestatus lights ontop of theHub convey importantinformation
to the user. The purpose of each is listed in the following table:
Table 3 Equipment Hub Status Indicators
Status Light Indication
PWR Hub is receiving power from source.
GPS Link with GPS is operating.
RADIO A Link with radio A is operating.
RADIO B Link with radio B is operating.
COMM Link with mine network is operating.
Mobile Equipment
Options
The options available witheach mobileequipment system include the
following:
• The Hub power system can be either 12 or 24 V dc.
• External multi-protocol CAN-based GSPs can be added to
support more than the two third-party serial devices that the
internal GSP on the Hub processor board satisfies.
• Future enhancementsinclude an external unit thatcan provide
an analog/digital interface tothird-party monitoringequipment
such as oil pressure systems.
Repeater System Several repeater units are required to provide coverage in the work
area. The actual quantityis determinedby the user and largely based
on MMS-conductedsite surveys. The desired level ofredundancy also
impacts the quantity used.
Each repeater unit consists of the following standard components:
• an environmental enclosure containing a Hub with a 1-W,
DSSS, 2.4-GHz radio
• an omnidirectional antenna with a 12-, 18-, or 24-foot mast
• a lightning diverter
Optionally, the user may select
• a steel mounting base
• a wheel option
March 2001
8 Spread Spectrum Radio System User’s Manual
• a solar power system with backup batteries and surge
protection
• an ac-to-dc power system with surge protection
• GPS capability
A repeater with optional solar panel and wheels is configured
similarly to the following example:
March 2001
Figure 4 Example Mobile Repeater
Hub Like the Hub on the mobile equipment, the repeater Hub is made of
cast aluminum that has been anodized and enameled. It is also the
same size as the mobile equipment Hub but is mounted inside an
environmental enclosure that is 50.8 by 40.6 by 20.3 centimeters (20
by 16 by 8 inches) and made of powder-coated 14-gage steel.
An access door is provided on the front of this NEMA enclosure, and
holes for the antenna coaxial cables and power are provided in the
rear. Theenclosure alsocontains surge suppressors—on the incoming
Spread Spectrum Radio System User’s Manual 9
coaxial cables—and the ac-to-dc converter with power line protection
if power is obtained from an ac source rather than the solar panel.
Closed Opened
Figure 5 Repeater Hub Environmental Enclosure
Arepeater equippedwith a solarpanel also hasbackup batterypower.
The batteriesare installed in a large environmental enclosure. Power
line protection from the solar panel to the Hub in its enclosure is
providedby surgesuppressors insidea third enclosureattached to the
enclosure containing the batteries.
Major Circuit Boards
The repeater Hub houses the following major components:
• radio board
The electronics on this board are identical to those on the
mobile system’s radio module. However, this board does not
have an integrated antenna.
• processor board
This is the identical board used in the mobile equipment
system.
• connector board
This board provides the connections between the internal
components and external devices.
March 2001
10 Spread Spectrum Radio System User’s Manual
• location system (GPS) adapter board
This board is present only if the repeater is equipped with the
GPS option. It provides the interface between the processor
board and the GPS receiver.
Connectors and Indicators
There are six external connectors on the front of the Hub. A decal
affixed to the top of the Hub indicates the type of connection at each.
EXT RADIO SLIP
RF ANT
ETHERNET
GPS ANT
Figure 6 Repeater Hub
The following table provides a brief description of each of the
connectors:
Table 4 Repeater Hub Connectors
Connector Description
GPS ANT type TNC coaxial cable connector for GPS
RF ANT type N coaxial cable connector for 2.4-GHz
EXT RADIO provides connection to an externalSSR ifan
SLIP RS-232 service port for laptop connection
POWER
antenna
radio antenna
internal radio is not used. This connector is
normally not used.
during system startup, update, and
troubleshooting
March 2001
Spread Spectrum Radio System User’s Manual 11
Table 4 Repeater Hub Connectors (Continued)
Connector Description
ETHERNET fiber optic 10Base-T Ethernet connection
from/to base station
POWER receives 24-V dc operating power either
from solarpanels or ac source through ac-todc converter
The purpose of each status light on top of the Hub is listed in the
following table:
Table 5 Repeater Hub Status Indicators
Status Light Indication
Repeater System
Options
PWR Hub is receiving power from source.
GPS GPS is operating and LED is blinking the
number of satellites currently being tracked.
LINK The 10Base-T Ethernet link is operating.
LAN The 10Base-T Ethernet LAN is operating.
COMM Link with data radio communications
network in mine is operating.
The options available with each repeater are as follows:
• A steel base with three stabilizing outriggers and a support for
the antenna mast provides a means for mounting the
electronics, antenna mast, and solar-power system if
applicable. Each outrigger has a jack stand that can be
manually adjusted to suit the level of the terrain.
• A steel frame with two 15-inch wheels and a standard trailer
hitch converts the fixed configuration to a mobile configuration.
This frame mounts below the fixed base to which the
electronics, mast, and solar system are attached. In this
configuration, therepeater can be easily towed and relocated by
pickup or automobile.
March 2001
12 Spread Spectrum Radio System User’s Manual
• Solar power can be provided by way of panels, which are
available in 150-, 200-, and 300-W power ratings. The required
power rating is determined by the repeater’s geographic
location.
• Power can be provided by way of an ac-to-dc converter. When
this option is selected, the converter and surge protection are
physically located in the NEMA enclosure with the Hub. Both
50 and60 Hz are supported as well as100- to 120-V ac and 200to 240-V ac ranges, which are jumper selectable. The converter
requires 1.3 amps at 100 V ac.
• GPS capability to enable DISPATCH to track a relocated
repeater.
Base Station The repeater Hub is also used as the base station. In this case, the
environmental enclosure is not used because the base station is
normally inside a building, and the antennas are mounted outside.
The power source is hard wired to the Hub through an ac-to-dc
converter. A fiber optic Ethernet connection is usedto isolate thebase
station computers from the base station Hub, radio, and antennas.
System Installation and Checkout
Installation of the hardware on mine equipment consists of installing
mountingbrackets inpredesignated locations, andthen mounting the
radios and Hubs to the brackets. Cables are then routed and the
connections are made and checked. Neither the Hub nor radios
require being opened.
The repeater base and trailer require some assembly; then the
antenna mast and brackets are installed. After all hardware is
mounted, cable connections are made and checked.
The batteries in the 24-V solar-powered repeater system are charged
by the panels until they reach 28.2 to 29.0 V, and must be charged to
25.4 to 26.6 V dc before the load may be applied. When the batteries
dischargeto 22.4to23.6 V,theload disconnects.On afully charged set
of batteries, the repeater can continue operation without sunlight for
several days.
As each mobile equipment system and repeater system is installed,
operating and application software is downloaded from a laptop
through the Hub SLIP port. Then the RF links to the base station or
another communications node are checked to verify throughput is
acceptable.
March 2001
Spread Spectrum Radio System User’s Manual 13
Details on installation and checkout procedures are provided in a
separate manual.
User Interface The statusof anyand all repeaters in thesystem configuration can be
monitored from the DISPATCH central computer.
March 2001
A
Acronyms
The acronyms listed in the following table are used in this manual:
Table A.1 Acronyms Used in This Manual
Acronym Definition
CAN Controller Area Network
CGC Color Graphics Console
DRAM dynamic random access memory
DSSS direct sequence spread spectrum
EMI electromagnetic interference
FPGA field-programmable gate array
GPS Global Positioning System
GSP Generic Serial Processor
ID identification
ISM Industrial, Scientific, and Medical
LVDS low-voltage differential signal
MMS Modular Mining Systems
NEMA National Electrical Manufacturers Association
PCB printed circuit board
ROM read-only memory
SAE Society of Automotive Engineers
SSR spread spectrum radio
VSMS Vital Signs Monitoring System
March 2001
B
Radio Module
Specifications
General Description
The 2.4-GHz DSSS spread spectrum radio is based on the Intersil
PRISM I chipset(Intersil was formally Harris). The Intersil PRISM I
information can be found at the following Web site:
www.intersil.com/prism/ (Select PRISM I * 2 Mb/s product link.)
Because MMS used the Intersil design for the radio, most of the
specifications in this appendix are directly from Intersil
documentation. However, two major areas differ and are reflected in
these specifications
• MMS replaced the Intersil PA/switch chip with a new amplifier
design and a separate antenna switch.
• The radio has no MAC (Media Access Controller) chip and,
instead, is controlled through a custom link with the Hub
(MMS computer).
MMS replaced the Intersil PA/switch chip to achieve 1 watt of output
power (the maximum permitted by the FCC) instead of just 18 dBm.
The additional power provides an increased range so that the radios
can be used in an open-pit mine with line-of-sight being
approximately8 milesnode tonode.As requiredbythe FCCfor radios
with over 20 dBm (100 mW) of power, the power setting is adjustable.
The controlling link is a 22-Mb/s LVDS digital link between the radio
and the Hub. The radio must be connected to the Hub, and the radio
board has a built-inantenna. As an option, MMSwould liketo cut the
antenna off the board and use an omnidirectional antenna.
MMS plans to sell approximately 2100 of the PRISM I radio design
before exploring the PRISM II design from Intersil.
March 2001
B-2 Spread Spectrum Radio System User’s Manual
Functional
Specifications
Specification Typical Unit
Power Voltage Input Range (acceptable) 9–38 volts DC
Radio Module Input Voltage from Hub (controlled via
Hub)
Radio Module Power (receive mode only) 1.43 watts
Radio Module Power (full 98% TX duty cycle) 4.7 watts
Radio Module Power (typical 20% duty cycle)
The radio operates in the license-free 2.400- to 2.4835-GHz ISM
(Industrial, Scientific, Medical) frequency band and is capable of two
data rates
• DBPSK Differential Binary Phase Shift Keying 1 Mb/s
• DQPSK Differential Quadrature Phase Shift Keying 2 Mb/s
Tables B.1 through B.4 list the radio module specifications:
Table B.1 Radio Supply Power
24 volts DC
a
2.1 watts
a. Power = 1.43 + (3.4 ∗ duty cycle) watts
Table B.2 Radio RF Performance and Operation
Specification Typical Unit
Output Power Range 2–30 dBm
Output Power Resolution (8-bit DAC) 256 steps
TX Distance Range (based on 2–30 dBm) 0.3–8.0 miles
B.E.R. 1 × 10
Processing Gain (per 11-bit chipping code) 10.4 dB
Image Rejection 80 dB
Adjacent Channel Rejection >35 dB
Receiver Noise Figure 7 dB
Channel Noise (N=kTB where B=2 MHz despread) −110.97 dBm
Signal-to-Noise Ratio (SNR-Eb/No∗ R/BT) 11.1 dBm
-6
bits
March 2001
Receiver Sensitivity (= noise floor + SNR) −92.87 dBm
Appendix B — Radio Module Specifications B-3
Table B.2 Radio RF Performance and Operation (Continued)
Specification Typical Unit
Dynamic Range (TX power − receiver sensitivity) 122.87 dB
Transmit Spectral Mask (at 1st side-lobe) −30 dBr
TX & RX Data Rates Using DBPSK 1 Mb/s
TX & RX Data Rates Using DQPSK
Chipping Code (currently is a 802.11 compatible Barker) 11 chips
Key-up (synchronization − must be at DBPSK data rate) 128 bits (& µs)
Maximum Packet Size
b
Output Power Resolution (8-bit DAC) 128 steps
Channels 12 —
Channel Separation
c
a
2 Mb/s
1024 bytes
5 MHz
IF Frequency 280 MHz
LO VCO Frequency (= 2 × IF) 560 MHz
a. Default operation will be DQPSK.
b. The 128-bit synchronization header is not counted.
c. Channels start at 2412 MHz and increment in 5-MHz steps (802.11 style).
Table B.3 Radio Physical Specifications
Specification Typical Unit
Overall Module Size (L × W × H) 8.7 × 6.5 × 13.5 inches
Overall Weight 3.5 pounds
Backplate (structural foam using Valox FV649) 0.75 pounds
Cover (Valox 357) 1.53 pounds
PCB Dimensions (W × H) 6.5 X 9.6 inches
PCB Construction – 0.093" FR4 6 layer —
Operational Temperature Range −30 to +60 Celsius
March 2001
B-4 Spread Spectrum Radio System User’s Manual
Table B.4 Radio Antenna Performance
Specification Typical Unit
Antenna Type = Integrated Quad Vivaldi on FR4 — —
AZ 3-dB Beam width 190 degrees
EL 3-dB Beam width 28 degrees
Gain 6 dB
Feed Structure Losses (0.3 dB per inch on 0.030" FR4) 1.5 dB
FCC Items To pass FCC regulations, the radio must pass a stringent set of
standards set forth in the following document:
FCC Title 47 part 15, in particular the following sections:
• section 203 – antenna requirement
• section 209 – radiated emissions outside of band (general)
• section 247 – operation within band (all aspects)
• section 249 – operation within band (field strength)
The following table presents several key test parameters that have
been verified:
Table B.5 Verified FCC Test Parameters
Parameter Typical Unit
Spectral Sideband Suppression 30 dBr
Max Antenna Gain 6 dB
Max Transmit Power 30 dBm
Outside of Frequency Band Emissions Attenuation ≥50 dB
March 2001
Appendix B — Radio Module Specifications B-5
Channel
Definitions
The channel selection is identical to the 802.11 standard, which is as
follows:
Table B.6 Channel Definitions
Onboard
Channel
a
RF VCO
1 2132 MHz 2412 MHz
2 2137 MHz 2417 MHz
3 2142 MHz 2422 MHz
4 2147 MHz 2427 MHz
5 2152 MHz 2432 MHz
6 2157 MHz 2437 MHz
7 2162 MHz 2442 MHz
8 2167 MHz 2447 MHz
9 2172 MHz 2452 MHz
b
Transmit
Frequency
10 2177 MHz 2457 MHz
11 2182 MHz 2462 MHz
Japan 2204 MHz 2484 MHz
a. Each channel has a 17-MHz bandwidth.
b. The onboard RF VCO output is always
the Transmit Freq − IF Freq (280 MHz).
See the “DSSS Channels and Regulations” section for detail.
March 2001
B-6 Spread Spectrum Radio System User’s Manual
Power and Distance
The following table and diagram show data pertaining to the power
output versus gain control input:
Table B.7 Power vs. Range
Setting
DAC
0 3.85 2.43 0.39 0.63
10 5.70 3.72 0.49 0.78
20 8.01 6.32 0.64 1.02
30 10.49 11.19 0.85 1.36
40 12.67 18.50 1.09 1.75
50 14.81 30.29 1.39 2.24
60 16.47 44.38 1.69 2.71
70 18.45 70.01 2.12 3.41
80 19.99 99.81 2.53 4.07
Power
dBm
Power
mW
Range
Miles
Range
km
90 21.53 142.12 3.02 4.85
100 22.84 192.16 3.51 5.64
120 25.06 320.63 4.53 7.29
140 26.68 465.94 5.46 8.79
160 27.71 590.43 6.15 9.89
180 28.48 705.23 6.72 10.81
200 29.04 801.99 7.16 11.53
220 29.47 884.78 7.52 12.11
240 29.78 950.97 7.80 12.55
255 30.00 1000.00 8.00 12.87
March 2001
Appendix B — Radio Module Specifications B-7
March 2001
B-8 Spread Spectrum Radio System User’s Manual
Photographs As shown in the following photograph, the radio is basically a
PRISM I chipset with a 1-watt amplifier and a power supply. The
FPGA controls the radioby wayof thedigital serial link from theHub
computer.
The following photograph shows the radio with its plastic cover on.
March 2001
Radio Module Specifications
Appendix B — Radio Module Specifications B-9
0
DSSS Channels and Regulations
The following diagram and table show frequency band allocation:
USA: ISM Band 2400-2483.5 MHz (Same for Europe – ETSI)
Power 1 watt maximum (30 dBm)
Directivity 6 dB antenna gain maximum
JAPAN: ISM Band 2471 – 2497 MHz
Power 10 mW / MHz
Note: The microwave oven operates at 2.43 GHz. Also, the two other ISM
bands in the U.S.A. are 902–928 MHz and 5725–5850 MHz.
Table B.8 Frequency Band Allocation
Regulatory Domains
ChannelIDFrequency
(MHz)
1 2412 X X X - - 2 2417 X X X - - 3 2422 X X X - - 4 2427 X X X - - 5 2432 X X X - - 6 2437 X X X - - -
X'10'
FCC
X'20'
IC
X'30'
ETSI
X'31'
Spain
X'32'
France
X'40'
MKK
March 2001
B-10 Spread Spectrum Radio System User’s Manual
Table B.8 Frequency Band Allocation (Continued)
ChannelIDFrequency
(MHz)
7 2442 X X X - - 8 2447 X X X - - -
9 2452 X X X - - 10 2457 X X X X X 11 2562 X X X X X 12 2467 - - X - X 13 2472 - - X - X 14 2484 - - - - - X
X'10'
FCC
X'20'
IC
Regulatory Domains
X'30'
ETSI
X'31'
Spain
X'32'
France
X'40'
MKK
March 2001
EL Antenna Pattern
Appendix B — Radio Module Specifications B-11
110
120
130
140
150
160
170
t
i
180
190
200
210
100
90
17.5
14
10.5
3.5
80
7
0
70
60
50
40
30
20
350
340
330
17.5
10
0
0
220
230
240
250
260
270
θ
i
Antenna Parameters:
Plot File polar_data_74E_5ea.MCD
Title Quad Element Vivaldi
Radius 1.45"
Separation 2.400" per element (1/2 λ)
Element Gap 0.100"
Element 2.300"
320
310
300
290
280
March 2001
B-12 Spread Spectrum Radio System User’s Manual
AZ Antenna Pattern
110
120
130
140
150
160
170
t
i
180
190
200
210
100
90
17.5
14
10.5
7
3.5
0
80
70
60
50
40
30
20
350
340
330
17.5
10
0
0
March 2001
220
230
240
250
260
270
θ
i
Antenna Parameters:
Plot File polar_data_74H.MCD
Title Quad Element Vivaldi
Radius 1.45"
Separation 2.400" per element (1/2 λ)
Element Gap 0.100"
Element 2.300"
320
310
300
290
280
Revision Date Comments
— March 2001 First issue
Revision History
Loading...
