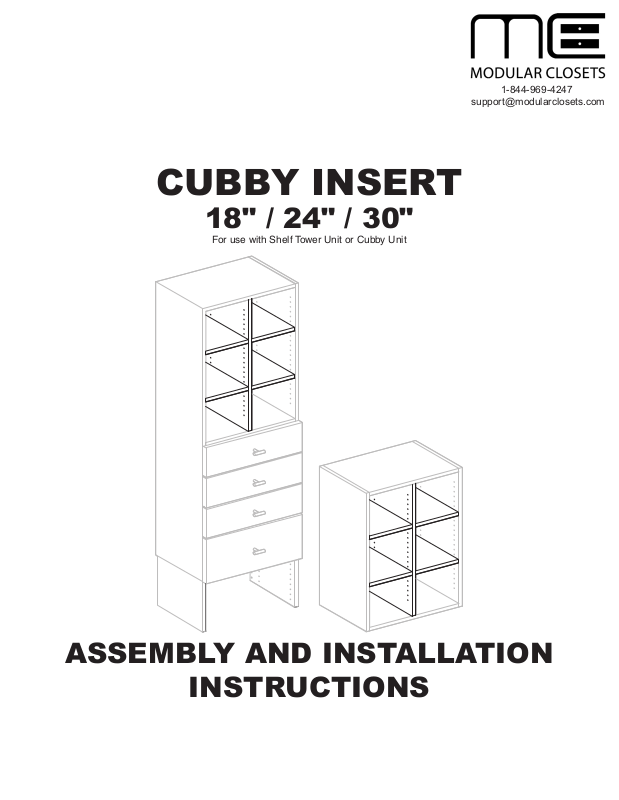

CUBBY INSERT
18" / 24" / 30"
For use with Shelf Tower Unit or Cubby Unit
1-844-969-4247
support@modularclosets.com
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
ASSEMBLY AND INSTALLATION INSTRUCTIONS
CUBBY INSERT - 18" / 24" / 30"
1
A
PARTS LIST
Vertical Support (Qty 1)
A
Shelf (Qty 4)
B
Camlock (Qty 16)
C
Cam Post (Qty 16)
D
C
D
B
TOOLS REQUIRED
(purchased separately)
E Phillips Screwdriver
E
1.1
Lay parts out on a protective surface to prevent
damage.
to use as a protective surface.
1.2
Inventory parts against the Parts List. Make sure
all parts are present before proceeding.
Tip: Spread out the cardboard packaging
2
C
C
C
B
2.1 Insert Camlocks (C) in cutouts in Shelves (B). Be sure Camlocks are
fully seated in Shelves, and are in the "open" position.
C
"OPEN"
POSITON
CAMLOCKS
C
"LOCKED"
POSITON
ASSEMBLY AND INSTALLATION INSTRUCTIONS
CUBBY INSERT - 18" / 24" / 30"
For installation in Cubby Unit or lower
3A
compartment of Shelf Tower Unit:
A
3.1
Insert Vertical Support (A) into compartment in Unit.
3.2
Make sure cutouts in Vertical Support engage Rear Cleats
in Unit and front edge of Support is flush with front of Unit.
3B
3.1
3.2
For installation in upper compartment
of Shelf Tower Unit:
A
Insert Vertical Support (A) into compartment in Unit.
Make sure upper cutout in Vertical Support engages
Rear Cleat in Unit and front edge of Support is flush
with front of Unit.
ASSEMBLY AND INSTALLATION INSTRUCTIONS
CUBBY INSERT - 18" / 24" / 30"
4
4.1 For each Shelf (B), screw four Cam Posts (D) into pin
holes in Unit side panels and Vertical Support (A) at
the desired height until Posts are seated against Panels
and Vertical Support.
D
D
A
D
D
5
5.1
Insert Shelves (B) and rest on Cam Posts (D). Make
sure Shelves are level and Cam Posts are fully seated
in Camlocks (C) in bottom of Shelves.
5.2
Tighten Camlocks (C) clockwise to locked position.
CAMLOCKS
C
"OPEN"
POSITON
"LOCKED"
POSITON
D
D
B
