Modify EZ-802FX, EZ-1002FX, EZ-1202FX, EZ-602FX User Manual
Mini Audio Mixer
OPERATING MANUAL AND USER GUIDEOPERATING MANUAL AND USER GUIDE
OPERATING MANUAL AND USER GUIDEOPERATING MANUAL AND USER GUIDE
IMPORTANT WARNINGS & SAFETY INSTRUCTIONSIMPORTANT WARNINGS & SAFETY INSTRUCTIONS
1. Power Supply
This mini-mixer is supplied with an external power supply unit. Use only the power
supply provided with your mixer. Use of any other power supply could cause damage to
the mixer and other equipment. Connect the power supply to the mixer BEFORE connecting
it to the power source outlet. Be sure to allow for free airflow around the mixer, as it
may become warm during long periods of operation. The mixer is shipped with the
correct power supply for the county in which it is to be used. This can be verified by
checking the label on the power supply.
2. Packing
The exterior and interior packaging has been designed protect the mixer during transit.
If any shipping damage has occurred, consult your dealer and the shipping provider.
3. Safety
Avoid exposing your mixer to excessive heat, humidity and dust. Store and operate
the mixer away from locations where it is likely to be exposed to these conditions.
Also, avoid placing your mixer in locations which may be subject to excessive
vibration/physical shocks that could cause mechanical damage to the mixer.
WARNING:
QUALIFIED SERVICE PERSONNEL!
THIS PRODUCT CONTAINS NO USER-SERVICEABLE PARTS!
For the protection of the mixer and other audio equipment, always turn off the power
on the mixer and other system components before connecting or disconnecting audio
cables. Be aware that excessive volume levels are possible from the output of this
mixer Protect your hearing accordingly.
4. WARRANTY
The mixers are covered by a limited warranty, against any defects in workmanship for
a period of one year from the date of purchase. This warranty is non-transferable and
applies only to the original purchaser. If any warranty related issues occur, contact your
dealer. Proof of purchase may be required.
REFER ALL MAINTENANCE, REPAIRS AND MODIFICATIONS TO
TABLE OF CONTENTSTABLE OF CONTENTS
Page
.........................................
1
.........................................
2
.........................................
3
.........................................
4
.........................................
5-10
.........................................
5-7
.........................................
7-8
.........................................
8-9
.........................................
10
.........................................
11-12
.........................................
13
.........................................
1
14
IMPORTANT WARNINGS & SAFETY INSTRUCTIONS
WHAT ABOUT THE MINI MIXER?
FEATURES
MIXER FRONT PANEL
DETAIL FEATURES
Mono Channels
Stereo Channels
Master Section
MP3 Player (Digital Audio Player) Section
SETTING UP

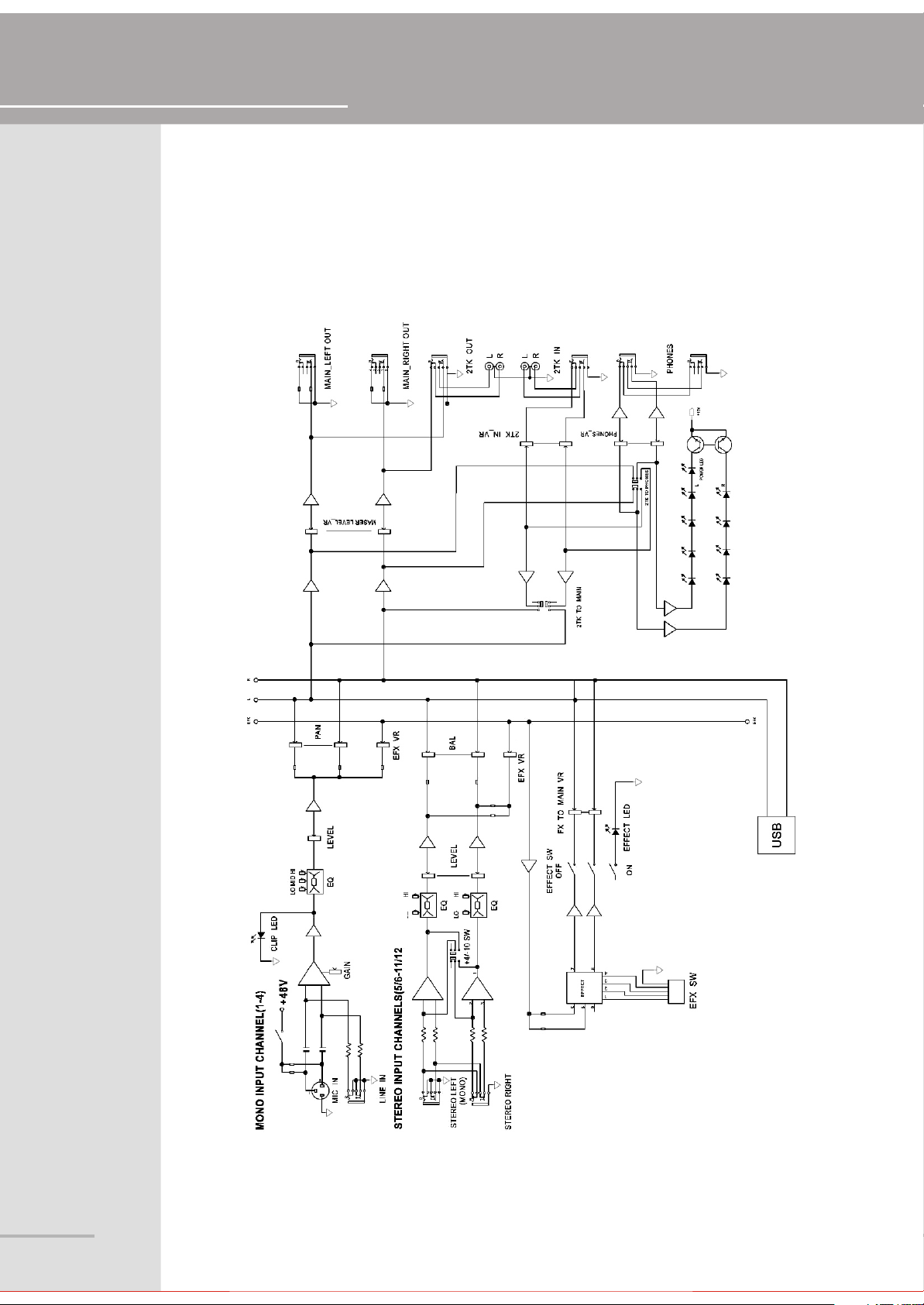

BLOCK DIAGRAM
SPECIFICATIONS
MINI MIXER 6/8/10/12 CHANNEL
WHAT ABOUT THE MINI MIXER?WHAT ABOUT THE MINI MIXER?
The Mini Mixer is a high quality mixer designed to provide the best sound and
features in a compact package. It is designed to provide transparent and accurate mixing
capability in an easy to use package.
The mixer consists of 2/4/6/8 x microphone/line inputs. Each mono channel features
Iow,mid and high EQ, balanced input, and a Digital Effect processor with 16 effects
to allow you to "tune" your sound.
The 2 stereo channels with high and low EQ allow you to mix your external devices into the
show with ease.
Easy to transport and quick to set up, the Mini Mixer is the ideal choice for the serious
professional.
The mixer consists of 2/4/6/8 microphone/line inputs and 2 Stereo Channels.
INTRODUCTION
Professional Mixer is the result of many years of experience in the use, design and manufacturing
of professional sound reinforcement products. We take great pride in engineering and building
every product and wish to thank you for entrusting us with your sound.
Please take a few minutes to read this manual completely in order to ensure that you get
the most out of your Mini Mixer.
MINI MIXER OVERVIEW:
The Mini Mixer is a full featured multi-channel mixer designed to delive the highest quality
sound for the best value.
The mini mixer is the solution when you are looking for a high quality, Iow-cost compact
audio mixer for personal studio and live applications. This was built to
suit a variety of applications, from desktop recording and AV production, to samller live
performances. Mini mixer offer no-nonsense mixing platforms-anywhere quality sound is
required. The layout of the controls is straightforward, so first time user's can be up and
mixing in no time. Feature like -10dB and line-level inputs and outputs, accurate 4-segment
meters, 3 band EQ, phantom power -as well as 1/8" and 1/4" headphone outputs provided
added mix and monitoring flexibility.
2
OPERATING MANUAL AND USER GUIDEOPERATING MANUAL AND USER GUIDE
FEATURESFEATURES
Mini Size,light weight
MP3 Player With USB jack
High Quality Multi-Channel Mixer
6/8/10/12 Channels
Channels
XLR+TRS balanced inputs
3 band (Low/Mid/High) EQ
Gain adjustment
EFX level control
L/R pan control
Phantom Power
Clip LED
Stereo Channels
TRS balanced inputs
2 band (Low/High) EQ
EFX level control
Balance adjustment
-10dB/ +4dB switch
2 x 2 Track (2TK) inputs (RCA + 3.5mm)
2TK to Mains/ Headphones Switches
Digital EFX: 16 effects
Headphone Outputs (TRS + 3.5mm) with level control
3
MIXER FRONT PANELMIXER FRONT PANEL
MINI MIXER 6/8/10/12 CHANNEL
4
