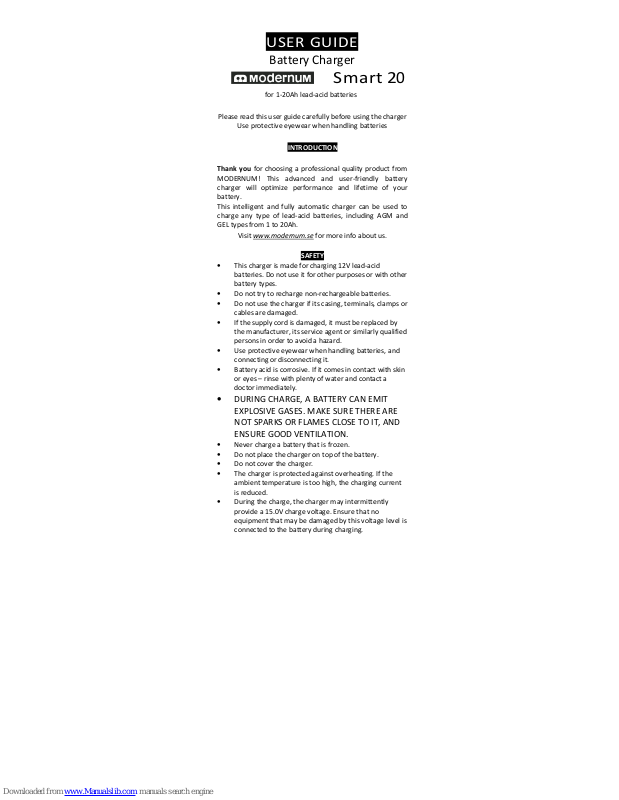

Modernum Smart 20 User Manual

USER GUIDE

Battery Charger

Smart 2

0

for 1-20Ah lead-acid batteries

Please read this user guide carefully before using the charger

Use protective eyewear when handling batteries

INTRODUCTION

Thank you for choosing a professional quality product from

MODERNUM! This advanced and user-friendly battery
charger will optimize performance and lifetime of your
battery.
This intelligent and fully automatic charger can be used to
charge any type of lead-acid batteries, including AGM and
GEL types from 1 to 20Ah.

Visit www.modernum.se for more info about us.

SAFETY

• This charger is made for charging 12V lead-acid
batteries. Do not use it for other purposes or with other
battery types.

• Do not try to recharge non-rechargeable batteries.

• Do not use the charger if its casing, terminals, clamps or

cables are damaged.

• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

• Use protective eyewear when handling batteries, and
connecting or disconnecting it.

• Battery acid is corrosive. If it comes in contact with skin
or eyes – rinse with plenty of water and contact a
doctor immediately.

• DURING CHARGE, A BATTERY CAN EMIT
EXPLOSIVE GASES. MAKE SURE THERE ARE
NOT SPARKS OR FLAMES CLOSE TO IT, AND
ENSURE GOOD VENTILATION.

• Never charge a battery that is frozen.

• Do not place the charger on top of the battery.

• Do not cover the charger.

• The charger is protected against overheating. If the

ambient temperature is too high, the charging current
is reduced.

• During the charge, the charger may intermittently
provide a 15.0V charge voltage. Ensure that no
equipment that may be damaged by this voltage level is
connected to the battery during charging.

• THIS APPLIANCE CAN BE USED BY CHILDREN
AGED FROM 8 YEARS AND ABOVE AND
PERSONS WITH REDUCED PHYSICAL,
SENSORY OR MENTAL CAPABILITIES OR LACK
OF EXPERIENCE AND KNOWLEDGE IF THEY
HAVE BEEN GIVEN SUPERVISION OR
INSTRUCTION CONCERNING USE OF THE
APPLIANCE IN A SAFE WAY AND
UNDERSTAND THE HAZARD INVOLVED.
CHILDREN SHALL NOT PLAY WITH THE
APPLIANCE. CLEANING AND USER
MAINTENANCE SHALL NOT BE MADE BY
CHILDREN WITHOUT SUPERVISION.

• Make sure that the charger switched to maintenance
mode after normal charging is completed, if you want
to leave it unattended and connected for a long time. If
it does not leave charge mode after maximum time,
disconnect charger from the battery. See technical
specifications below for info about time limit.

• All batteries will eventually fail. If that happens during
charging, the charger will detect it, but there may be
some rare faults in the battery, so do not leave it
charging unattended for longer periods of time.

• You need to have read and understood the full context
of this user guide before you start using the battery
charger.

GETTING STARTED

1. Connecting the charger: The battery terminal not
connected to the chassis has to be connected first. The
other connection is to be made to the chassis, remote
from the battery and fuel line. The battery charger is
then to be connected to the supply mains. The red
clamp should connect to the positive (+) pole of the
battery and the black clamp to the negative (-) pole.
For stand-alone batteries: Connect the red clamp to the
battery’s positive (+) pole, and then the black clamp to
the battery’s negative (-) pole. Then connect the
battery charger to the supply mains.

2. A constant green light means the battery is fully
charged.

3. After charging is complete, the charger will switch to a
maintenance mode to keep the battery fully charged as
long as charger is plugged in to the mains.
