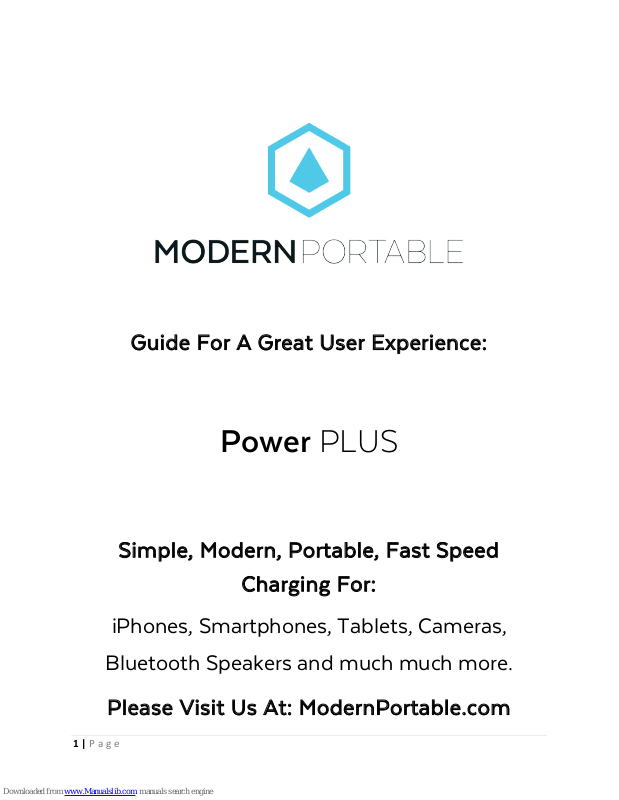

Guide For A Great User Experience:
Simple, Modern, Portable, Fast Speed
Charging For:
Please Visit Us At: ModernPortable.com
Power PLUS
iPhones, Smartphones, Tablets, Cameras,
Bluetooth Speakers and much much more.
1 | Page
Thank you very much for purchasing the Power
Table of Contents:
PLUS Power Bank Charger by Modern Portable.
You are going to LOVE IT!
1. What is Included?
2. Tech Specs
3. How To Charge Your Power PLUS Power Bank
4. How To Charge Your Device With Your Power PLUS
Power Bank
5.
How To Turn The LED Flash Light On & Off With Your
Power PLUS Power Bank
6. Important Notes and More Information
2 | Page
1. What is Included?
2. Tech Specs
• The Power PLUS Power Bank Charger by Modern Portable
• A Micro USB charging cable to charge your Power Bank
Input Port – DC 5V / 1 Amp
Dual Output Ports – DC 5V / 1 Amp
Capacity – 8,400 mAh
Size – 103.5mm x 46.5mm x 23mm
Weight – 4.18 ounces
3 | Page
3. How To Charge Your Power PLUS Power Bank
First time you charge the
Power PLUS allow to charge for 8 to 10 hours before first
use.
On the top edge of the Power PLUS are indicator lights for
the percentage of charge that it currently has. A blue light
will illuminate when charging.
Charging time normally takes approximately 7 to 8
hours at 1 Amp.
• Plug the provided Micro USB cable into the Power PLUS
Micro USB Input Port located on the side
• Insert the other end of the USB cable into either an AC wall
adaptor plugged into a wall electrical socket (Not included
but the same adapter you would normally use to charge your
smart phone) or a USB port on your laptop or computer
(Please view image below)
4 | Page
4. How To Charge Your Device With Your Power
PLUS Power Bank
1. First press the button on the top of the Power PLUS to
turn on
2. Plug your USB Cable into the Power PLUS USB charging
port (either output port) and connect the other end of your
cable into you device
3. Once your device is plugged into the Power PLUS it will
instantly begin charging your device properly
4. Indicator lights will illuminate to show what percentage of
charge the Power PLUS currently has available
The Power PLUS is engineered to charge all USB devices
(current input must be higher than 50 mA). There are two
USB output ports. Once the Power PLUS has stopped
charging your device you are able to turn off the Power PLUS
by holding down the button on the top until the indicator
lights turn off. If you need to charge your Power PLUS please
follow instructions for charging the Power PLUS in Section 3
(above).
5 | Page
5. How To Turn The LED Flash Light On & Off With
Your Power PLUS Power Bank
1. First press the button on the top of the Power PLUS to turn
on
2. Once the blue power meter LED lights are visible, to turn on
flash light LED hold down the top button for 3 to 5 seconds
3. To turn off the flash light LED hold down the top button for
3 to 5 seconds
6 | Page
6. Important Notes and More Information
FAQ
www.ModernPortable.com
Contact Us Email
Corp Bulk Orders
• When charging your Power PLUS Power Bank do not charge other devices
from the Power PLUS Power Bank at the same time
• Keep your Power PLUS Power Bank out of extreme heat/cold, damp
places, water and away from flammable items
• Avoid hitting, throwing or dropping your Power PLUS Power Bank
• When charging your Power PLUS Power Bank, approximately 20% to 35%
of the external battery’s capacity will be consumed due to power lost from
heat produced by circuit, the conversion of the voltage and the cable
charging/your device. Industry average is currently 35% for the efficiency
rate
• For a fully charged Power PLUS Power Bank it can take up to 8 hours
depending on the output power of the customer provided wall
charger. Depending on the wall charger output power the fourth LED
Power Meter light will stay blinking. To check the current charge level
unplug the Power PLUS Power Bank and tap the on/off button. The LED
Power Meter lights will then illuminate and 1 LED light is 1% to 25% charged,
2 LED lights is 26% to 50% charged, 3 LED lights is 51% to 75% charged and
4 LED lights is 76% to 100% full charged
: Visit us at
Modern Portable is designed & sold in the San Francisco Bay Area; Assembled in China
for all frequently asked questions
: Support@ModernPortable.com
: Sales@ModernPortable.com
7 | Page
