TM

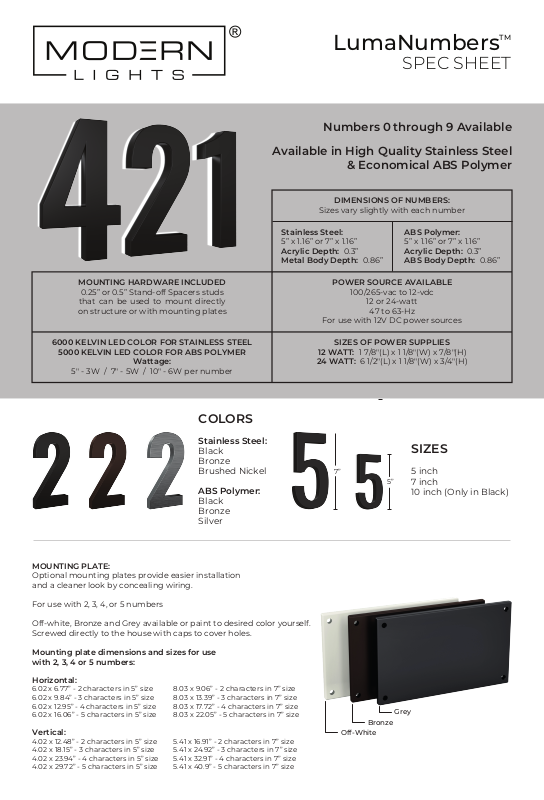

LumaNumbers
SPEC SHEET
Numbers 0 through 9 Available
Available in High Quality Stainless Steel
& Economical ABS Polymer
DIMENSIONS OF NUMBERS:
Sizes vary slightly with each number
MOUNTING HARDWARE INCLUDED
0.25” or 0.5” Stand-off Spacers studs
that can be used to mount directly
on structure or with mounting plates
6000 KELVIN LED COLOR FOR STAINLESS STEEL
5000 KELVIN LED COLOR FOR ABS POLYMER
Wattage:
5" - 3W / 7" - 5W / 10" - 6W per number
COLORS
Stainless Steel:
Black
Bronze
Brushed Nickel
ABS Polymer:
Black
Bronze
Silver
Stainless Steel:
5” x 1.16” or 7” x 1.16”
Acrylic Depth: 0.3”
Metal Body Depth: 0.86”
POWER SOURCE AVAILABLE
100/265-vac to 12-vdc
12 or 24-watt
47 to 63-Hz
For use with 12V DC power sources
SIZES OF POWER SUPPLIES
12 WATT: 1 7/8″(L) x 1 1/8″(W) x 7/8″(H)
24 WATT: 6 1/2″(L) x 1 1/8″(W) x 3/4″(H)
7”
ABS Polymer:
5” x 1.16” or 7” x 1.16”
Acrylic Depth: 0.3”
ABS Body Depth: 0.86”
SIZES
5 inch
5”
7 inch
10 inch (Only in Black)
MOUNTING PLATE:
Optional mounting plates provide easier installation
and a cleaner look by concealing wiring.
For use with 2, 3, 4, or 5 numbers
Off-white, Bronze and Grey available or paint to desired color yourself.
Screwed directly to the house with caps to cover holes.
Mounting plate dimensions and sizes for use
with 2, 3, 4 or 5 numbers:
Horizontal:
6.02 x 6.77” - 2 characters in 5” size
6.02 x 9.84” - 3 characters in 5” size
6.02 x 12.95” - 4 characters in 5” size
6.02 x 16.06” - 5 characters in 5” size
Vertical:
4.02 x 12.48” - 2 characters in 5” size
4.02 x 18.15” - 3 characters in 5” size
4.02 x 23.94” - 4 characters in 5” size
4.02 x 29.72” - 5 characters in 5” size
8.03 x 9.06” - 2 characters in 7” size
8.03 x 13.39” - 3 characters in 7” size
8.03 x 17.72” - 4 characters in 7” size
8.03 x 22.05” - 5 characters in 7” size
5.41 x 16.91” - 2 characters in 7” size
5.41 x 24.92” - 3 characters in 7” size
5.41 x 32.91” - 4 characters in 7” size
5.41 x 40.9” - 5 characters in 7” size
Grey
Bronze
Off-White
