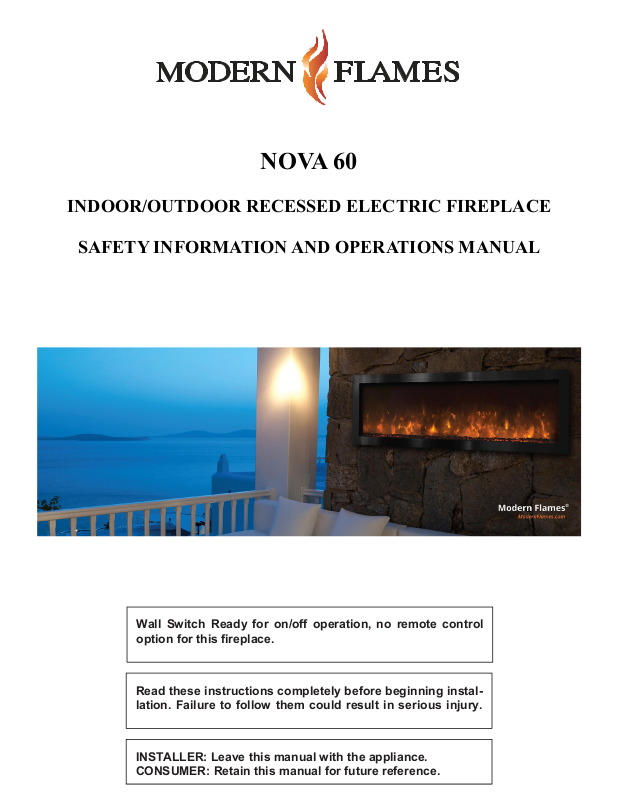

NOVA 60
INDOOR/OUTDOOR RECESSED ELECTRIC FIREPLACE
SAFETY INFORMATION AND OPERATIONS MANUAL
Wall Switch Ready for on/off operation, no remote control
option for this fireplace.
Read these instructions completely before beginning installation. Failure to follow them could result in serious injury.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Page 2
TABLE OF CONTENTS
Important Instructions .................................. 2
Contractor Instructions ................................. 2
Unpacking and Testing ................................ 2
Product Dimensions ..................................... 3
Box Contents ............................................... 3
IMPORTANT INSTRUCTIONS
USER INSTRUCTIONS
Power Data .................................................. 3
Locating Fireplace ....................................... 4
Installation ................................................... 4
Operation .................................................... .6
Service Parts .............................................. .6
WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage. Refer to this manual.
For assistance or additional information,
consult a qualified installer.
When using any electrical devices, basic
precautions should always be followed to
reduce the risk of fire, electric shock and
injury to persons, including the following:
1. Read all instructions before using this
device.
2. Always use properly grounded fused and
CONTRACTOR INSTRUCTIONS
polarized outlets.
3. Use this device only as described in this
manual. Any other use not recommended
by the manufacturer may cause fire,
electric shock or injury to persons.
4. Always use ground fault protection where
required by electrical codes.
5. Always disconnect power before
performing any cleaning, maintenance or
relocation of device.
6. To prevent electric shock or fire, always
use a certified electrician should new
circuits or outlets be required.
7. When transporting or storing device, keep
in a dry place.
8. Do not let children play with the appliance
Home builder or contractor must provide the following:
Framed opening according to chart on page 5. Opening should be waterproof if on an exterior
wall.
Switched 120V electrical flexible hardwire power supply. Switch may be 120V wall switch, time
clock or circuit breaker at customer’s option.
UNPACKING AND TESTING
Carefully remove unit from box. Prior to
permanently installing unit, test to make sure
unit operates properly. A qualified electrician
should add a flexible 15 amp 120V circuit per
local building codes.
2
WARNING: Do not operate the unit if it is
damaged or has malfunctioned. If you
suspect the unit is damaged, return the
unit to an authorized service facility for
examination, electrical or mechanical
adjustment or repair.
Page 3
USER INSTRUCTIONS
PRODUCT DIMENSIONS
60”
54”
18 7/8”
Model Viewing Area Face Dimensions Framing Dimensions
NOVA 60 54” W x 12 7/8” H 60” W x 18 7/8” H 57 1/4” W x 17 7/8” H x 5” D
12 7/8”
7 1/8”
Model Voltz/HZ Amps Lamps Rotor motor
NOVA 60
AC 120V/60Hz
1.5 Amps
Nova 60 Fireplace
Coal Bed Media
Installation Hardware
Installation Manual/Owners Manual
POWER DATA
LED
BOX CONTENTS
DC 12V
CCW 15/18 r/min
3
Page 4
LOCATING FIREPLACE
CAUTION: Wear gloves and safety
glasses for protection during installation
and maintenance.

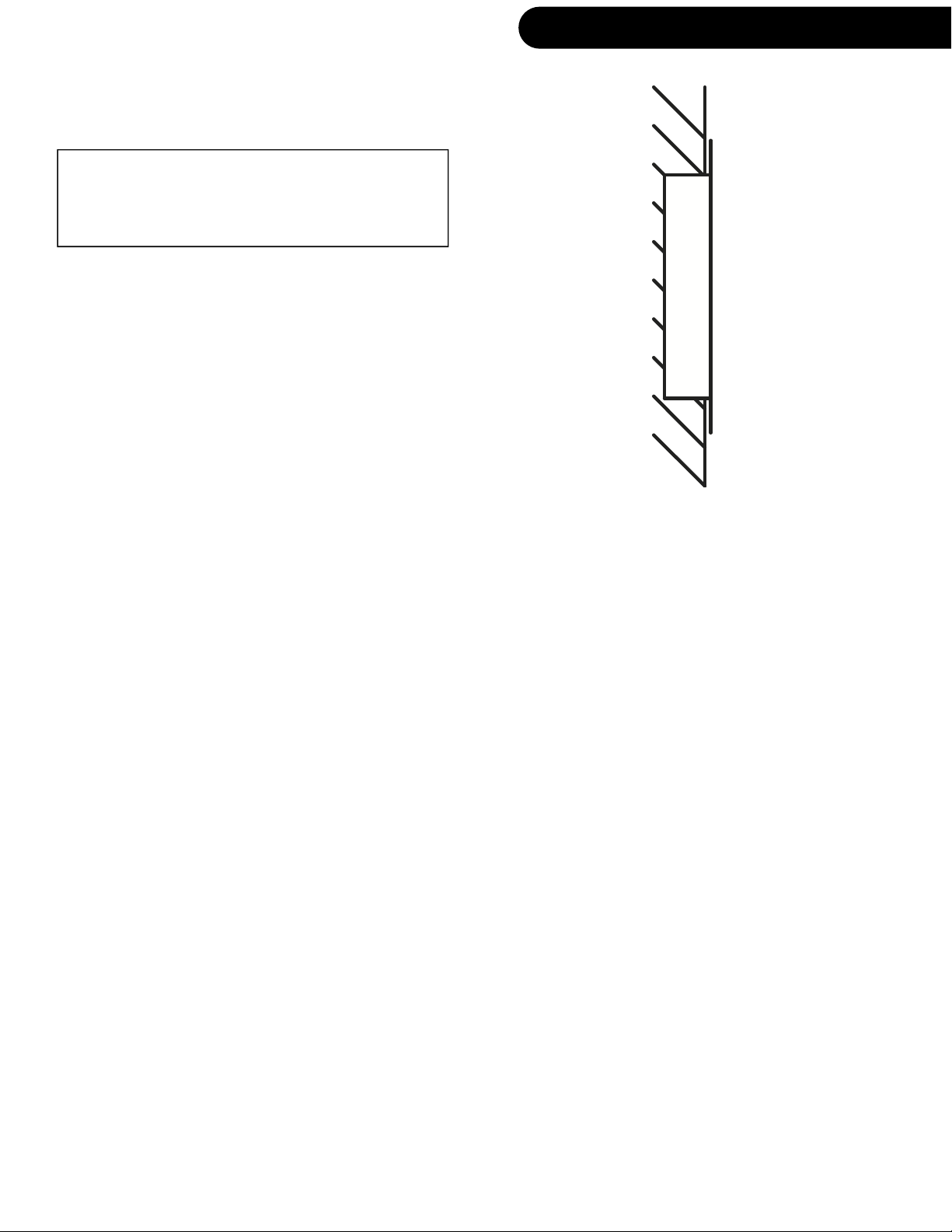

This electric fireplace must be installed
framed in to a wall. The Modern Flames Nova
60 is gasket sealed around the perimeter and
can be used in interior or exterior applications.
Modern Flames suggests that exterior
applications be under cover such as a patio.
INSTALLATION
Recessed
Home builder or contractor must provide the following:
Framed opening according to chart on page 5. Opening should be waterproof if on an exterior
wall.
Switched 120V electrical flexible hardwire power supply. Switch may be 120 wall switch, time
clock or circuit breaker at customer’s option.
INSTALLATION
Installing fireplace
Select a suitable location that is not susceptible to moisture. A qualified electrician should add a
flexible 15 amp 120 volt circuit per local building codes. Note: Follow all national and local
electrical codes.
4
Page 5
INSTALLATION

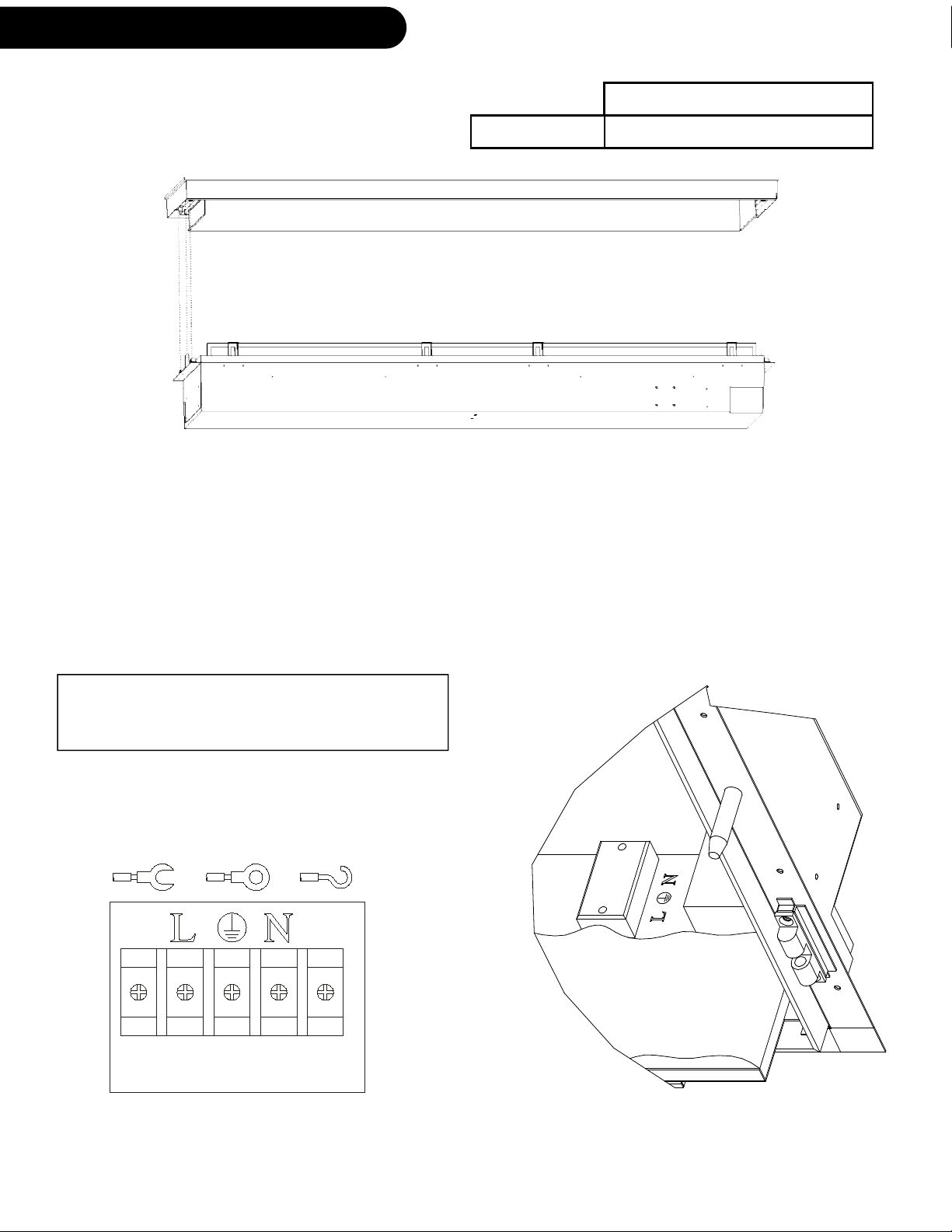

Recessed Installation:
1. Prepare frame opening according to chart.
Frame opening is larger than the fire unit.
2. Set the fireplace on a clean flat surface with the glass face face-up. Start from any corner of the
decorative glass face and gently pull up until the ball-catches start to separate. Once you have
separated the glass face from the fire unit, place the decorative glass face in a safe location.
Nova 60 57 1/4” W x 17 1/8” H x 5” D
Framing Dimensions
To be performed by a qualified
electrician according to local building
codes.
3. Connect hard wire to the terminal block
according to the diagram below. Choose any
connector type according to local building
code.
Terminal block
Bottom right corner of fire unit
5
Page 6
INSTALLATION

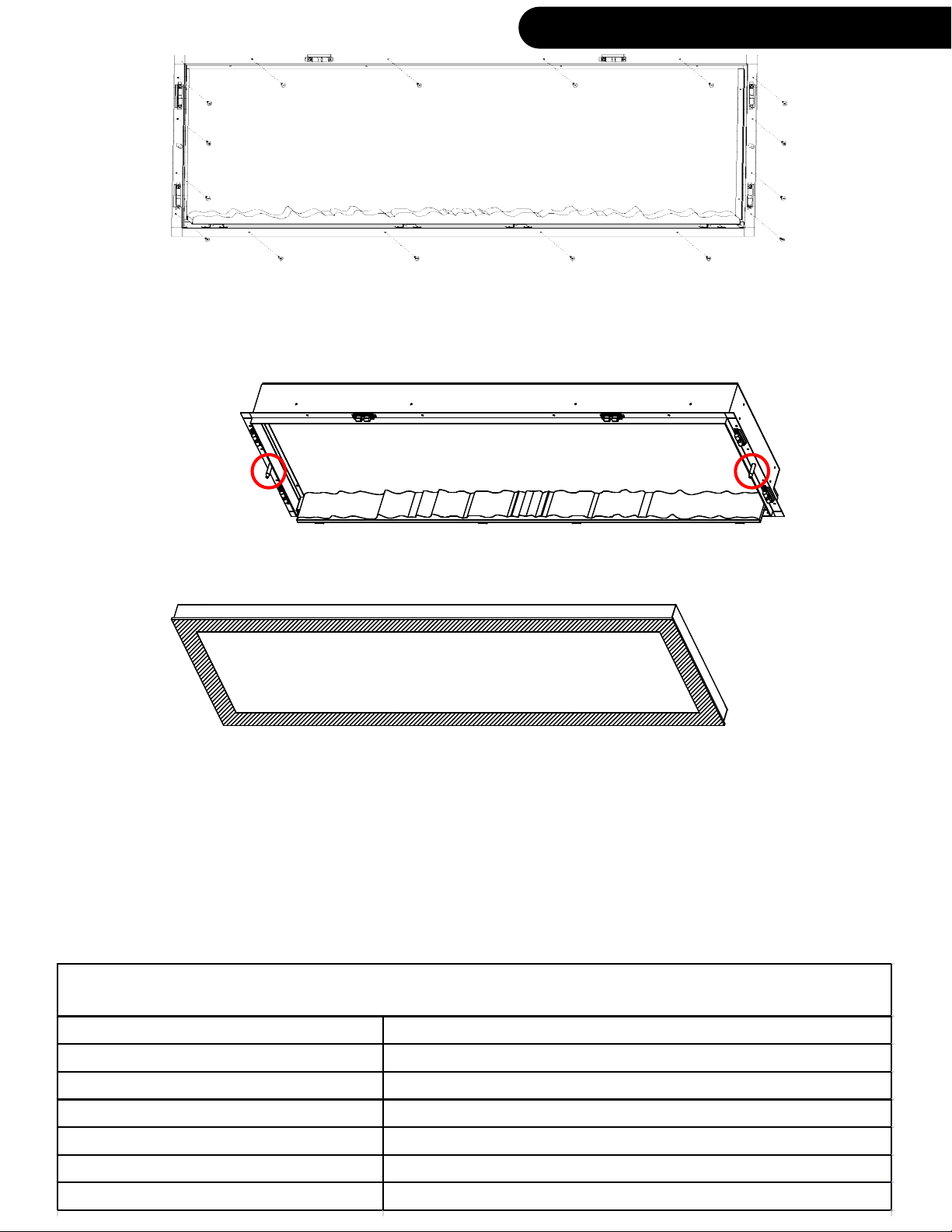

4. Secure fire unit to the finished framed opening with the provided screws. This installation should
only be made in to wood studs or solid surface and should not use drywall anchors to secure the
fireplace. Home builder or contractor will provide appropriate anchors for solid surface installation.
Fireplace will stand proud of the finished wall opening by 2 1/4 inches. This is a semi-permanent
Index posts
installation. Remove screws to relocate.
5. To secure the glass face, line up the index posts (center right and center left) on the fire unit with
the holes on the back of the decorative glass face. Gently push the glass face onto these posts,
starting at any corner, until you hear the ball-catches start to engage. Continue around the entire
OPERATION
This fireplace has no controls or remote for operation. It is simply operated by the wall switch (time
clock or circuit breaker) installed by the contractor or home builder. REMINDER: If there is no wall
switch installed, fireplace will turn on if there is power to the fireplace.
SERVICE PARTS
PART# DESCRIPTION
NOVA-SM2 SPINDLE MOTOR
NOVA-LED60 LED LIGHT STRING NOVA 60
NOVA-PA12 POWER ADAPTOR 12V DC
6
NOVA-PCB2 PC BOARD
NOVA60G-FACE BLACK GLASS DECORATIVE FACE
NOVA60BS-FACE BLACK STAINLESS DECORATIVE FACE
Page 7
MAINTENANCE
NOTES
7
Page 8
8

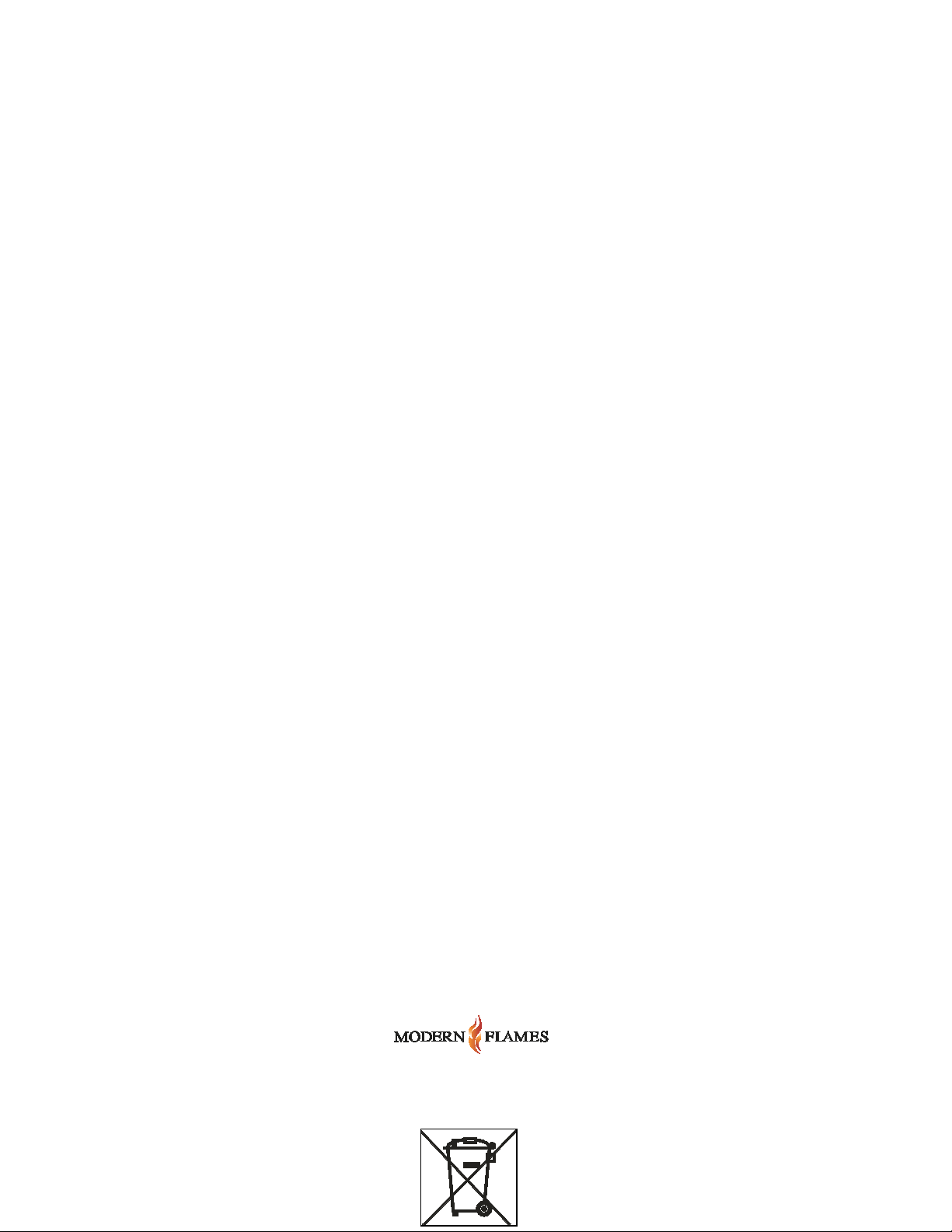

© 2016
www.modernflames.com
Please dispose of properly.
