INSERT FIRE 3824
SAFETY INFORMATION AND OPERATIONS MANUAL
Read these instructions completely before beginning installation. Failure to follow them
could cause a heater malfunction resulting in serious injury and/or property damage.
WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it
in areas where gasoline, paint or flammable liquids are or are stored.
This fireplace meets the construction and safety standards of H.U.D. for application in
manufactured homes when installed according to these instructions.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
USER INSTRUCTIONS USER INSTRUCTIONS
TABLE OF CONTENTS
Important Instructions .................................. 2
Power Data .................................................. 3
Product Dimensions .................................... 4
Box Contents ............................................... 4
Unpacking and Testing ................................ 5
Locating Fireplace ....................................... 5
IMPORTANT INSTRUCTIONS
WARNING: Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified
installer.
CAUTION: Do not expose the heater to
the elements (such as rain, etc).
Do not place clothing or other flammable
material on or near firebox. Never place
any objects on the fireplace.
Carefully supervise young children when
they are in the room with fireplace.
Fireplace becomes very hot when running. Keep children and adults away
from hot surfaces to avoid burns or
clothing ignition. Fireplace will remain
hot for a time after shutdown. Allow surfaces to cool before touching.
CAUTION: In order to avoid overheating, do not cover the heater.
Do not install fireplace directly on carpet
or similar surface which may restrict air
circulation beneath unit.
Installation .................................................. 6
Operation ................................................... 8
Frequently Asked Questions ...................... 9
Troubleshooting ......................................... 9
Cleaning and Maintenance Instructions ..... 10

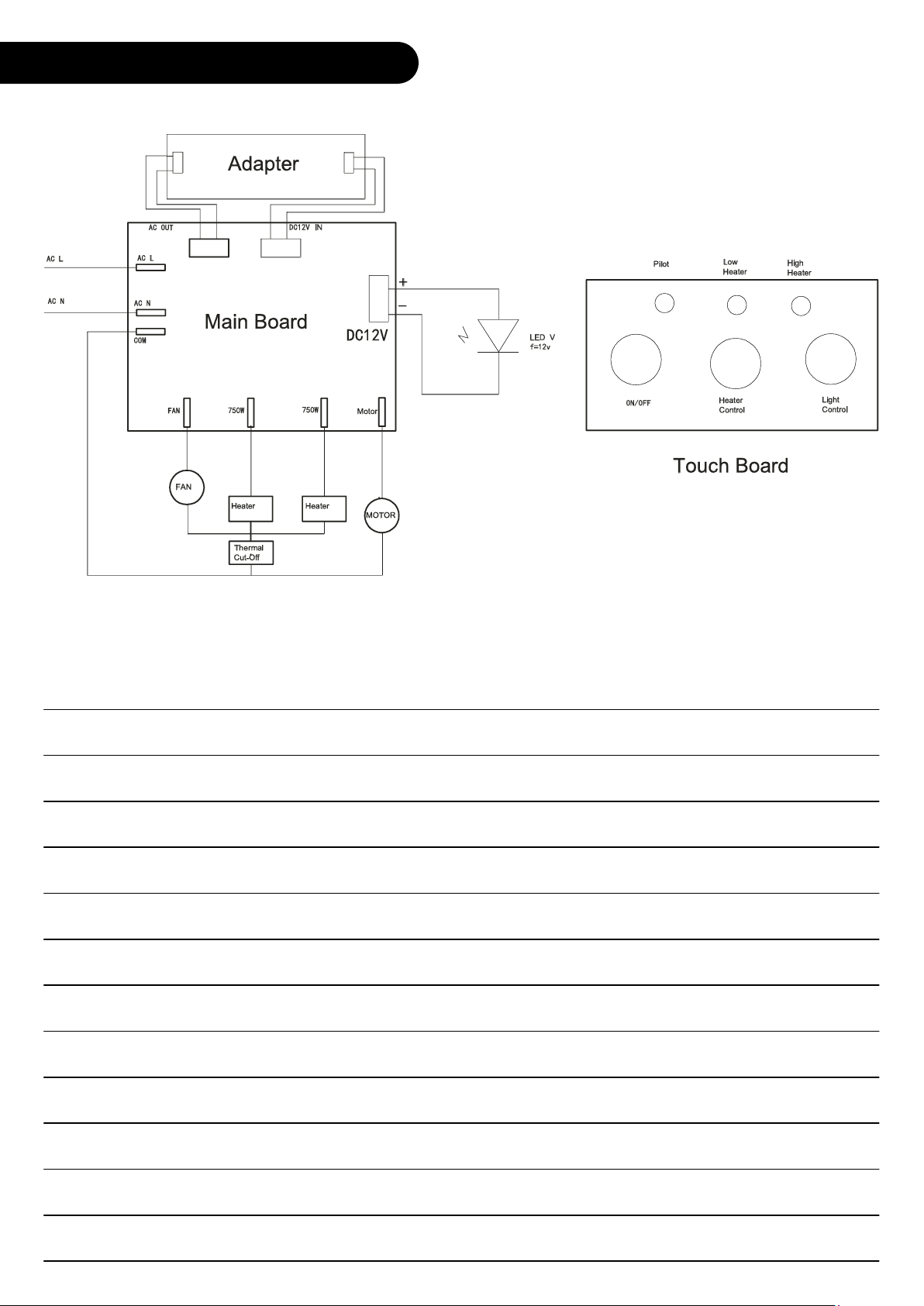

Wiring Diagram .......................................... 11
When using electrical heaters, basic precautions should always be followed to reduce the
risk of fire, electric shock and injury to
persons, including the following:
1. Read all instructions before installing or
using this heater.
2. This heater is hot when in use. To avoid
burns, do not let bare skin touch hot surfaces.
Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains
at least 3 feet (0.9m) from the front of the
heater and keep them away from the sides
and rear.
3. Extreme caution is necessary when any
heater is used by or near children or invalids
and whenever the heater is left operating and
unattended.
4. Do not operate any heater after it
malfunctions. Disconnect power at service
panel and have heater inspected by a
reputable electrician before using.
5. Do not use outdoors.
6. To disconnect heater, turn controls to off
and turn off power to heater circuit at main
disconnect panel.
7. Do not insert or allow foreign objects to
enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or
damage the heater.
8. To prevent a possible fire, do not block air
intakes or exhaust in any manner.
9. A heater has hot and arcing or sparking
parts inside. Do not use it in areas where
gasoline, paint or flammable vapors or liquids
are used or stored.
10. Use this heater only as described in this
manual. Any other use not recommended by
the manufacturer may cause fire, electric
shock or injury to persons.
11. This heater includes a visual alarm to warn
that parts of the heater are getting excessively
hot. If the alarm illuminates, immediately turn
2
USER INSTRUCTIONS
IMPORTANT INSTRUCTIONS
the heater off and inspect for any objects on
or adjacent to the heater that may have
blocked the airflow or otherwise caused high
temperatures to have occurred. DO NOT
OPERATE THE HEATER WITH THE ALARM
ILLUMINATING.
12. Do not operate any heater with a damaged
cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner.
Return heater to authorized service facility for
examination, electrical or mechanical
adjustment, or repair.
13. This heater is not intended for use in
bathrooms, laundry areas and similar indoor
POWER DATA
Volts/HZ Amps AC 120V/60Hz 15 Amps
locations. Never locate heater where it may
fall into a bathtub or other water container.
14. Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or the
like. Arrange cord away from traffic area and
where it will not be tripped over.
15. Avoid the use of an extension cord
because the extension cord may overheat and
cause a risk of fire. However, if you have to
use an extension cord, the cord shall be No.
12 AWG minimum size and rated not less
than 1500 watts.
16. SAVE THESE INSTRUCTIONS
Insert Fire 3824
Heater AC 120V/60Hz 750W/1500W
Lamps LED 12V
Rotor motor AC 120V/60Hz 4W CCW 15/18 r/min
Shipping Size 40” x 26” x 12”
3
USER INSTRUCTIONS INSTALLATION

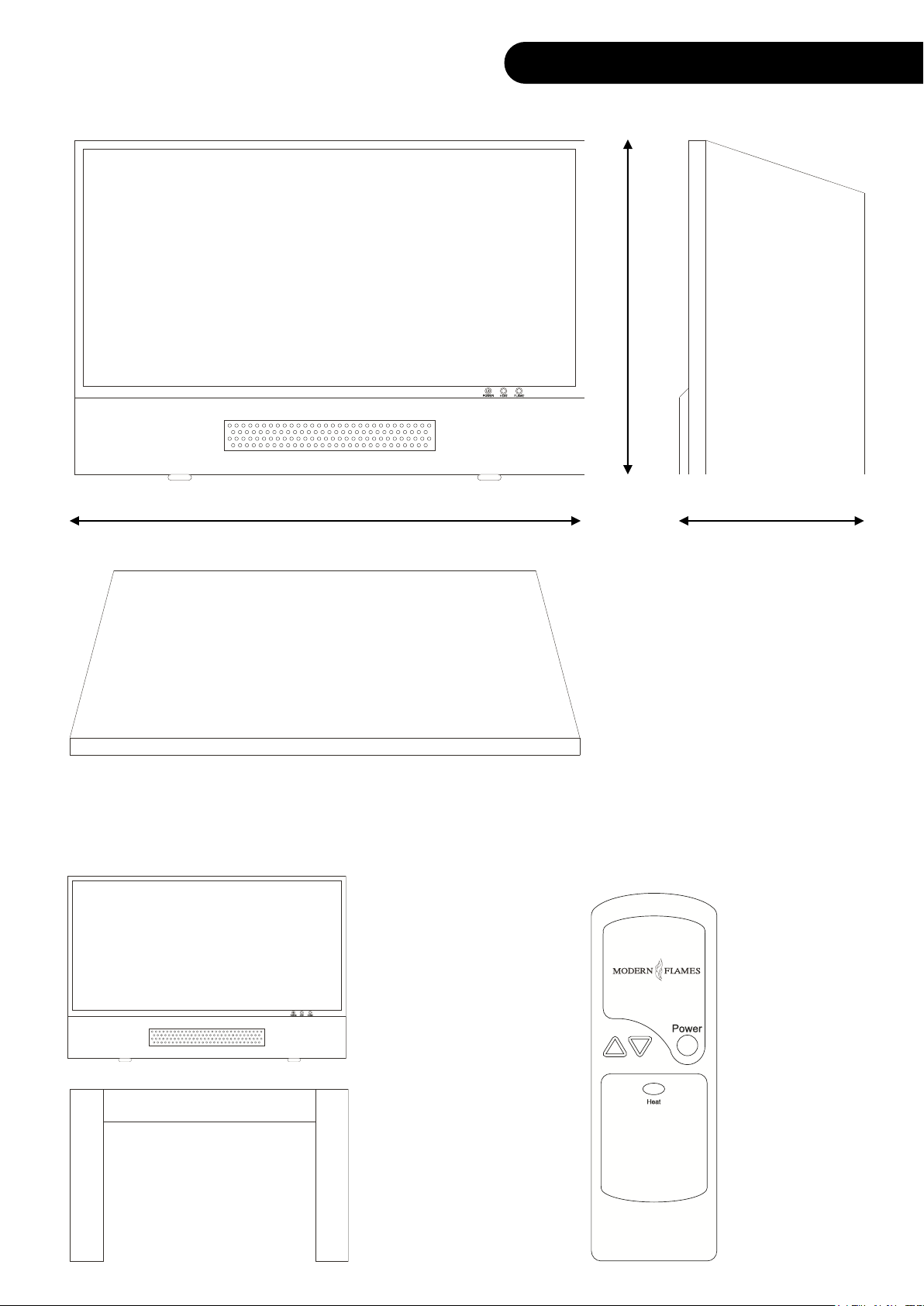

PRODUCT DIMENSIONS
19”
29” 10 1/2”
Insert Fire 3824—Front View
29” W x 19” H x 10 1/2” D
BOX CONTENTS
1 Fire Unit
Optional trim
1 Remote
4
INSTALLATION

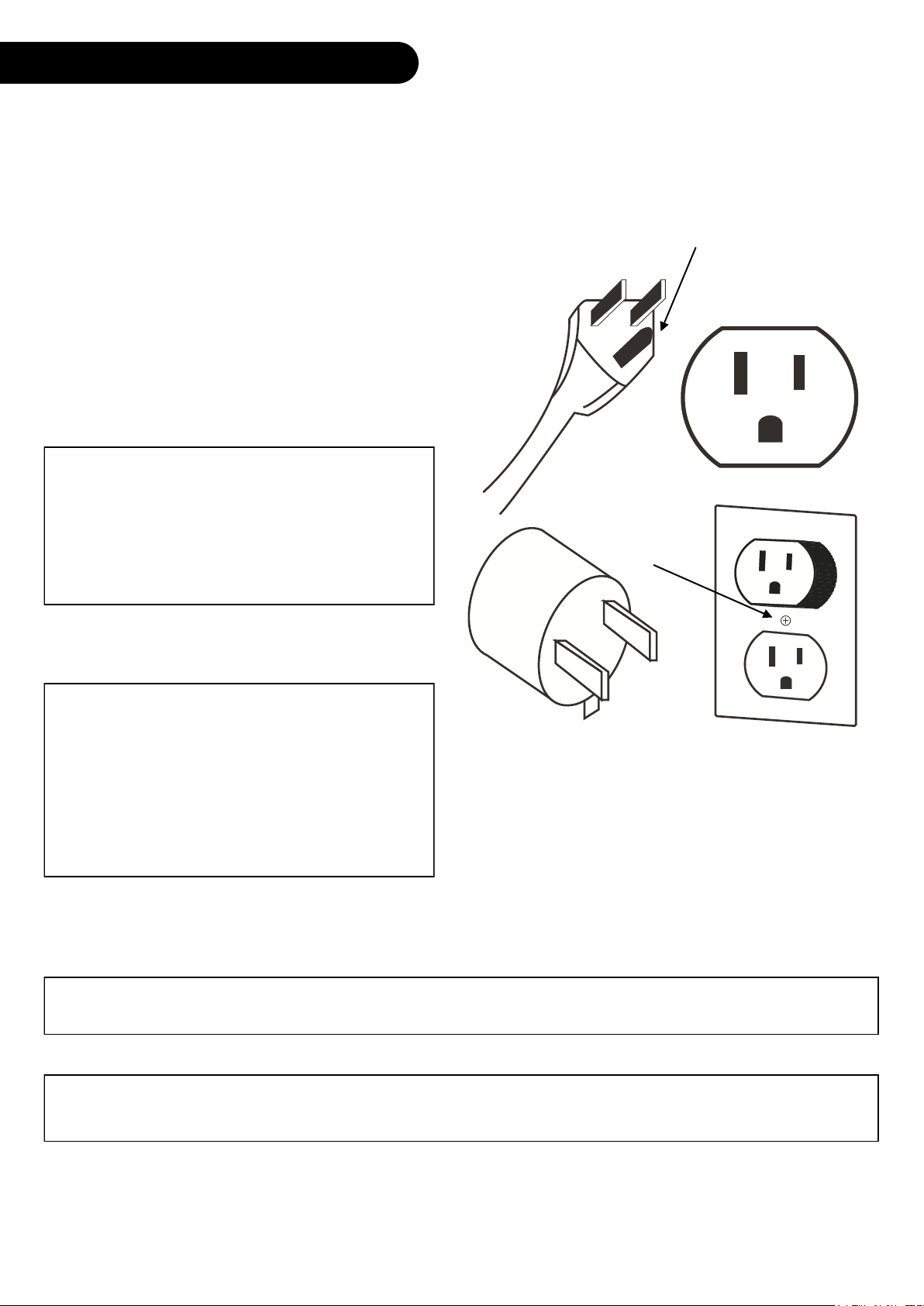

This heater is for use on 120 volts. The cord
has a plug as shown at A. An adapter as
shown at C is available for connecting threeblade grounding-type plugs to two-slot receptacles. The green grounding lug extending
from the adapter must be connected to a permanent ground such as a properly grounded
outlet box. The adapter should not be used if
a three-slot grounded receptacle is available.
UNPACKING AND TESTING
Grounding Pin
WARNING: Do not operate the unit if it is
damaged or has malfunctioned. If you
suspect the unit is damaged, return the
unit to an authorized service facility for
examination, electrical or mechanical adjustment or repair.
CAUTION: The unit's power supply cord
must be connected to a properly
grounded and protected 120-volt outlet.
Always use ground fault protection
where required by the electrical code.
Never use an extension cord with this
product.
A
Metal Screw
C
LOCATING FIREPLACE
CAUTION: Do not locate in a moist room such as a bathroom or laundry room.
CAUTION: Wear gloves and safety glasses for protection during installation and maintenance.
This fire is designed to fit into existing fireplaces as an insert to replace a wood or gas burning fire.
This fire can also be used in cabinets or recessed wall openings.
5
INSTALLATION INSTALLATION
INSTALLATION
WARNING - RISK OF FIRE!
The power cord must not be pinched or
against a sharp edge. Secure cord to
avoid tripping or snagging to reduce the
risk of fire, electric shock or personal injury.
Do not run cord under carpeting. Do not
cover cord with throw rugs, runners or
the like. Arrange cord away from traffic
areas and where it will not be tripped
over.
WARNING - RISK OF FIRE!
To prevent a possible fire, do not block
air intake or exhaust in any manner. Do
not use on soft surfaces where openings
may become blocked.
WARNING - RISK OF FIRE!
Do not blow or place insulation against
the firebox.
WARNING: If the information in these instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or death.
To reduce the risk of fire do not store or
use gasoline or other flammable vapors
in the vicinity of this or any other heater.
Installing fireplace
Select a suitable location that is not susceptible to moisture and is a safe distance from
drapes, furniture and high traffic areas. A
qualified electrician should add an electrical
outlet per local building codes. The included
power cord is 73 1/2 inches long, the outlet
should be installed within 70 inches of the rear
right corner of the fireplace.
Note: Follow all national and local electrical
codes.
WARNING: If the fireplace has a gas line
present, a plumber or fireplace technician
should cap the gas supply according to
local building codes.
WARNING: Avoid the use of an extension
cord because the extension cord may
overheat and cause a risk of fire. However,
if you have to use an extension cord, the
cord shall be No. 12 AWG minimum size
and rated not less than 1500 watts.
6
INSTALLATION

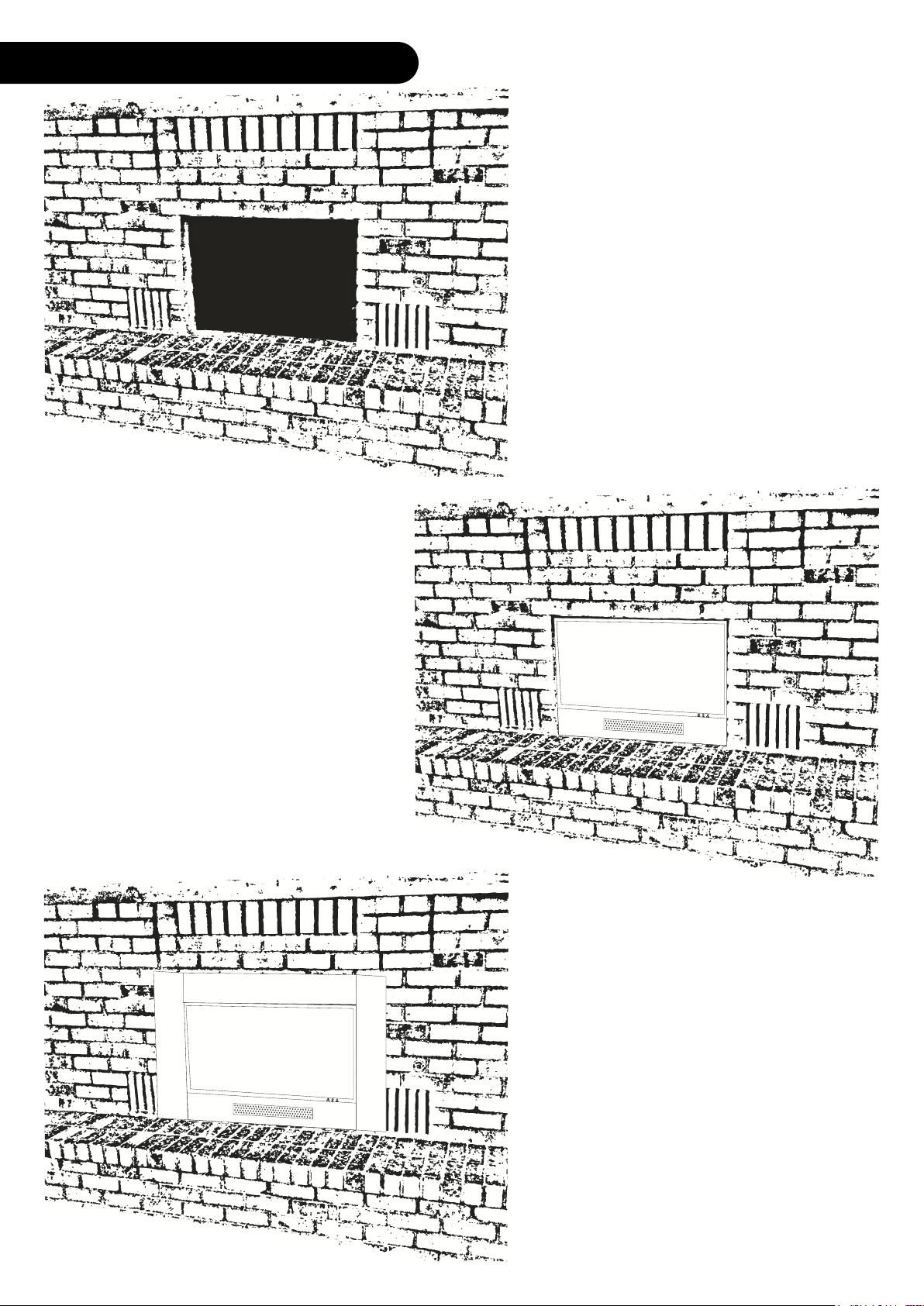

1. Make sure the fireplace is clean and
free of debris. Install the fire feature
according to the instructions included
with that feature (the fire features
include log set or contemporary glass
burner.) Plug in the fire unit.
2. Simply slide the fire unit in to your
existing fireplace.
3. Use the adjustable feet to adjust for
the ash bed in some fireplaces.
4. If desired, use the optional trim to trim
your new fire place.
5. To install the optional trim, remove
the 4 screws on the right and left side
that hold on the glass face. Index the
elongated screw holes on the metal
trim over the screw holes for the glass
face. Replace the screws.
7
OPERATION MAINTENANCE

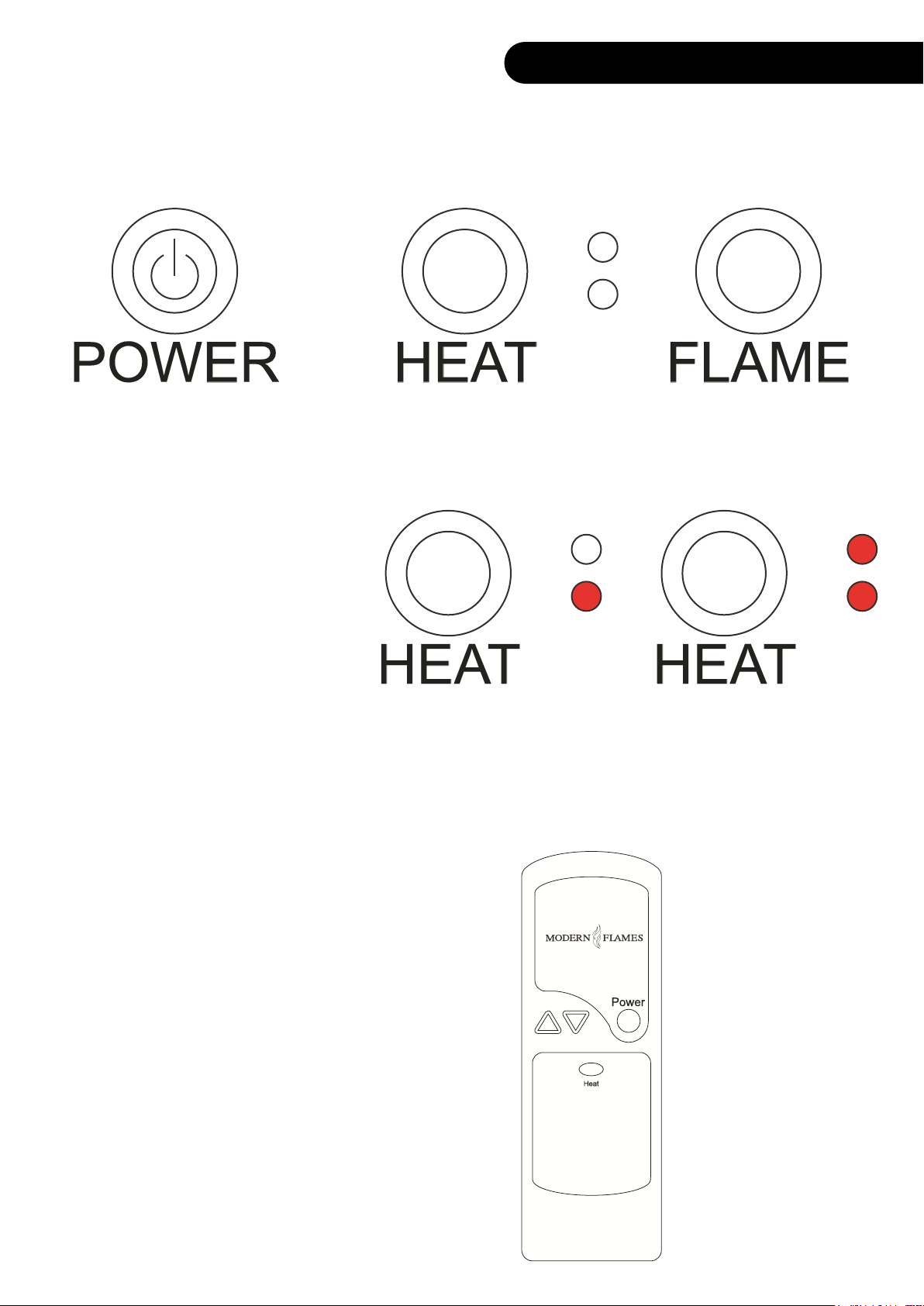

On the lower right corner of the right side of the fire unit, near the power cord, is the main power
switch. Switch this on to begin using the fireplace. Directly below the flame, on the right hand side
are 3 control switches.
To begin operation touch the Power button. The flame image and fire feature will be on at full brightness and the heater will be off.
OPERATION
Pressing the Heat button will start the
heater and fan at low speed. The low
heat indicator will light. Pressing the
Heat button again will turn the heater
on high. The high heat indicator will be
lit. Pressing the Heat button once more
will turn off the heater. The indicator
lights will turn off.
Pressing the Flame button will cycle the brightness of the flame image and fire feature.
The Power and Heat buttons on the
remote function in the same manner as
the buttons on the main unit. The arrow
buttons on the remote control the
brightness of the flame image and fire
feature. Pressing the up arrow will
increase the brightness of the flame
image and fire feature; pressing the
down arrow will decrease the
brightness of the flame image and fire
feature.
Low Heat High Heat
8
MAINTENANCE
Q. How do you program the remote control?
A. The remote comes pre-programmed. No programming is necessary.
Q. What distance can the remote be used from the fireplace?
A. Optimal distance for the remote control is within 10 yards.
Q. Can you turn on the fireplace via the control buttons and off via the remote (or vise versa)?
A. Yes.
Q. Low long will the LED lights last?
A. LED Lamps have a life span of up to 20 years.
Q. Can the fireplace be installed outside?
A. No. Please review the entire safety chapter before installing this fireplace.
Q. Does the fireplace need to be on a dedicated 15 amp circuit?
A. Yes.
Q. How often do the batteries in the remote need to be replaced?
A. Annually, possibly more with heavy use.
Q. Is there a remote receiver in the fireplace that requires batteries?
A. No, only the actual remote requires batteries. The rest of the fireplace runs entirely off of the
main power supply.
FREQUENTLY ASKED QUESTIONS
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Heater does not provide
heat when on
Can operate fireplace
functions with mechanical
controls but not remote
control
TROUBLESHOOTING
A. Disconnect unit from power
A. Wiring is loose
B. Thermal snap disc has been
tripped
C. Heater core is defective C. Replace Heater Core
A. Low Batteries
B. Not aiming control correctly
C. Remote control defective C. Replace remote control
source and inspect for loose
connections
B. Turn unit off and unplug unit for 5
minutes. Plug back in and turn unit
on. If plug cannot be reached, reset
breaker and turn unit back on
A. Replace batteries in remote
control with - 2 AA batteries
B. Aim remote control to the upper
right of the viewing area where
sensor is located
D. Remote Sensor is defective
D. Replace remote sensor inside
fireplace
9
MAINTENANCE MAINTENANCE
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Nothing comes on
Fireplace turns off and
will not turn back on
A. Fireplace is not plugged in to an
electrical outlet
B. Breaker tripped or outlet has no
power
C. Power Switch is not in the “On”
position (bottom right)
D. Safety turnover switch is open
E. Defective component
A. Fireplace has overheated and
safety disc has snapped or circuit
breaker has tripped
A. Check plug
B. Reset breaker, test outlet for
power
C. Turn main power switch to the
“On” position (solid white line is
flush with the fireplace)
D. Make sure that the fire unit is
installed plumb.
E. Qualified service technician
needs to replace motherboard,
transformer or LCD touch control
A. Turn off major power switch and
waiting 5 minutes to turn it back on
or reset circuit breaker
A. Disconnect unit from power
Flame is not visible when
A. Wiring is loose
source and inspect for loose
connections
unit is turned on
B. Motherboard is defective B. Replace motherboard
A. Disconnect unit from power
Fireplace lights up but
A. Wiring for motor is loose
source and inspect for loose
connections from motor
there is no flame image
B. Motor is defective B. Replace motor
A. Apply lithium grease or any
standard grease to contacts with rod
and metal
Fireplace is squeaking
A. Fireplace spindle/ rod is
contacting to metal
when flame image is on
B. Motor is defective B. Replace motor
CLEANING AND MAINTENANCE INSTRUCTIONS
There is very little maintenance involved with your electric fireplace. Please follow the few points below:
On a semi-annual basis unplug the machine from it’s power source and wait for the heating ele-
ment to cool, remove the glass face of the fireplace and dust the fire unit with a dry cloth. Be
careful not to brush any wires that may be exposed as you do this.
To clean the glass face of the fireplace simply use your desired glass cleaner with paper towels.
To clean the air inlets/outlets, wipe with a soft cloth or the nozzle of a vacuum cleaner
Dust can easily build up around the heater area under the appliance. Take particular care to
clean this area on a regular basis to prevent buildup.
10
MAINTENANCE
Wiring
Diagram
WIRING DIAGRAM
Add
NOTES
11
12
© 2013
www.modernflames.com
Please dispose of properly.
Loading...
