CR25
CR33
1
Warnings and Precautions
2
Warnings and Precautions
3
Warnings and Precautions
4
Quick Start On Charging Your Device
Connecting unit to power outlet
Plug the included AC power cord into an AC power outlet to power the unit.
Press the button to power on / off.
Connect y our device to proper USB charging port
5

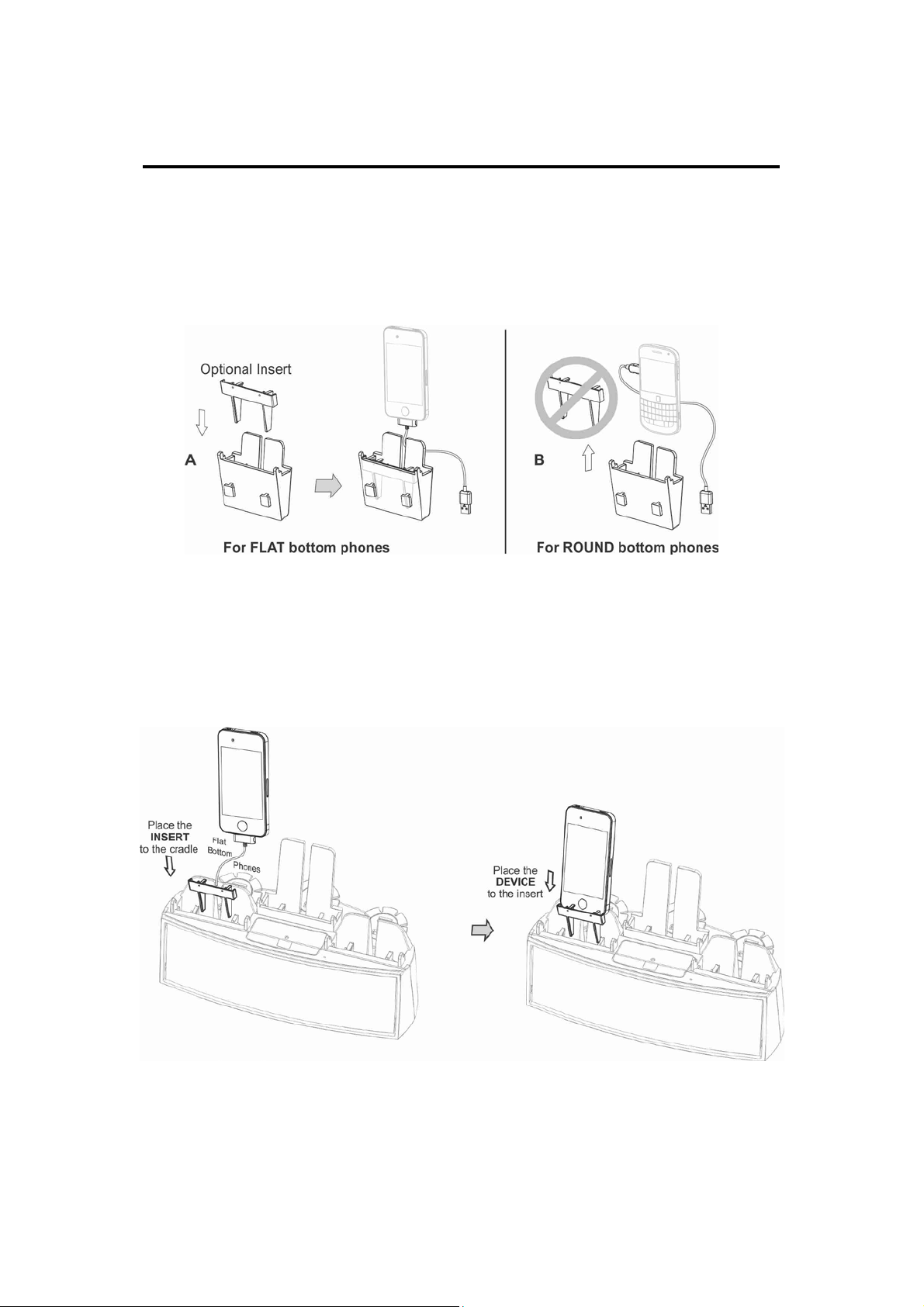

Quick Start Fixing Your De vice
Using the option insert / cradle
Your phone's shape will determine if an insert is needed. Take the insert and
place it to the cradle when use flat bottom phones. Round bottom phones do
not need the insert.
Wrap excess cable around cable organizer leaving enough cable to allow
phoneto be inserted into cradle.
For FLAT bottom phones
6
Quick Start Fixing Your De vice
For ROUND bottom phones, take out the insert.
For TABLETS & MIDs
Put on the TABLETS & MIDs to the fixed Cradle
(two ways of placing: vertical or horizontal):
7
Quick Start Fixing Your De vice
Put on the TABLETS & MIDs to the removable Cradle:
Disconnect and leave the USB cord for easy re-connection
8

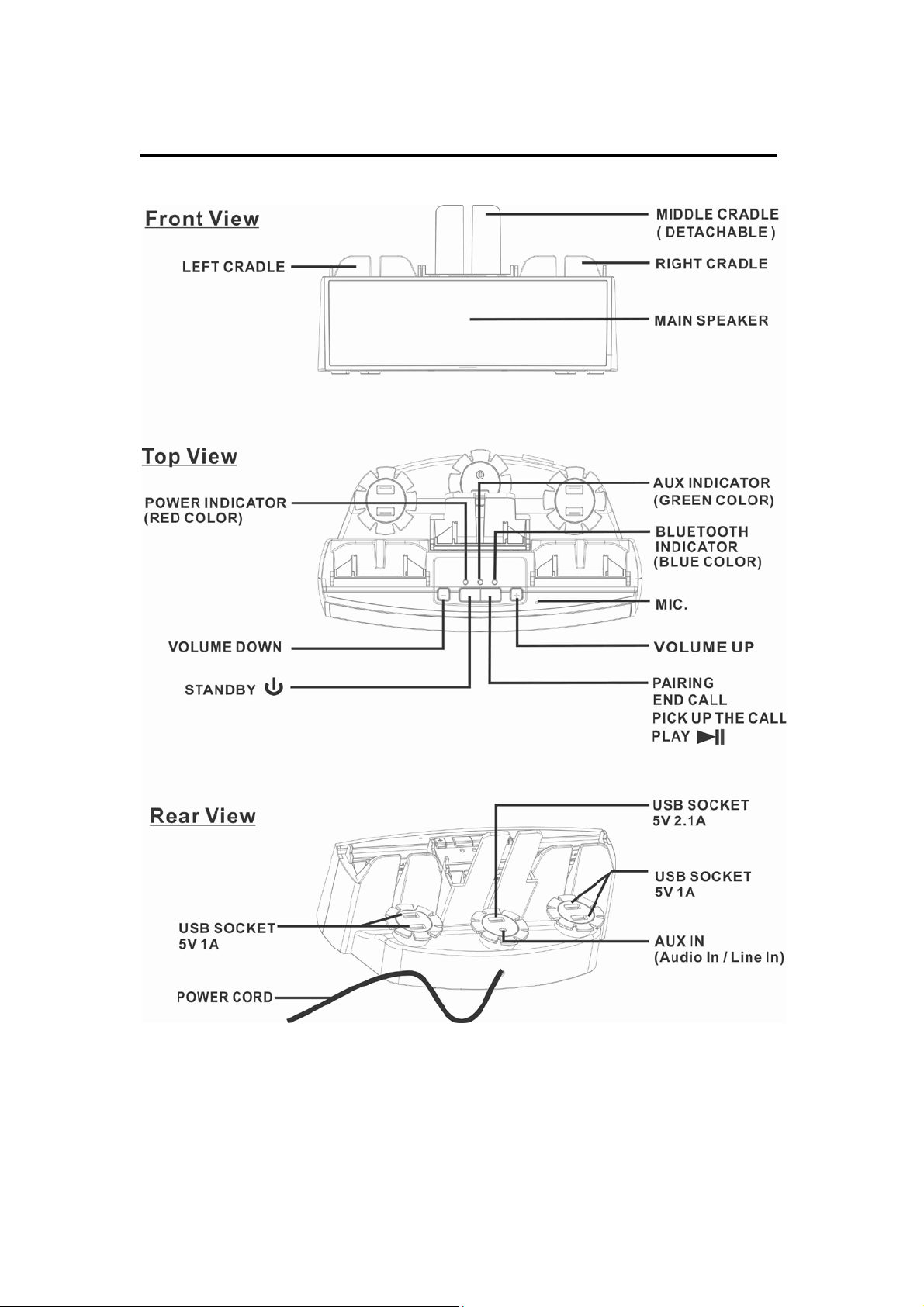

Location of Function
9
Operations
Charging your i Phone/ iPad or other personal devices:
• This unit provides USB ports charge function and up to 3 devices;
• This unit provides 3 cradles for your personal devices while charging;
10
Operations
1. Each cradle has an insert with it, for holds the flat bottom phones.
Without the insert, it holds the rounded bottom phones.
This design is to make sure the cradle holds your phones perfectly.
The center of the USB port provides maximum 5V voltage and 2.1A
current. If your devices require more than this, will lead to NO charge.
2. Wrap your charging cord to the cable organizer in order not too messy at the
back:
11
Operations
Using Bluetooth
Pairing with Your Mobile Phone
Yourunitconnected to mobile phones using a procedure by following a few
simple steps, a mobile phone can be paired with the CR33in a matter of
seconds.
Setup Your DAB+ Bluetooth Speaker on BLUETOOTH mode
1. Power on unit by press the button
2. The BLUETOOTHindicatorflash.
3. Finish this simply setting and go to next step below.
Set your phone to ‘discover’ the your unit
1. First make sure that Bluetooth is activated on your mobile phone.
2. Then set your phone to discover your unit.
3. This usually involves going to a ‘setup,’ ‘connect’ or ‘Bluetooth’ menu on
your phone and selecting the option to ‘discover’ or ‘add’ a Bluetooth
device.
Using your phone to connect the unit.-
1. Your phone will find the unit under name “CR33”.
2. Your phone then asks if you want to pair with the unit.
3. Accept by pressing ‘yes’ or ‘ok’ on the phone.
4. Your phone will confirm when pairing is complete.
5. When successful pairing, the BLUETOOTHindicator will light .
Warning! In case of unsuccessful pairing, the BLUETOOTH indicator would
flash continue. You must follow the previous step “Using Bluetooth” to setting
again or hold the STANDBYbutton to again.
12
Operations
Playing Audio Via Bluetooth
1. When successful pairing, P res s t h e button to play or pause audio files
from your Bluetooth device.
2. If p ress the button cannot play and no music li stening. You must go to
your mobile phone “Music Centre or Media Player”to manual search
music . Press the PLAY icon of your phone to start playing.
3. Use the VOLUMEbuttons to adjust volume.
After all setting, the music of mobile phone will sound through your unit.
Warning! Mus ic will automatically be paused when you have an incoming call.
When call is ended it will start playing again.
Make a Call Via Bluetooth
After Bluetooth connect both your phone & unit that you make a call from your
mobile phone and the cal l will automatically transfer to your unitm oment, you
can speak to MIC area of unit. Does allow this feature, press the button to
answer the call to the unit.
Answer a Call / End a call Via Bluetooth
After Bluetooth c onnect both your phone &unit. You can answer a call or end
call work with unit by press the button.
Using the AUX In ( Line-in / audio In) Jack
You can play your portable audio device with a standard 3.5mm headphone
jack through the unit via the AUX InJack
1. Plug one end of a standard audio patch cord into the headphone or line-out
jack on your device and the other end of the patch cord into the unit's
AUX-in Jack located on the back of the unit.
2. Press the button to turn on unit.
3. Turn on and play your personal device;
4. Press and release the VOLUME + or – to adjust the system volum e. You
may need to adjust the volume on your external device as well.
5. To turn off the music, press STANDBY button.
13
