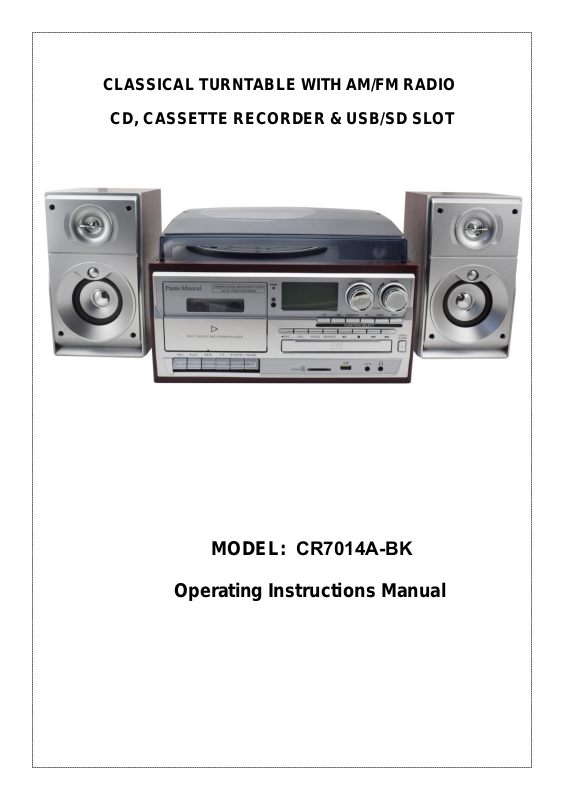

Modern Concepts CR7014A UM

CLASSICAL TURNTABLE WITH AM/FM RADIO
CD, CASSETTE RECORDER & USB/SD SLOT

MODEL: CR7014A-BK

Operating Instructions Manual

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

1) Please read these instructions and keep them for future reference.

2) Pay attention to all warnings.

3) Follow all instructions.

4) Do not use this apparatus near water.

5) Clean only with a dry cloth.

6) Do not block any ventilation openings.

7) Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heaters, stoves, or other
apparatus (including amplifiers) that produce heat.

8) Protect the power cord from being walked on or kinked, in particular where the
plug is fitted and at the point where it exits from the apparatus.

9) Only use attachments / accessories specified by the manufacturer.

10) Unplug this apparatus during lightning storms or when unused for long periods.

11) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.

12) This appliance should not be exposed to dripping or splashing water and no
object filled with liquids, such as vases, should be placed on the apparatus.

13) Do not overload the wall power outlet. Use only power source as indicated - i.e.
230V AC mains.

Avoid installing this unit in places exposed to direct sunlight or close to heat
radiating appliances such as electric heaters, on top of other stereo equipment
that radiates too much heat, places lacking ventilation or dusty areas, places
subject to constant vibration and/or humid or moist areas.
Do not attempt to clean this unit with chemical solvents as this might damage
the finish. Use a clean dry cloth. Operate controls and switches as described in the manual.
Before turning on the power, make certain the AC power cord is plugged in.
Store your CDs, Cassettes in a cool area to avoid damage from heat. When moving the set,
be sure to first disconnect the power cord.

UNPACKING AND SET UP

● Carefully remove the unit from the display carton and remove all packing material from
the unit.

● Unwind the AC power cord and extend it to its full length.

● Unwind the FM Antenna wire and extend it to its full length.

● Place the unit on a stable, level surface, convenient to an AC outlet, out of Direct

sunlight, and away from sources of excess heat, dust, moisture, humidity or
strong magnetic fields.

● Remove the opaque white plastic stylus cover from the phonograph stylus by sliding it

forward and down.

● Discard the stylus cover

● Remove the twist-tie that was used to secure the tone arm during shipment.

● Release the tone arm lock lever.

● Connect the plug to your AC outlet.

POWER SOURCE

This product is designed to operate on 120 60Hz AC Mains only. Attempting to operate

this system from any other power source may cause damage to the system,
and such damage is not covered by your warranty.

LOCATION OF CONTROLS AND INDICATORS

1) Dust Cover

2) Cassette Door

3) Speaker

4) Cassette Button

5) BT indication light

6) IR Remote Receiver

7) LCD Display Screen

8) Tuning Knob

9) Power Switch & Volume Knob

10) Function Selector Button

11) CD/USB/SD Playback Control Button

12) Disk Tray Door

13) CD-Rom Open/close button

14) 3.5mm headphone socket

15) Auxiliary input

16) USB socket

17) SD/MMC card slot

BACK PANEL

18) RCA Line out jack (L&R)

19) FM wire antenna

20) External speakers’ clips.

Insert the cables on the speaker

boxes and with clips.

PHONOGRAPH

21) 45 rpm adaptor

22) Lift lever

23) Auto stop control

24) Tone arm lock

25) Speed selector (33/45/78 rpm)

26) Tone arm

REMOTE CONTROL

27) Mute button

28) Program button

29) Repeat button

30) Function Mode button

CD/USB/SD/BT

31) Skip down button

32) Play/Pause button

33) Record button

34) Stop button

35) Skip up button

36) Folder up button

37) Folder down button

NOTE: All the buttons on the remote control just use for CD/USB/SD /BT function.

OPERATING INSTRUCTIONS

Listening to radio

1. Turn the volume knob in a clockwise direction to turn the equipment on.

2. Use the function selector to select TUNER mode.

3. Use the radio band selector to select the desired band (AM, FM or FM-Stereo).

4. Turn and hold the tuning knob for a few seconds to tune into a radio station. The

unit will start searching automatically and stop when a radio station is found.
Release the knob once a station has been found.

5. Repeat the above step until your desired radio station is found.

6. Adjust the volume knob to your desired volume level.

7. AM reception: the receiver has a built-in AM bar antenna. If reception is weak,

slightly rotate or reposition the unit to improve AM reception.

8. FM reception: the receiver has a built-in FM wire antenna hanging at the rear

cabinet. For best reception, completely unravel and extend this wire.

9. When you have finished listening to the radio, turn the volume knob in a

counterclockwise direction to switch the unit off. Unplug it from the power supply if
you are not going to use it for a while.

FM and FM-stereo

⚫ FM-Stereo : receiving stereo programs. Once a stereo signal is received, the ST icon

will light up on the display.
