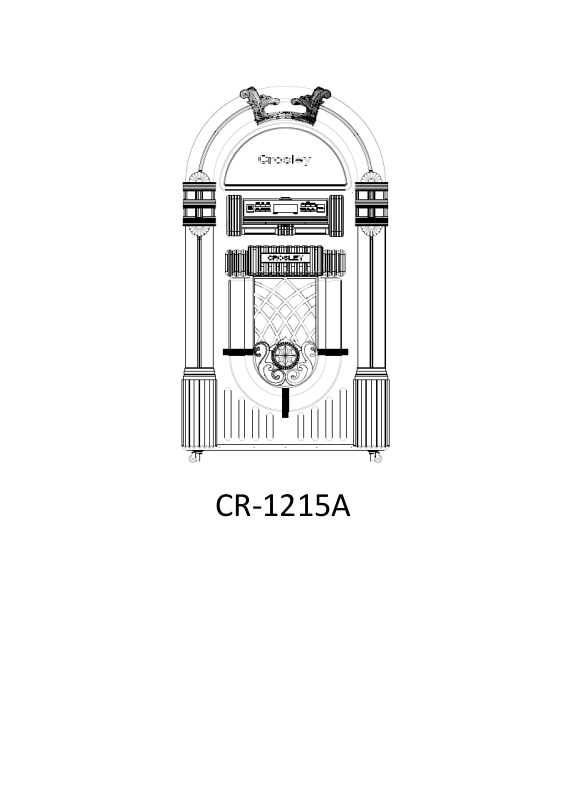

CR‐1215A
1. Power On the unit
Press POWER button on panel or remote control
LED back light ON, default function is Radio tuner
2. Radio Mode
Press POWER button, default is radio, LCD shows TUNER and channel XX.XX.
Auto Search Station: Long press SCAN button (Panel or remote control), it will
search stations automatically
Single Search Station: Long Press PREV/NEXT button (Panel or remote control) to
search station, once a station searched, it will be stop.
Select the saved station: In the radio mode, press PREV/NEXT to select station
(CH‐/CH+ on remote control)
AM/FM Switch: Press AM/FM button to switch channel
3. CD Mode
Press INPUT button until CD Mode, LCD shows CD.
Press OPEN/CLOSE button to open CD Door, place your CD and Press
OPEN/CLOSE button to close CD Door.
LCD shows “READING” during reading CD. It will play the CD automatically once
finished reading.
Press “STOP” button to stop playing
Press REPEAT button to set REPEAT ONE or REPEAT ALL.
Press RANDOM button to play music randomly
PROGRAM: During stop, press PROGRAM button, LCD shows total songs + PXXXX,
press PREV/NEXT button to select the song, press PROGRAM to confirm and then
select other songs. After program, press PLAY button to play music
4. Bluetooth Function
Press INPUT button until Bluetooth Mode, LCD shows BT.
Switch on your mobile device Bluetooth function, and search Bluetooth Name
“CR‐1215A” and connect. Once success, small “bt” flash in display.
Press PLAY button to play music.
Press PAIR button to disconnect current device and ready to connect other
devices
5. AUX IN Mode
Press INPUT button until AUX IN mode, LCD shows AUX. Insert AUX in cable and
connect your device and play music
6. LIGHT Mode
Power On the unit, short press LIGHT MODE button (Panel or remote control),
select different light flashing mode. During flashing, press twice LIGHT MODE
button, it can lock in certain color.
Long press LIGHT MODE to switch off lighting
In the Box
1. Main unit
2. Adaptor 21V/3A
3. Remote control
4. AUX in cable
Speaker: 15W x 2
Bluetooth distance: 10Meter without any blocking
FCC Statement
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However , there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
‐‐ Reorient or relocate the receiving antenna.
‐‐ Increase the separation between the equipment and receiver.
‐‐ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
‐‐ Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
