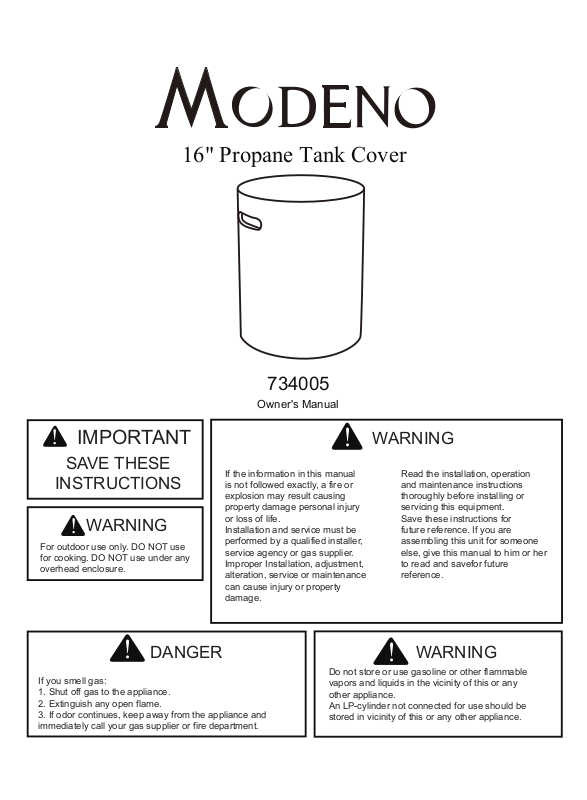

Modeno 734005 User Manual

16" Propane Tank Cover

734005

Owner's Manual

IMPORTANT

!

! !

SAVE THESE

If the information in this manual

INSTRUCTIONS

WARNING

!

For outdoor use only. DO NOT use
for cooking. DO NOT use under any
overhead enclosure.

DANGER

!

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.

is not followed exactly, a fire or
explosion may result causing
property damage personal injury
or loss of life.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper Installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.

WARNING

Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
Save these instructions for
future reference. If you are
assembling this unit for someone
else, give this manual to him or her
to read and savefor future
reference.

!

Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use should be
stored in vicinity of this or any other appliance.

!

WARNING

TABLE OF CONTENTS

Important Safety Information -------------------------------------------------------------------- 3

Propane (LP) Dangers and Warnings ---------------------------------------------------------4

Parts List ----------------------------------------------------------------------------------------------5

Assembly Instructions ---------------------------------------------------------------------------- 6

Warranty --------------------------------------------------------------------------------------------- 7

DANGER

!

CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.

Manual No.: AONB017EN-A0

2 / 8

IMPORTANT SAFETY INFORMATION

!

WARNING TANK COVER IS FOR OUTDOOR USE ONLY

IF YOU SMELL GAS

• Shut off gas supply to the fire table.

• Extinguish any open fame.

• Do not try lighting any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone.

• Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

• WARNING Failure to follow the dangers, warning and cautions in this man fire department. usual

may result in serious bodily injury or death, or in a fire or an explosion causing damage to
property.

• IMPORTANT NOTICE Read and understand all warnings and precautions prior to assembly and
use of your gas fire table. Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage.

• Note

The use and installation of this product must conform to local codes. In the absence of local
codes, use the National Fuel Gas Code, ANSI Z21.97. Reference to Natural Gas and Propane
Installation code CSA B149.1 or Propane Storage and Handling code B149.2.

3 / 8

PROPANE (LP) DANGERS AND WARNINGS

• The LP gas tank must have a tank collar to protect the tank valve.

• LP gas cylinder must contain a shut-off valve as specified in the Standard for Compressed

Gas Cylinder ValveOutlet and Inlet Connection, ANSI/CGA-V-1-1977,CSA B96.

• The LP gas tank should not be dropped or handled roughly.

• Tanks must be stored outdoors out of the reach of children. Do NOT store in a building,

garage, or any other enclosed area.

• Never store your LP gas tank where temperatures can reach over 125°F.

• Do not store the LP gas cylinder in direct sunlight or near a source of heat or combustion.

• Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure

to increase, which may open the relief valve and allow gas to escape.

• Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install the

type of dust cap on the LP gas tank valve outlet that is provided with the LP gas tank
valve. Other types of caps or plugs may result in leakage of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
b. Never fill the LP gas cylinder beyond 80% full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or
seriousinjury may occur.

• LP gas cylinders should be filled only by a certified LP gas dealer.

• The pressureregulator isset for 11 inches of watercolumn (pressure).

• The maximum inlet gas pressure for this outdoor fire table is 14 inches of water column pressure.

• Never attempt to attach this appliance to the self-contained LP gas system of a camper trailer,

motor home or house.

• Always use the pressure regulator and hose assembly provided with the appliance to connect to

a LP gas cylinder. Never connect to an unregulated LP gas supply. For technical support contact
Ocean Rock USA at 800-678-7294.

• Hand turn the manual gas control valve. Never use tools. If the valve will not turn by hand, do not

try to repair it. Call a Certified Gas Technician. The use of force or any self attempted repair may
result in a fire or explosion.

Connecting your gas cylinder

Before connection, be sure that there is no debris caught in the head of the gas cylinder, head of
the regulator valve or in the head of the burner and burner ports. Connect regulator valve and
hand-tighten firmly. Disconnect the propane cylinder from the regulator valve when the fire table
is not in use. DO NOT obstruct the flow of combustion air and ventilation air to the burner.

4 / 8

PARTS LIST

1

2

Tank cover 1

Tank Holder Base 1

1

5 / 8

1

Place the propane tank in the base and secure the tank by tightening the
screw at the bottom of the base.

5

2

2

With the propane tank secured and the regulator hose connected, place the cover（1）
onto the Base (2).
Do not sit on top of the tank holder.

1

To Propane
Firep Pit

6 / 8

Warranty

Ocean Rock USA LLC warrants fire features and accessories to be free from defects in parts and
workmanship under normal use and service for a period of 1 year from the date of purchase. In the
event of such defects Ocean Rock will, at its option, repair or replace the defective product. The
foregoing is at the discretion of Ocean Rock.

There will be no charge for the replacement parts or product, however it will be the consumer’s

responsibility to return the product to the original place of purchase.

Ocean Rock will not be responsible for consequential damages in excess of the purchase price of
the product on which such liability is based and the warranty does not cover costs including freight,
removal and reinstallation.

This warranty is non-transferable and applies only for units that are for non-commercial personal use
only.

Under this warranty agreement, all gas lines must be installed by a licensed gas fitter.
Damage caused by shipping, staining and abuse are not covered under this warranty. Dings, dents
and scratches, fading and natural weathering are not covered under this warranty. Decorative rock
is not covered under this warranty. Improper installations, repair or modifications made by anyone
other than Ocean Rock will void this warranty and any damage caused by such is also not covered
under this warranty.

Minor chipping, weather fading, water staining and non-structural hairline cracks are typical of the
material of this product and are not covered under this warranty. Some color and texture variation is
typical of the material and finish for this product and is not covered under this warranty.

Cast concrete is a hand finished process. As such, this product’s finish will vary by unit. There

will be a color variance of up to 15% in each unit. There may also be uneven texture or
pattern as well as small holes in the surface caused by air or water trapped on the surface
during casting. This is a normal trait of cast concrete and is not covered under warranty.

7 / 8
