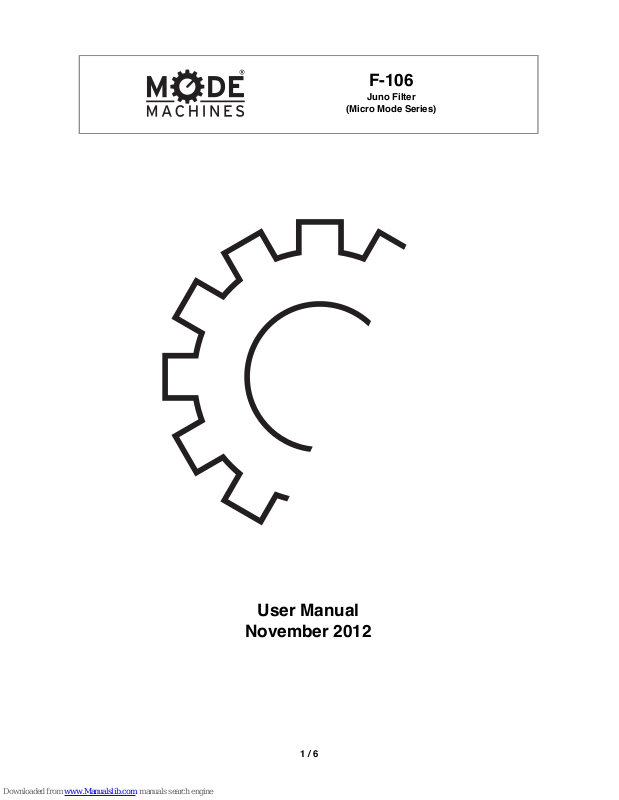

Page 1
1 / 6
F-106
Juno Filter
(Micro Mode Series)
User Manual
November 2012
Page 2
2 / 6
Contents
F-106 Juno Filter
1. Knobs, buttons & LED
2. Product description
3. Downloads
4. Social Media
Page 3
!

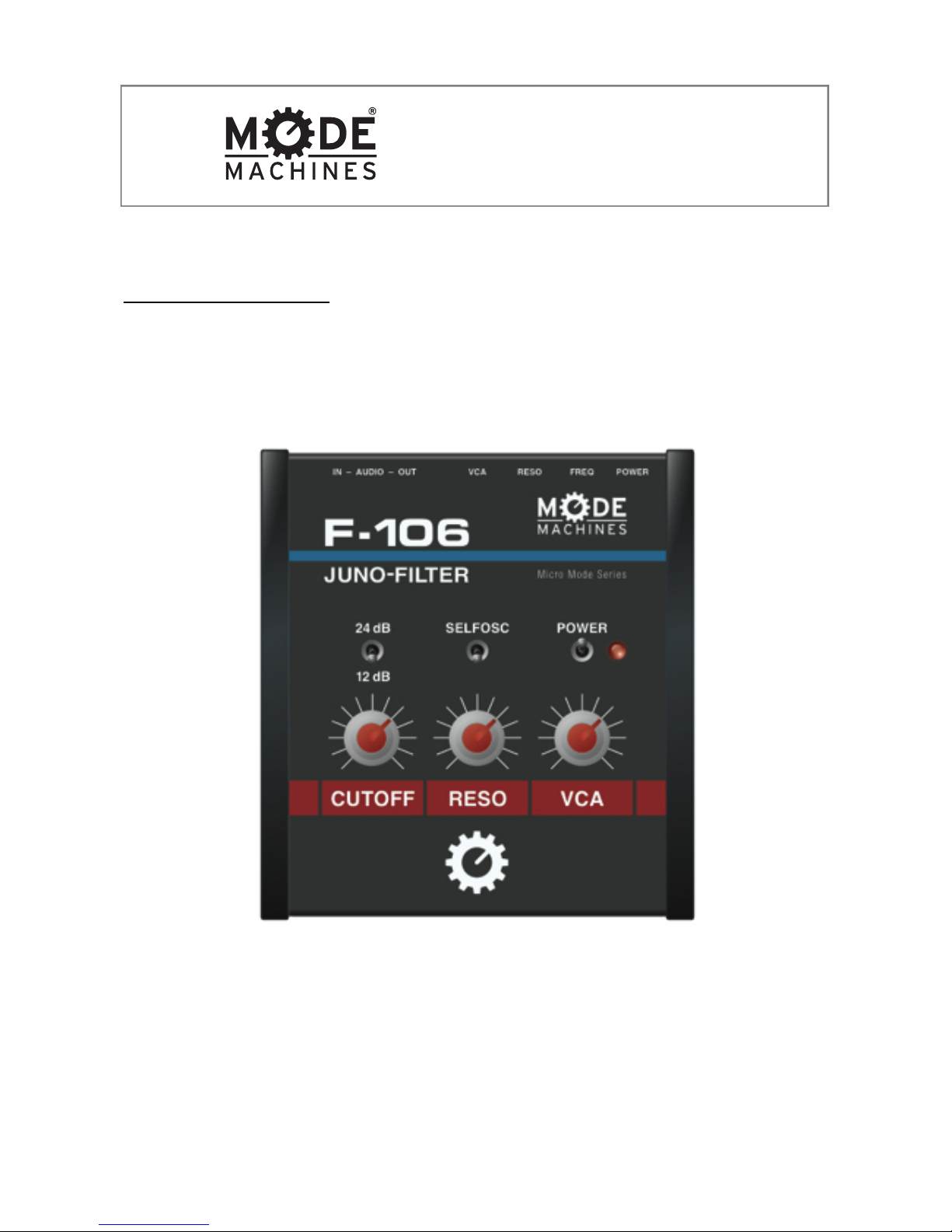

1. Knobs ,buttons & LED
3 / 6
Synthesizer Section
F-106 Juno Filter
Mode Machines - Email: [email protected]
Page 4
2. Product description
Thank you for your purchase of the MODE MACHINES F-106 "Juno-Filter". This is an
analog device based on some of the original circuitry of the famous Juno 106."
You can use the F-106 to modulate audio signals and also connect external devices using
the CV inputs to control the functions of the unit.
KNOBS:
""""""""""""""
•
CUTOFF: will adjust the cutoff of the lowpass filter
•
RESONANCE: will adjust the resonance (feedback) of the filter
•
VCA: will adjust the audio output level
SWITCHES:
•
24dB / 12dB: will select the filter type , 24 or 12dB/OCT
•
SELF OSC: will enable self-oscillation
•
POWER: turns unit on/off
Connections:
•
AUDIO OUT: audio output 6.35mm mono jack
•
AUDIO IN: audio input 6.35mm mono jack
•
FREQ–CV: input for cutoff (0 – 5V) 3.5mm mono jack
•
RESO–CV: input for resonance (0 – 5V) 3.5mm mono jack
•
VCA–CV: input for VCA (0 – 5V) 3.5mm mono jack
•
POWER: 12 to 20VDC input. + on center pin.
•
Power consumption: <100mA @ 12VDC
•
Audio:" ~30Hz to >15KHz
4 / 6
Control Panel
F-106 Juno Filter
Mode Machines - Email: [email protected]
Page 5
3. Downloads
5 / 6
Downloads
F-106 Juno Filter
Mode Machines - Email: [email protected]
Dear customer,
we have provided an extensive offer of free data to download on our website. Here you
can find all pictures and documents of the required products.
Product-related you can find all instructions to the respective products also in other
languages. These are provided as a PDF file free of charge to download.
We are happy to offer you any time an extensive service.
If there are any questions for a product or a question including the manual you please
send us an e-mail. We are happy to help you!
Page 6
4. Social Media
www.modemachines.com
www.facebook.com/mode machines
www.twitter.com/mode machines
www.flickr.com/photos/modemachines
www.myspace.com/modemachines
www.modemachines.tumblr.com
www.youtube.com/modemachinesofficial
6 / 6
Control Panel
F-106 Juno Filter
Mode Machines - Email: [email protected]
