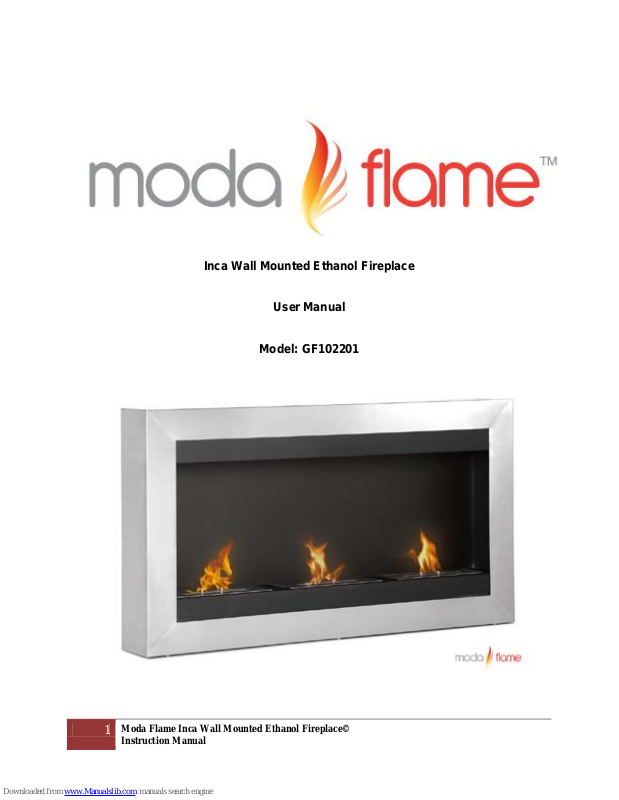

Moda Flame Inca Wall Mounted Ethanol Fireplace©
Instruction Manual
Inca Wall Mounted Ethanol Fireplace
User Manual
Model: GF102201
2
Moda Flame Inca Wall Mounted Ethanol Fireplace©
Instruction Manual
Included in delivery (Parts List):
A. Fireplace body 1pc
B. 1.5L double-layer Burner 3pcs
C. Mounting bar unit 1pc
D. Control tool 1pc
E. Screws(5*30mm) 4pcs
F. Wall plugs (φ8*40mm) 4pcs
G. Instruction manual and safety instructions.
Assembly Instructions:
1. Unpack the fireplace and accessories. Check the content for completeness and
any damage incurred in transit. Keep children away from the packing.
2. Mount the mounting bar unit to the wall using the 4 screws, and wall plugs.
Caution: The fireplace must only be installed on a solid wall of non-flammable
material.
3.
4. Attach the fireplace body onto the mounting bar unit. Follow the arrows.
5. Place the burner into the burning chamber of the fireplace body.
WARNING: Always maintain a safe distance of at least 1 meter (40in) from the
fireplace when the flame is lit.
OPERATION INSTRUCTIONS
Step 1: Open the cover of the burner reservoir completely using the control tool. Fill the
burner with the ethanol, pay attention at the “Max” line.
3
Moda Flame Inca Wall Mounted Ethanol Fireplace©
Instruction Manual
CAUTION: Spilled ethanol must be removed with an absorbent tissue and cleaned with
water to prevent ignition outside the burner reservoir.
Spilled ethanol may lead to matt stains on parquet flooring.
Fuel must be kept in safe distance (min. 1 m/40 inch) to the fireplace. Do
not place fuel in front of the fireplace.
Step 2: Light the ethanol with stick-lighter. Keep a safe distance to the burner.
CAUTION: Fuel will burn low at first. Please allow 15 minutes to reach the optimum
temperature and flame height. Opening or closing the sliding cover on the burner with
the puller can adjust the flame.
Extinguish ：
4
Moda Flame Inca Wall Mounted Ethanol Fireplace©
Instruction Manual
CAUTION: Never extinguish the flame with water!
Let the fuel burn out completely if possible. This prevents ethanol left in the burner
and deflagration when reigniting.
If you wish to extinguish the flame before the fuel has completely burned out.
Please use the controlling tool to fully close the sliding cover of the burner and wait
until the flame is extinguished. Wait approximately 20 minutes until the burner has
reached room temperature. Only then dispose of the remaining fuel.
In case the flame is not extinguished immediately. Please close the cover and wait
approximate10-15 minutes to allow the flame to cool down. Repeat the above
instructions until the flame is fully extinguished.
It is urgently recommended that you keep a Class B fire extinguisher at hand close
to the device in case of fire.
Refill：
CAUTION: Never pour fuel into the burning flame.
5
Moda Flame Inca Wall Mounted Ethanol Fireplace©
Instruction Manual
WARNING：Allow the burner to cool down for at least 15 minutes before refilling.
Never refill the burner when the fireplace is operating or still hot.
SAFETY INSTRUCTION
When burning Moda Flame Premium Ethanol Fuel, water-vapor and carbon dioxide
are produced.
Never leave an open fire unattended at any time!
In a house of typical construction, that is, one that is not of unusually tight
construction due to heavy insulation and tight seals against air infiltration, an
adequate supply of air for combustion and ventilation is provided through infiltration.
The fireplace should not be used in a small room where less than 5.7m3 (200ft3) of
air space is provided for each 1000 Btu per hour of fireplace (considering the
maximum burner adjustment). Do not use the fireplace in a bathroom, a room where
sleeping accommodation is provided or any other small room.
CAUTION: Item gets hot while in operation. Do not touch the fireplace while
burning. Please allow at least 15 minutes to cool down before touching the product
after flame is extinguished.
CAUTION: Risk of burns. Do not operate the ethanol fireplace without the guard or
grille or screen completely attached.
Never pour fuel into an open flame or into the burner reservoir unless it has cooled
down for at least 15 minutes after used.
Do not place any flammable material within 1 meter/ 40 inches around the fireplace.
A safety distance of at least 2 meters/80 inches should be kept from any window or
curtain. Do not burn under over hanging items.
CAUTION: Do not smoke while handling the fuel.
Avoid airflow in the room where the fireplace is operated.
WARNING:
ⅰRisk of Explosion
a. Never use any fuel other than Moda Flame Premium Ethanol Fuel. Never use
6
Moda Flame Inca Wall Mounted Ethanol Fireplace©
Instruction Manual
gasoline.
b. Never use the appliance in areas where flammable vapors or gas may be present.
c. Never store or transport the fuel in other than a metal or plastic container that is
acceptable for use with the specified fuel in accordance with the Consumer
Chemicals and Containers Regulations 2001 and is the original container for the
specified fuel.
d. Never store fuel in the living space or in the same location as the appliance.
ⅱ.Due to high surface temperatures, keep children, clothing, and furniture away.
ⅲ.Do not use the appliance to heat or boil water or use as a cooking appliance.
ⅳ.Do not use in a room with Oxygen tanks in use. Do not use the appliance in a
bathroom, a room where sleeping accommodation is provided or any other small
room.
ⅴ.Do not operate without installing the protective screens, grilles, or guards.
ⅵ.THIS APPLIANCE HAS NOT BEEN TESTED FOR USE WITH DOORS. TO
REDUCE THE RISK OF FIRE OR INJURY, DO NOT INSTALL DOORS.
ⅶ. Risk of Indoor Air Pollution - Use ethanol fireplace only in well-ventilated areas
and with doors of adjacent room open. Do not obstruct air flow to the fuel holder box
by piling logs over the fuel holding box, but only around it and do not obstruct the
fuel holder box in any other way or with any other material. People with breathing
problems should consult a physician before using the ethanol fireplace.
WARNING: THIS APPLIANCE HAS NOT BEEN TESTED WITH AN UNVENTED
GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO NOT INSTALL AN
UNVENTED GAS LOG SET INTO THIS APPLIANCE."
CLEANING INSTRUCTION:
After each use, the burner surfaces must be cleaned regularly. Use warm water and
washing-up liquid. If the burner is not cleaned after each use, bad odors can occur.
Check the sliding cover of burner for warp or damage before each use.
After several uses, the stainless steel burner may discolor depending on the type of
ethanol fuel you use. Rub the burner with a sponge to restore the original shine of
7
Moda Flame Inca Wall Mounted Ethanol Fireplace©
Instruction Manual
the stainless steel. Marks can be best removed with a soft cloth and a mixture of
lukewarm water and a small amount of cleaning liquid (ph-neutral). We recommend
cleaning the stainless steel items regularly to prevent contamination.
CAUTION: Never use chemical, steel-wool or scrubbing sponges eight. These can
scratch the surface. The manufacturer cannot be held responsible for any damages
resulting out of false use and/ or cleaning of the products.
Warranty:
Our fireplaces are guaranteed 1 year, parts and labor. Warranty begins on the date of
purchase.
Warranty will be applied on presentation of a dated cash receipt and is strictly limited to
factory service repair of the piece or pieces that are found to be defective. Installations
costs will not be reimbursed in any case as damages for any reason
whatsoever. Manufacturer will not be held responsible for any incidental or
consequential defects, on goods or individuals.
The warranty will not be applied if devices have been subjected to abnormal use or if
used under other conditions of use than the ones they were intended for.
The warranty will not apply in case of deterioration or accident due to negligence,
damages caused by failing to maintain and service the device or resulting from an
alteration of material.
Moda Flame
Tel: 347-410-8000
Email: INFO@MODAFLAME.COM
Website: www.MODAFLAME.com
