Hardware Supplied
dowel
x16
bolt & nut
set x20
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a
free safety wall anchor with all furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those supplied.
Phillips & Flathead screwdrivers required
H I
35mm
bolt x2
70mm
screw x4
wall plug
x2
25mm
screw x2
safety
strap x2
30mm
bolt x3
60mm
screw x14
Porto Desk
1
mocka.co.nz | mocka.com.au
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
1
2
Attach panels [3], [4], [5], [6] and [7] to panel [8] using 8x dowels (F)
and 10x locking nuts (A). Tighten with a screwdriver.
F
8
7
6
5
4
3
F
F
F
F
F
F
Attach 10x bolts (A) to panel [8].
8
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
Porto Desk
2
mocka.co.nz | mocka.com.au
Assembly Instructions
3
4

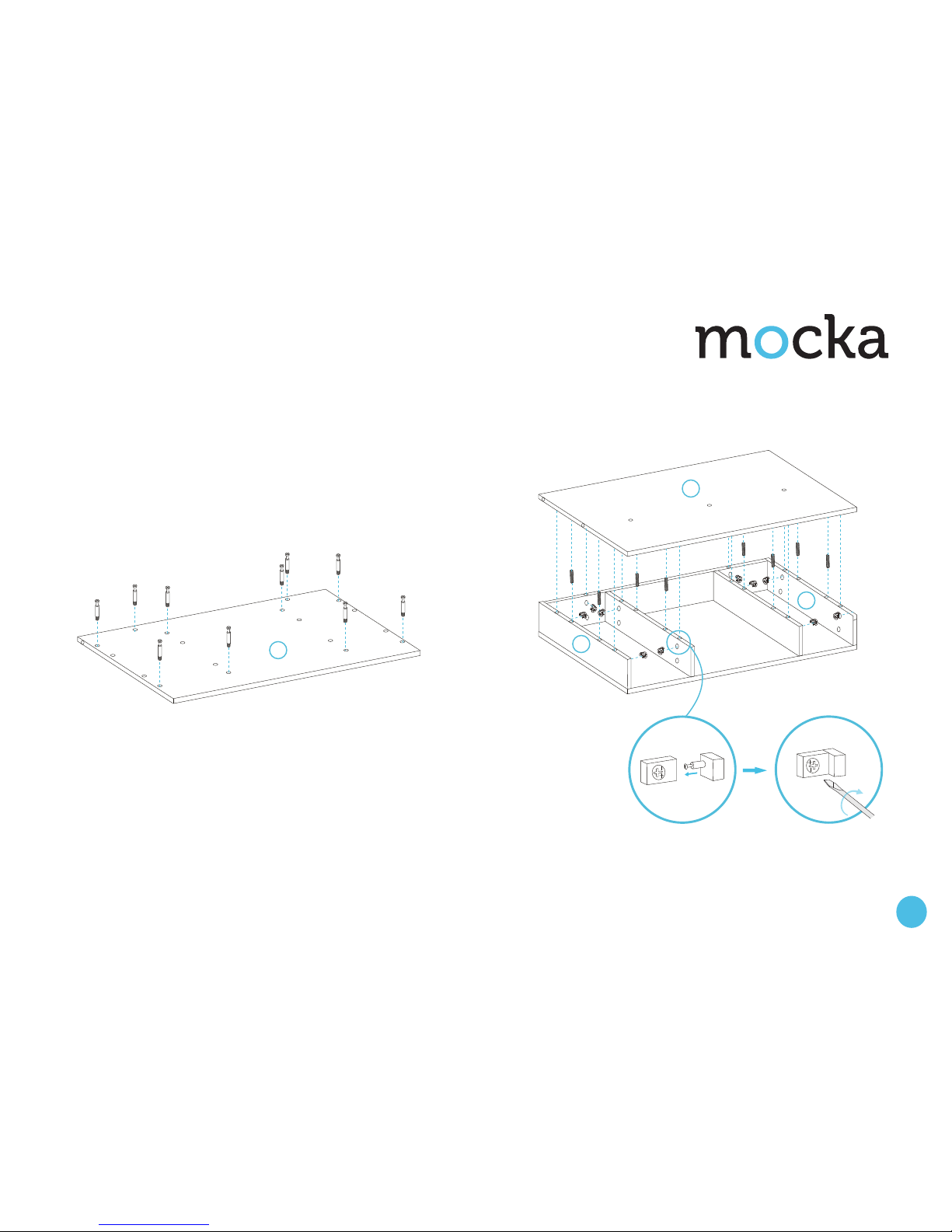

Attach 10x bolts (A) to panel [2].
2
F
F
F
F
F
F
F
A
A
A
A
A
A
A
A
A
A
2
Attach panel [2] to panels [3], [4], [5], [6] and [7] using 8x dowels (F) and
10x locking nuts (A). Tighten with a screwdriver.
6
3
A
A
A
A
Porto Desk
3
mocka.co.nz | mocka.com.au
Assembly Instructions
5
6
Attach the desk section to panel [10] using 3x 30mm bolts (C). Secure to
the legs using 6x 60mm screws (E) and 4x 70mm screws (D). Tighten
with a screwdriver.
2
D
E
D
E
E
D
E
D
E
E
C
C
C
Attach panel [10] to the side panels and secure with 2x 35mm bolts (B).
Attach panel [9] to the side panels using 4x 60mm screws (E). Tighten
with a screwdriver.
10
9
E
E
E
E
B
B
Porto Desk
Assembly Instructions
4
mocka.co.nz | mocka.com.au
Jolt Wardrobe
ASSEMBLY INSTRUCTIONS
5
mocka.co.nz | mocka.com.au
7
8
G
H
I
Move the unit to the desired location against a wall. Attach the other end
of the 2x safety straps (I) to the wall using 2x wall plugs (H) and 2x 25mm
screws (G). Tighten with a screwdriver. You’re done, enjoy!
I
I
1
E
E
E
E
I
I
E
E
Attach panel [1] and secure with 4x 60mm screws (E), while attaching
the 2x safety straps (I) as shown. Tighten with a screwdriver. Once
assembled lift furniture into place, do not drag.
Porto Desk
Assembly Instructions
5
mocka.co.nz | mocka.com.au
