Nava Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
mocka.co.nz | mocka.com.au
1
x2
washer
Z
wall
screw
Y
wall
anchor
x1
X
safety
strap x1
W
Wall Strap
V
A B
C D E F G
H
J K L M NI
O
Hardware Supplied
dowel
x20
bracket
x5
height
adjuster x1
screw
x12
P
R S TQ
screw
x1
x1
U
A1 B1
bolt
x24
locking
nut x24
screw
x45
shelf
plugx8
screw
x8
clip
x5
seal
x5
hinge
x4
screw
x24
bolt
x4
nut
x4
screw
x10
slide
railx3
slide
railx3
slide
railx3
slide
railx3
plastic
glide x4
wedge
x12
screw
x12
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before rst use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping.The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Phillips & Flathead screwdrivers
and hammer required
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
2
1
2
Attach 1x bracket (I) to panel [4] using 2x screws (E). Attach 1x bracket
(I) to panel [5] using 2x screws (E). Tighten with a screwdriver. Cover
each bracket with 1x clip (J) as shown.
Insert 2x bolts (C) into panel [4]. Insert 2x bolts (C) into panel [5].
E
E
I
J
E
E
I
E
E
I
5
4
C
C
C
C
5
4
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
3
4
Attach 3x slide rails (Q) to panel [4] and secure with 9x screws (E).
Attach 3x slide rails (R) to panel [5] and secure with 9x screws (E).
Tighten with a screwdriver.
Attach 1x bracket (I) to each panel [7] using 2x screws (E). Tighten with
a screwdriver. Cover each bracket with 1x clip (J) as shown.
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
R
R
R
Q
Q
Q
5
4
3
7
E
E
I
E
E
I
J
x2
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
4
5
6
Attach both panels [7] between panels [4] and [5] using 4x dowels (A)
and secure with 4x locking nuts (D). Tighten with a screwdriver.
Insert 8x bolts (C) into panel [1] as shown.
D
D
D
D
A
A
A
A
7
5
4
7
D
C
C
C
C
C
C
C
C
1
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
5
7
8
Attach panel [1] to panels [2], [3], [4] and [5] using 8x dowels (A) and
secure with 8x locking nuts (D). Tighten with a screwdriver.
Slide down panels [9] and [20] between the grooves in panels [2],
[3], [4] and [5] to form the back of the unit.
D
A
D
A
A
A
A
A
A
A
4
3
2
1
5
D
D
D
9
5
4
3
2
9
20
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
6
9
10
Attach 1x bracket (I) to panel [8] using 2x screws (E). Tighten with a
screwdriver. Cover the bracket with 1x clip (J) as shown.
Attach panel [8] to the rest of the unit using 8x dowels (A) and 8x screws
(G) as shown.
8
E
I
E
E
I
J
E
A
A
A
A
A
5
4
3
2
8
G
G
G
G
G
G
G
G
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
7
11
12

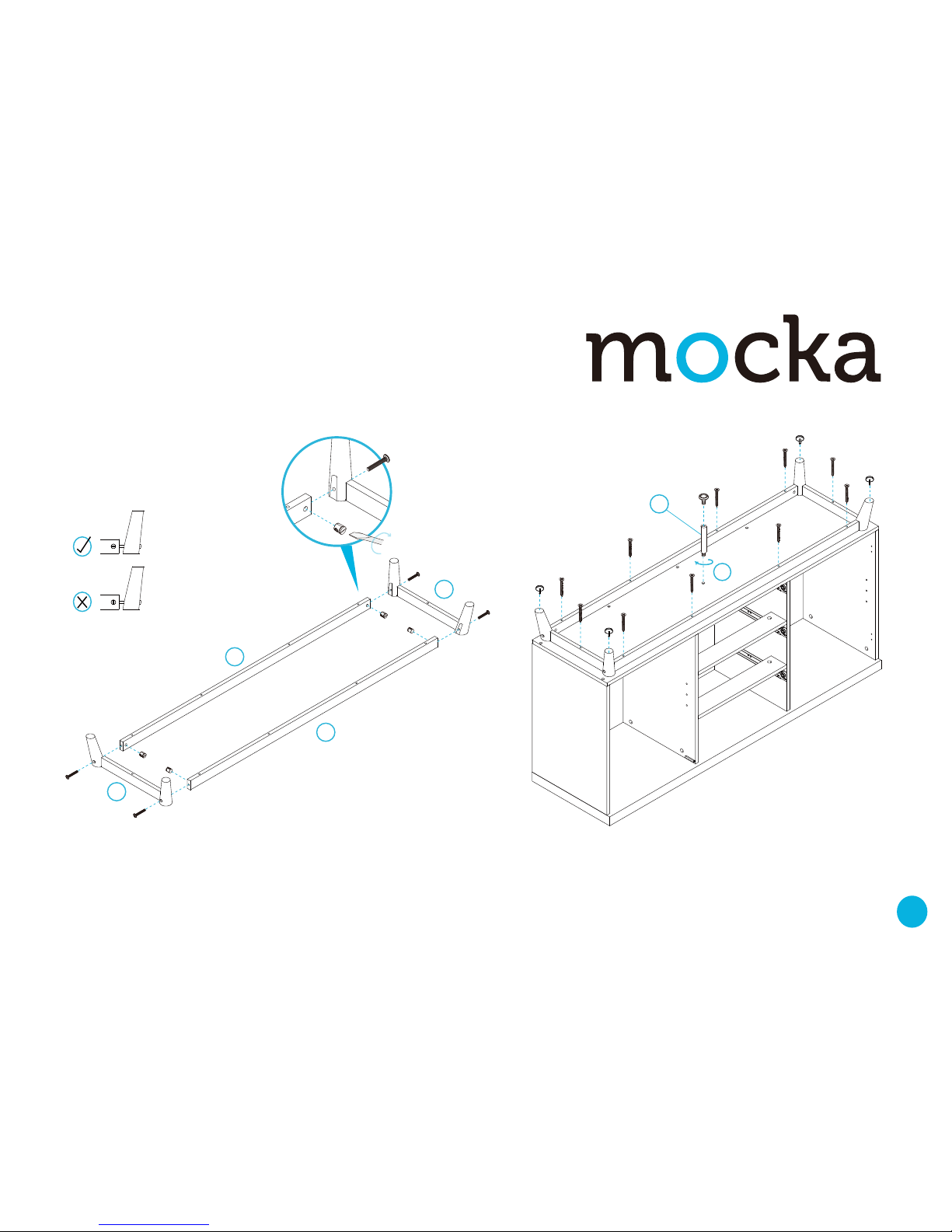

Attach panels [10] and [11] together as shown using 4x nuts (O) and 4x
bolts (N).Tighten with a screwdriver.
Attach panels [10] and [11] to panel [8] using 10x screws (P). Attach
support leg [12] to panel [8] as shown. Screw the height adjuster (H) onto
the support leg [12]. Attach 4x plastic glides (U) to the legs using a
hammer.
10
11
N
N
N
N
O
O
O
O
N
O
Ensure slot in
nut is facing
incoming bolt.
10
11
P
P
P
P
P
P
P
P
P
P
8
12
H
U
U
U
U
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
8
13 14

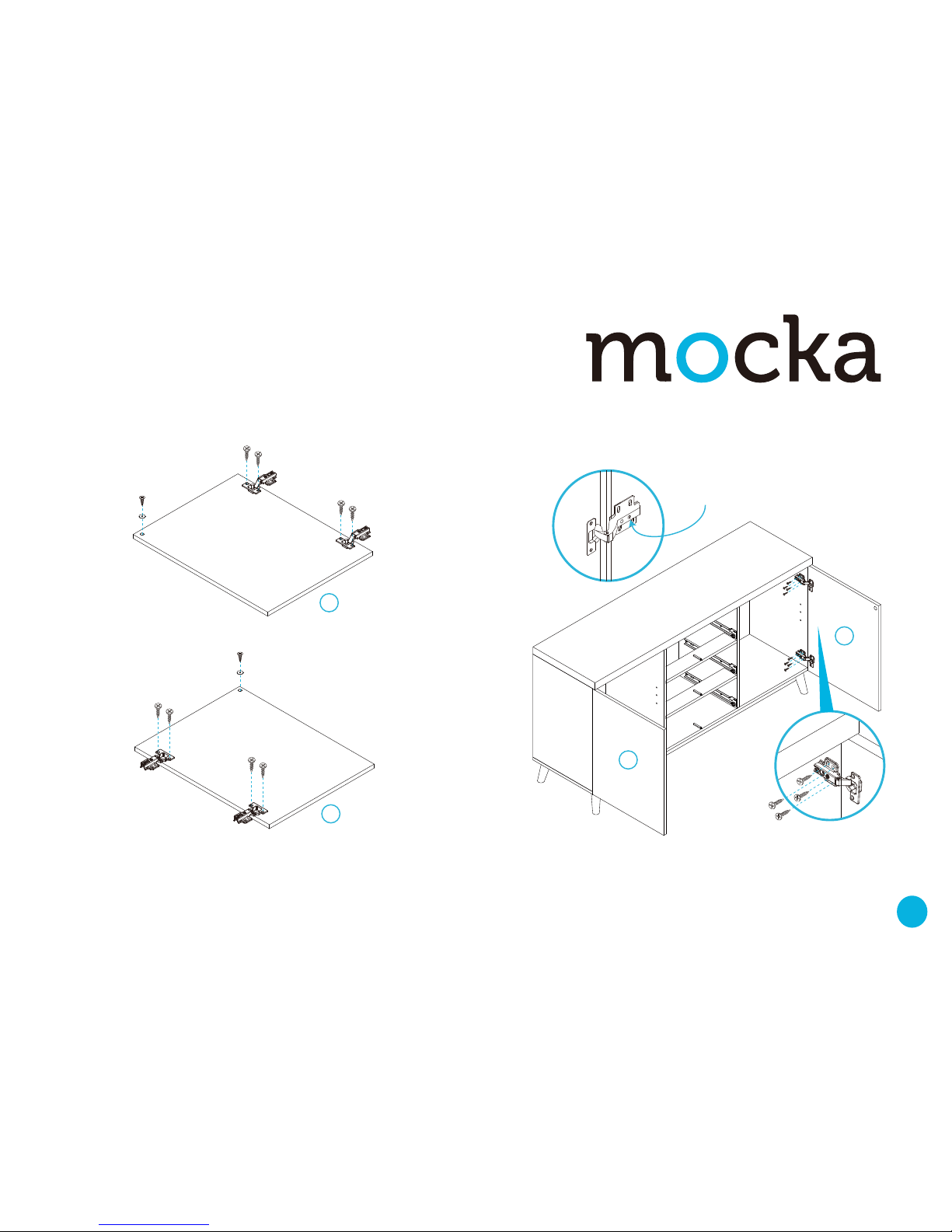

Attach 2x hinges (L) to panel [13] using 4x screws (M), and attach 1x
seal (K) and secure with 1x screw (E). Attach 2x hinges (L) to panel
[14] using 4x screws (M). Now attach 1x seal (K) and secure with 1x
screw (E).
Attach door hinges on panels [13] and [14] to the unit using 16x screws
(M). Tighten with a screwdriver. Ensure the doors open and close easily.
13
14
E
E
K
K
L
L
M
M
L
M
M
M
M
L
M
M
M
M
M
M
M
M
13
14
NOTE: If the doors are uneven or
there is a gap in the middle, loosen
or tighten the screw on the door
hinge until they are sitting flush.
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
9
15
16
Insert 4x bolts (C) and attach 1x seal (K) using 1x screw (E) to panel [15].
Attach side panels [16] and [17] using 4x locking nuts (D). Slide base panel [18]
down between the grooves of the side panels. Attach back panel [19] using 4x
screws (B). Turn drawer upside down and attach 1x slide rail (T) and 1x slide
rail (S) to the side panels using 4x screws (E). Tighten with a screwdriver.
If a clip (J) is not catching on the seal (K), adjust the magnetic end by
twisting it outwards.
J
J
K
J
J
K
19
E
K
C
C
C
C
D
D
D
D
E
E
E
E
B
B
B
B
S
T
15
16
15
17
16
15
17
16
15
18
17
16
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
10
17 18
Insert 8x shelf plugs (F) into the unit at the desired height for the
shelves and rest the shelf panels [6] onto them. Ensure the shelves
are balanced and stable. Insert the three assembled drawers,
ensuring they slide along the rails smoothly.
Attach 12x wedges (A1) to the back of the unit as shown, and secure
with 12x screws (B1). Now attach 1x safety strap (V) to the back edge of
panel [1] using 1x washer (Z) and 1x screw (W). Tighten with a
screwdriver.
F
F
F
6
4
3
2
6
V
Z
W
screw
strap
washer
A1
B1
A1
B1
A1
B1
A1
B1
A1
B1
A1
B1
Nava Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au
11
19 20

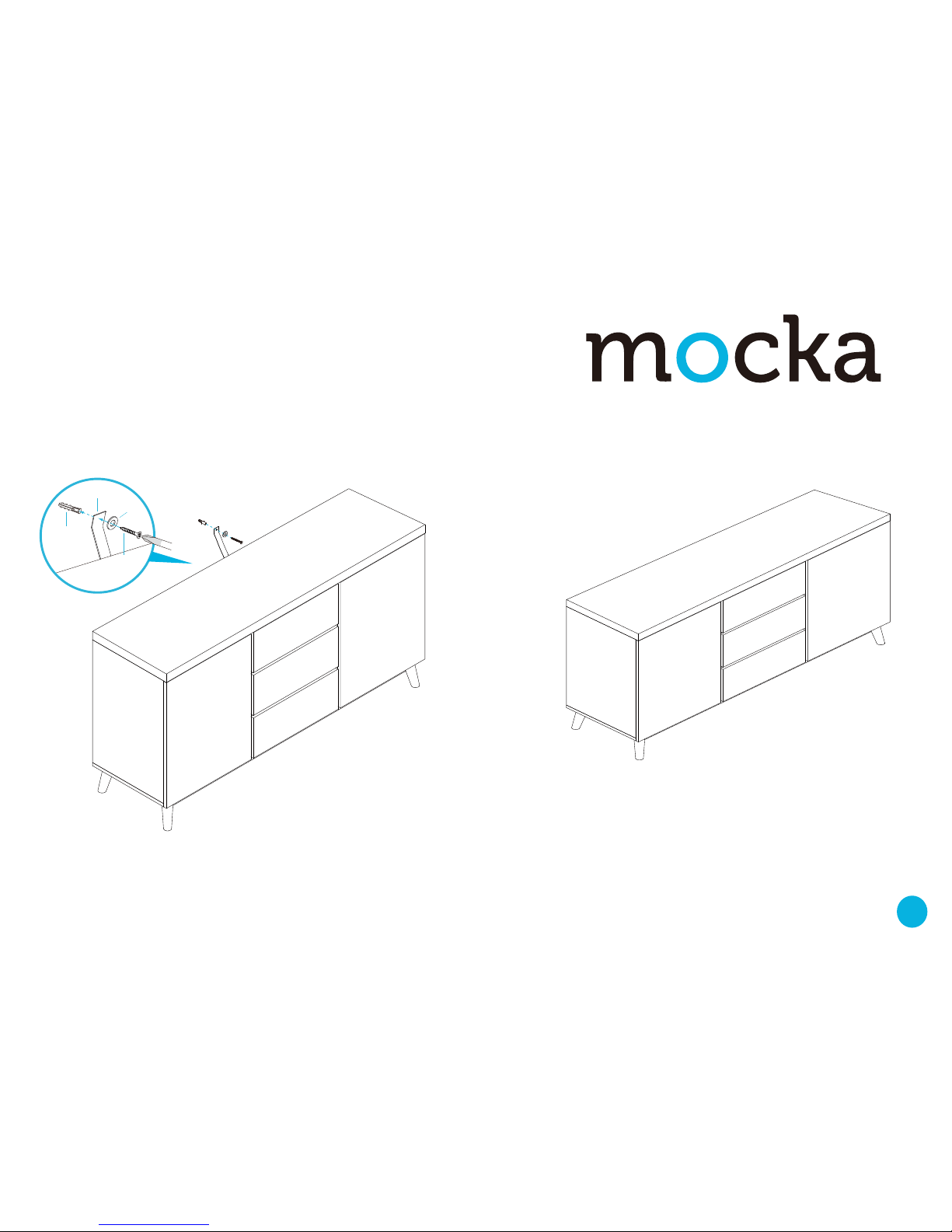

Once assembled lift furniture into place, do not drag. Use a drill to
create a small hole lining up with the top of the safety strap (V). Fasten
to wall using 1x wall plug (X), 1x washer (Z) and 1x screw (Y). Ensure
unit is balanced and steady before use.
You’re done, enjoy!
