Nava Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
mocka.co.nz | mocka.com.au
1
x2
washer
Z
wall
screw
Y
wall
anchor
x1
X
safety
strap x1
W
Wall Strap
V
A B
C D
E F G
H
I
O
Hardware Supplied
dowel
x24
bracket
x4
height
adjuster x1
screw
x8
P
R S TQ
screw
x1
x1
U
A1
bolt
x22
locking
nut x22
screw
x32
screw
x10
screw
x10
clip
x4
seal
x4
hinge
x4
screw
x24
bolt
x4
nut
x4
slide
railx2
slide
railx2
slide
railx2
slide
railx2
plastic
glide x4
wedge
x12
screw
x12
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before rst use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping.The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Phillips & Flathead screwdrivers
and hammer required
J
K L M N
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
2
1
2
Attach 1x bracket (I) to panel [4] using 2x screws (E). Attach 1x bracket
(I) to panel [5] using 2x screws (E). Tighten with a screwdriver. Cover
each bracket with 1x clip (J) as shown.
Attach 1x slide rail (P) to panel [4] and secure with 3x screws (E) as
shown. Now insert 2x bolts (C) into panel [4]. Attach 1x slide rail (Q) to
panel [5] and secure with 3x screws (E) as shown. Now insert 2x bolts
(C) into panel [5].
5
4
E
E
I
E
E
I
E
E
I
J
E
E
E
E
E
E
P
C
C
C
C
Q
5
4
5
4
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
3
4
Attach 1 x slide rail (P) to one side of panel [7] and secure with 3x
screws (E). Flip the panel over as shown. Attach 1x slide rail (Q) and
secure with 3x screws (E). Tighten with a screwdriver.
Insert 2x bolts (C) into panel [6].
3
FLIP
E
E
E
E
E
E
P
Q
7
7
C
C
6
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
4
5
6
Attach panel [7] to panel [6] using 2x dowels (A) and secure with 2x
locking nuts (D).
Attach panels [4] and [5] to panel [6] using 4x dowels (A) and secure with
4x locking nuts (D). Tighten with a screwdriver.
D
D
A
A
7
6
D
D
A
D
D
A
A
A
6
5
4
C
7
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
5
7
8

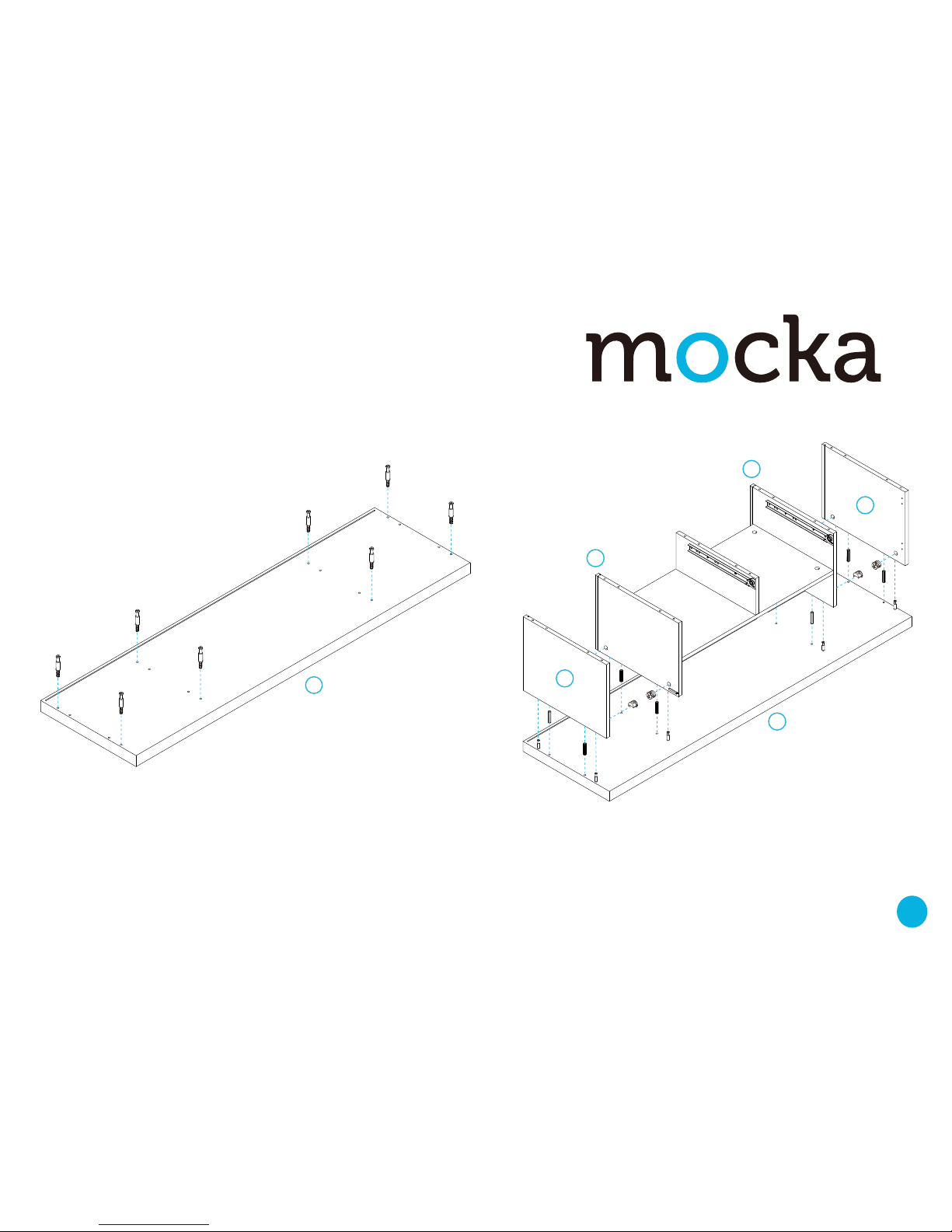

Insert 8x bolts (C) into the underside of panel [1].
Attach panels [2], [3], [4] and [5] to the bolts in panel [1] using 8x dowels
(A) and secure with 8x locking nuts (D). Tighten with a screwdriver.
C
C
C
C
C
C
C
C
1
D
D
A
A
A
A
A
A
A
5
4
3
2
1
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
6
9
10
Slide down panels [9] and [10] along the grooves between panels [2],
[3], [4] and [5] to form the back of the unit.
Attach 2x brackets (I) to panel [8] using 4x screws (E). Tighten with a
screwdriver. Cover each bracket with 1x clip (J) as shown.
10
9
5
3
2
9
8
E
E
E
I
I
E
I
J
E
E
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
7
11
12
Attach panel [8] to the rest of the unit using 10x dowels (A) and secure
with 10x screws (G) as shown. Tighten with a screwdriver.
Attach panels [11] and [12] together using 4x nuts (O) and 4x bolts (N)
as shown. Tighten with a screwdriver.
A
A
A
A
A
A
G
G
G
G
G
G
G
G
G
G
back
slot
8
5
3
2
N
N
N
N
O
O
O
O
N
O
Ensure slot in
nut is facing
incoming bolt.
12
11
12
11
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
8
13 14
Attach leg panels [11] and [12] to panel [8] using 10x screws (F) and
tighten with a screwdriver. Attach leg support [13] to panel [8] as
shown. Screw the height adjuster (H) onto the support leg [13]. Attach
4x plastic glides (T) to the legs using a hammer.
Attach 2x hinges (L) to panel [14] and secure with 4x screws (M). Attach
1x seal (K) using 1x screw (E). Attach 2x hinges (L) to panel [15] and
secure with 4x screws (M). Attach 1x seal (K) using 1x screw (E).
Tighten with a screwdriver.
F
F
F
F
F
F
F
F
F
F
8
13
12
11
12
H
T
T
T
T
E
E
K
K
L
L
M
M
L
M
M
M
M
L
M
M
14
15
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
9
15
16
If a clip (J) is not catching on the seal (K), adjust the magnetic end by twisting it
outwards.
Attach door panels [14] and [15] at the hinges using 16x screws (M).
Tighten with a screwdriver. Ensure the doors swing easily open and
closed.
14
15
M
M
NOTE: If the doors are uneven or
there is a gap in the middle, loosen
or tighten the screw on the door
hinge until they are sitting flush.
14
15
J
J
K
K
J
J
M
M
M
M
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
10
17 18
Insert 4x bolts (C) and attach 1x seal (K) using 1x screw (E) to panel [16]/[17].
Attach side panels [18] and [19] using 4x locking nuts (D). Slide base panel [20]
down between the grooves of the side panels. Attach back panel [21] using 4x
screws (B). Turn drawer upside down and attach 1x slide rail (S) and 1x slide
rail (R) to the side panels using 4x screws (E). Tighten with a screwdriver.
Insert drawers [16] and [17] into the unit as shown. Ensure they slide
smoothly and easily along the rails.
E
K
C
C
C
C
D
D
D
D
E
E
E
E
B
B
B
B
R
S
18
17
16
19
21
18
17
16
19
18
17
16
19
18
17
16
19
20
17
16
17
16
17
16
Nava Entertainment Unit
Assembly Instructions
mocka.co.nz | mocka.com.au
11
19 20

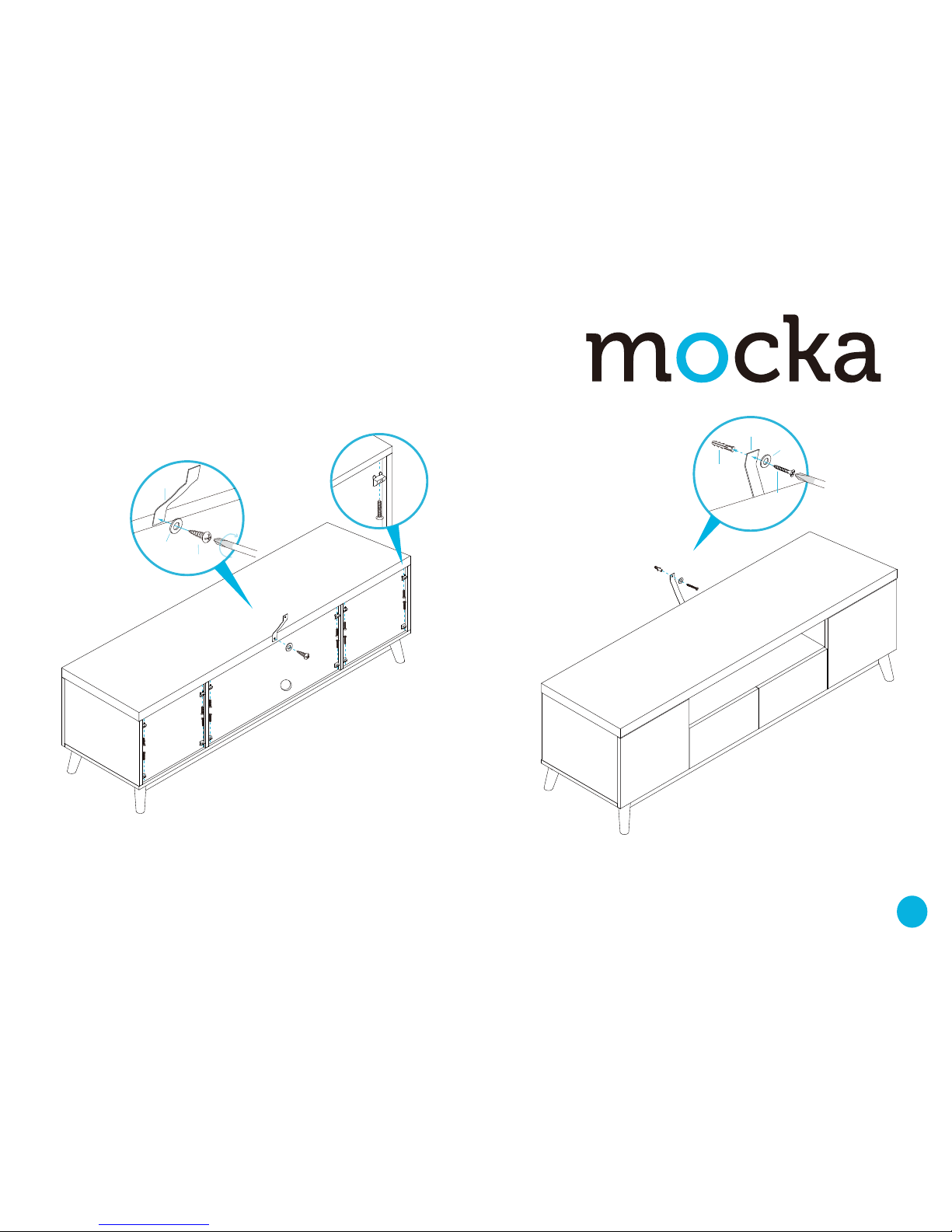

Attach 12 x wedges (U) to the back of the unit as shown, and secure
using 12x screws (A1). Now attach 1x safety strap (V) to the back edge
of panel [1] using 1 x washer (Z) and 1 x screw (W). Tighten with a
screwdriver.
Once assembled lift furniture into place, do not drag. Use a drill to create
a small hole lining up with the top of the safety strap (V). Fasten to wall
using 1x wall plug (X), 1x washer (Z) and 1x screw (Y). Ensure unit is
balanced and steady before use. You’re done, enjoy!
V
Z
W
screw
strap
washer
A1
U
A1
U
A1
U
A1
U
A1
U
A1
U
wall
plug
screw
strap
washer
X
Y
Z
