10x
cover
A B C D
Phillips & Flathead screwdrivers required
Hardware Supplied
20x
dowel
2x
screw
10x
bolt
10x
locking nut
10x
screw
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child attempts
to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall.
We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The
fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from
those supplied.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
2x
ring
E
G
H
I
4x
felt pads
J
1x
seat
1x safety
strap
Wall Strap
1x wall
screw
W
1x
screw
1x
washer
Y
Z
1x wall
anchor
X

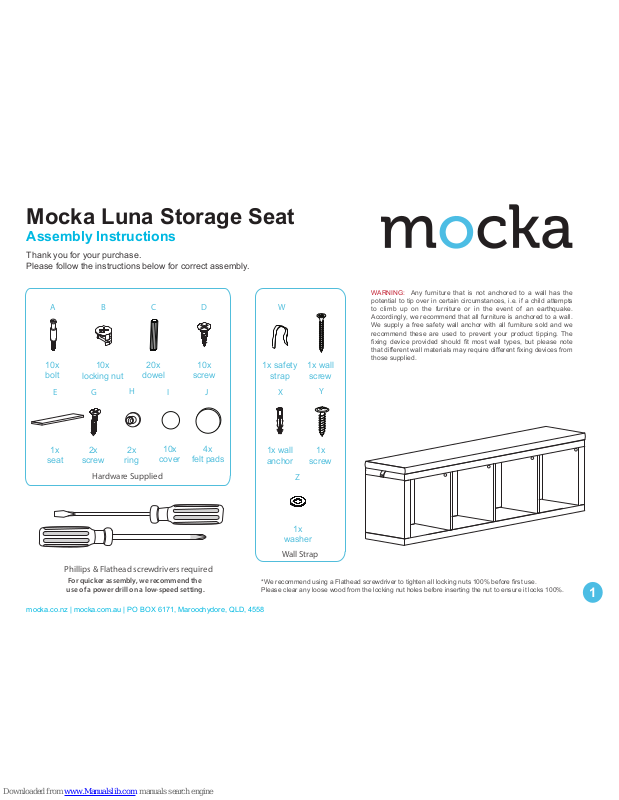

Mocka Luna Storage Seat
1
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
1
2
Insert 10x dowel (C) into panels [3], [4] and 3x [5].
Attach panels [3], [4] and 3x [5] to panel [2] with 10x screws (D).
Tighten all screws with a screwdriver.
Insert panel [6] into the back of panels [3] and [4].
5
4
3
5
5
6
2
3
4
Mocka Luna Storage Seat
2
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
Assembly Instructions
3
4
Attach 10x bolt (A) to panel [1].
Tighten all bolts with a screwdriver.
Insert 10x dowel (C) into panels [3], [4] and 3x [5].
Attach panel [1] to panels [3], [4] and 3x [5] with 10x locking nut (B) and
tighten with a screwdriver.
Place 10x cover (I) over 10x locking nut (B).
4
1
4
1
4
1
1
1
5
4
3
5
5
Mocka Luna Storage Seat
3
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
Assembly Instructions
5
6
Place 2x ring (H) over 2x screw (G) and attach to panel [1].
Place 1x seat (E) onto panel [1] as shown and clip the tabs into place
over rings (H). Tighten all screws with a screwdriver.
Attach 4x felt pads (J) to the base of panel [2].
2
1
Y
J
J
J
J
Attach 1x safety strap (W) to the back of panel [1] with 1x screw (Y)
and tighten with a screwdriver.
Y
W
1
1
Mocka Luna Storage Seat
4
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
Assembly Instructions
6
Once assembled lift furniture into place, do not drag. Use a drill to create a small hole
lining up with the top of the safety strap (W). Fasten to wall using 1x wall anchor (X),
1x washer (Z) and 1x wall screw. Ensure unit is balanced and steady before use.
You’re done, enjoy!
