For quicker assembly, we recommend the use of a
power drill on a low-speed setting.
A B
C
D
E
F
G
H
J
K
L
I
Hardware Supplied
dowel
x32
bolt
x16
locking
nut x16
small
screw x60
L + R slide
rail x6
plastic
glide x4
nail
x24
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
small
bolt x24
L + R slide
rail x6
small
locking
nut x24
M
screw
x24
x2
washer
Z
Wall
Screw
r/washer
screw
x1
Y
wall
anchor
x1
X
Safety
Strap
W
Wall Strap
V
WARNING: Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child
attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
require different fixing devices from those supplied.
Phillips & Flathead screwdriver and hammer required
Jolt Six Drawer - Slim
1
mocka.co.nz | mocka.com.au
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
1
2
Attach 6x slide rails (G) to panel [2] with 18x small screws (F). Attach
6x slide rails (H) to panel [3] with 18x small screws (F). Tighten with a
screwdriver.
Insert 6x bolts (B) into panel [2]. Insert 6x bolts (B) into panel [3].
2
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
G
G
G
G
G
G
2
B
B
B
B
F
B
B
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
F
3
H
H
H
H
H
H
3
B
B
B
B
B
B
Jolt Six Drawer - Slim
2
mocka.co.nz | mocka.com.au
Assembly Instructions
3
4
4
Insert 14x dowels (C) into panel [2] as shown, and attach panels [4],
[5], [6], [7] and [8]. Secure with 6x locking nuts (A) and tighten with a
screwdriver.
Insert 14x dowels (C) into the tops of panels [4], [5], [6], [7] and [8] and
attach panel [3]. Secure with 6x locking nuts (A) and tighten with a
screwdriver.
7
5
4
3
2
4
5
6
C
C
C
C
C
C
A
C
A
A
A
C
C
C
A
C
C
C
A
C
C
A
C
A
4
C
8
A
C
C
5
C
A
Jolt Six Drawer - Slim
3
mocka.co.nz | mocka.com.au
Assembly Instructions
5
6
Insert 4x bolts (B) into panel [1]. Attach panel [1] to the rest of the unit with 4x dowels (C). Secure with 4x
locking nuts (A) and tighten with a screwdriver.
1
1
B
A
C
B
B
B
A
C
A
C
A
Jolt Six Drawer - Slim
Assembly Instructions
4
mocka.co.nz | mocka.com.au
Jolt Wardrobe
ASSEMBLY INSTRUCTIONS
5
mocka.co.nz | mocka.com.au
7
8
Attach panels [9] to the back of the unit using the connector [10].
Secure the panels with 24x nails (K) using a hammer.
Insert 4x plastic glides (E) into the base of the unit.
10
9
9
K
E
E
E
E
Jolt Six Drawer - Slim
Assembly Instructions
5
mocka.co.nz | mocka.com.au
9
10
Insert 4x small bolts (L) into panel [11]. Attach side panels [12] and [13]
and secure with 4x locking nuts (D). Tighten with a screwdriver.
Slide panel [14] between the grooves of the side panels to form the base
of the drawer. Attach the back panel [15] and secure with 4x screws (M).
Tighten with a screwdriver.
12
11
13
Drawers x6
15
14
L
L
L
L
D
D
D
D
11
M
M
M
M
Jolt Six Drawer - Slim
Assembly Instructions
6
mocka.co.nz | mocka.com.au
11
12
Attach slide rails (I) and (J) to the sides of the drawer and secure with
4x small screws (F). Tighten with a screwdriver.
Insert the completed drawers into the unit, ensuring they slide easily
along the rails.
F
F
F
F
J
I
Jolt Six Drawer - Slim
Assembly Instructions
7
mocka.co.nz | mocka.com.au
13
14

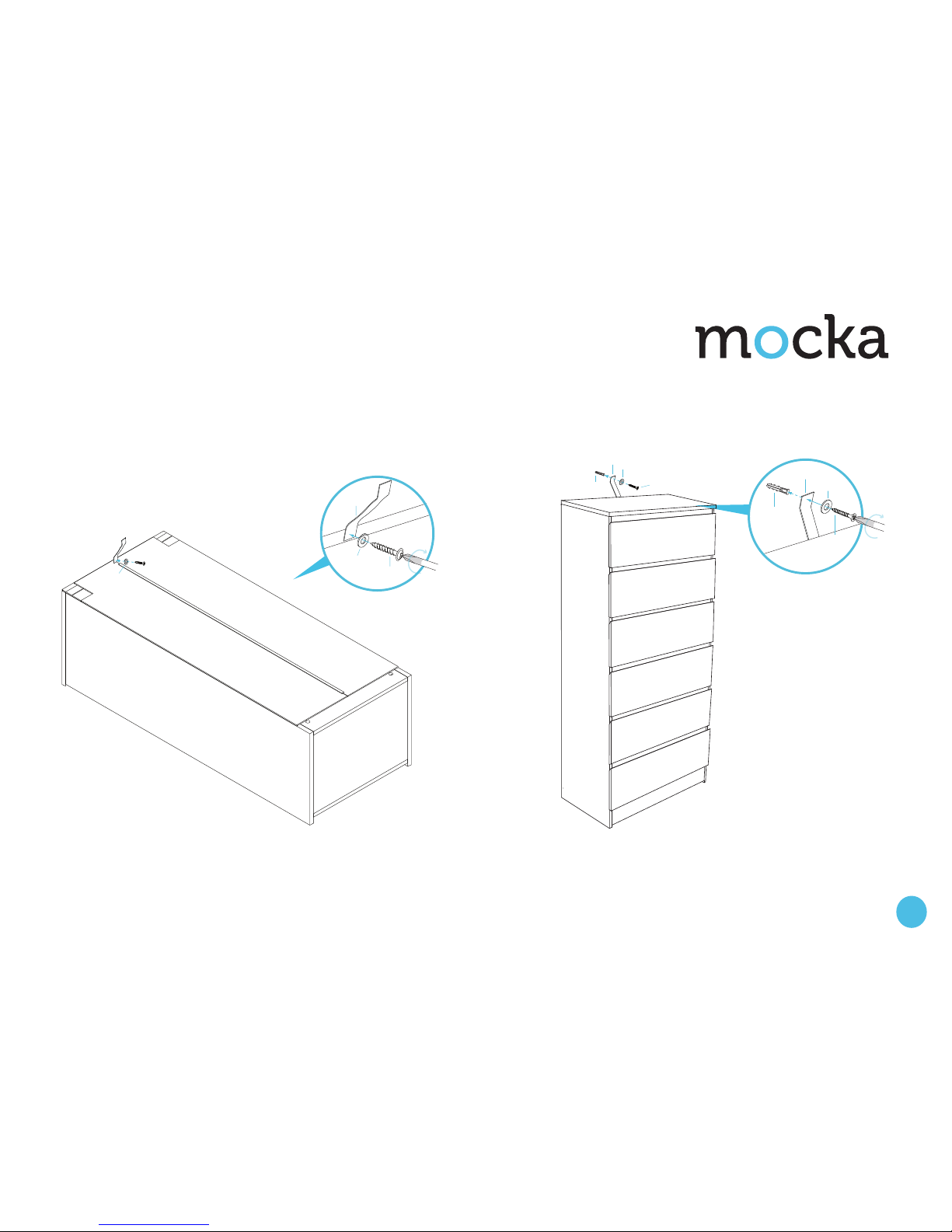

Carefully lay unit on its front and attach safety strap (V) to the top of the
back side of the unit using 1x washer (Z) and 1x screw (Y). Tighten with
a screwdriver. Once assembled lift furniture into place, do not drag.
Move the unit into the desired location up against a wall. Use a drill to
create a small hole lining up with the top of the safety strap (V). Fasten
to wall using 1x wall anchor (X), 1x washer (Z) and 1x screw (W). Ensure
unit is balanced and steady before use. You’re done, enjoy!
Wall Strap
r/washer
screw
V
x1
wall
anchor
wall
screw
Washer
Strap
V
X
Z
W
Y
V
washer
Z
Jolt Six Drawer - Slim
Assembly Instructions
8
mocka.co.nz | mocka.com.au
