Jesse Three Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
Hardware Supplied
dowel
x17
bolt
x43
screw
x18
locking nut
x43
small screw
x30
cam bolt
x4
mocka.co.nz | mocka.com.au
1
A B
C
D E
N
ML
K
J
IHG
F
cam nut
x4
wedge
x4
scerw
x4
long
scerw
x4
Wall Strap
x2
washer
Z
Y
wall
anchor
x1
X
safety
strap x1
WV
screw
x1
wall
screw
x1
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
CL runner tracksx3CR runner tracksx3DL runners
x3
DR runners
x3
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
2
1
2
E
E
E
E
G
E
E
E
E
G
G
E
E
E
G
E
E
F
F
E
E
E
F
E
E
E
F
E
2
3
CR
CL
C
C
2
3
C
C
C
C
C
C
C
C
C
C
Attach 3xCL runner tracks (F) to panel [2] using 9x small screws (E).
Attach 3xCR runner tracks (F) to panel [3] using 9x small screws (E).
Tighten with a screwdriver.
Insert 6x bolts (C) into panel [2]. Insert 6x bolts (C) into panel [3].
Tighten with a screwdriver.
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
3
3
4
3
5
6
6
D
D
D
D
D
D
D
D
D
D
D
D
C
C
1
C
C
2
Attach panels [5] and [6] to panels [3] and [2] using 12x locking
nuts (D). Tighten with a screwdriver.
Insert 4x bolts (C) into panel [1]. Tighten with a screwdriver.
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
4
5
6
A
A
D
D
D
A
A
A
1
3
2
7
7
8
Attach panel [1] to panel [2] , [3] and [5] using 6x dowels (A) and
secure with 4x locking nuts (D). Tighten with a screwdriver.
Insert connector [8] to join panels [7].
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
5
7
8
2
3
7
7
A
J
J
A
A
J
J
2
3
4
Slide panels [7] along the grooves between the side panels [2]
and [3].
Insert 4x dowels (A) into the top of panel [2] and [3]. Attach the base panel
[4] by inserting 4x long screws (J) and tighten with a screwdriver.
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
6
9
10
C
C
C
C
C
C
C
C
2
3
4
C
A
10
11
12
x2
C
A
D
D
Insert 8x bolts (C) into panel [4]. Tighten with a screwdriver.
Insert 2x dowels (A) and screw 2x cam bolts (C) into panels [11] and [12].
Attach panel [10] , [11] and [12] using 2x locking nuts (D). Tighten with a
screwdriver.
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
7
11
12
9
9
10
10
D
D
D
D
4
Insert 2x cam nuts (L) into each support panel [9]. Attach panels
[11] and [12] to panels [9] using 4x cam bolt (K). Tighten with a
screwdriver.
Attach the base and legs using 8x locking nuts (D). Tighten with
a screwdriver.
K
K
K
K
K
L
L
L
L
L
9
9
11
11
12
12
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
8
13
14
C
C
C
C
C
13
D
D
D
D
D
A
13
14
15
17
Insert 5x bolts (C) into panel [13]. Tighten with a screwdriver.
Insert dowel (A) into panel [13]. Attach panels [14], [15] and [17] to
panel [13] secure with 5x locking nuts (D). Tighten with a screwdriver.
X3
X3
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
9
15
16
13
16
14
15
B
B
B
B
B
B
14
15
18

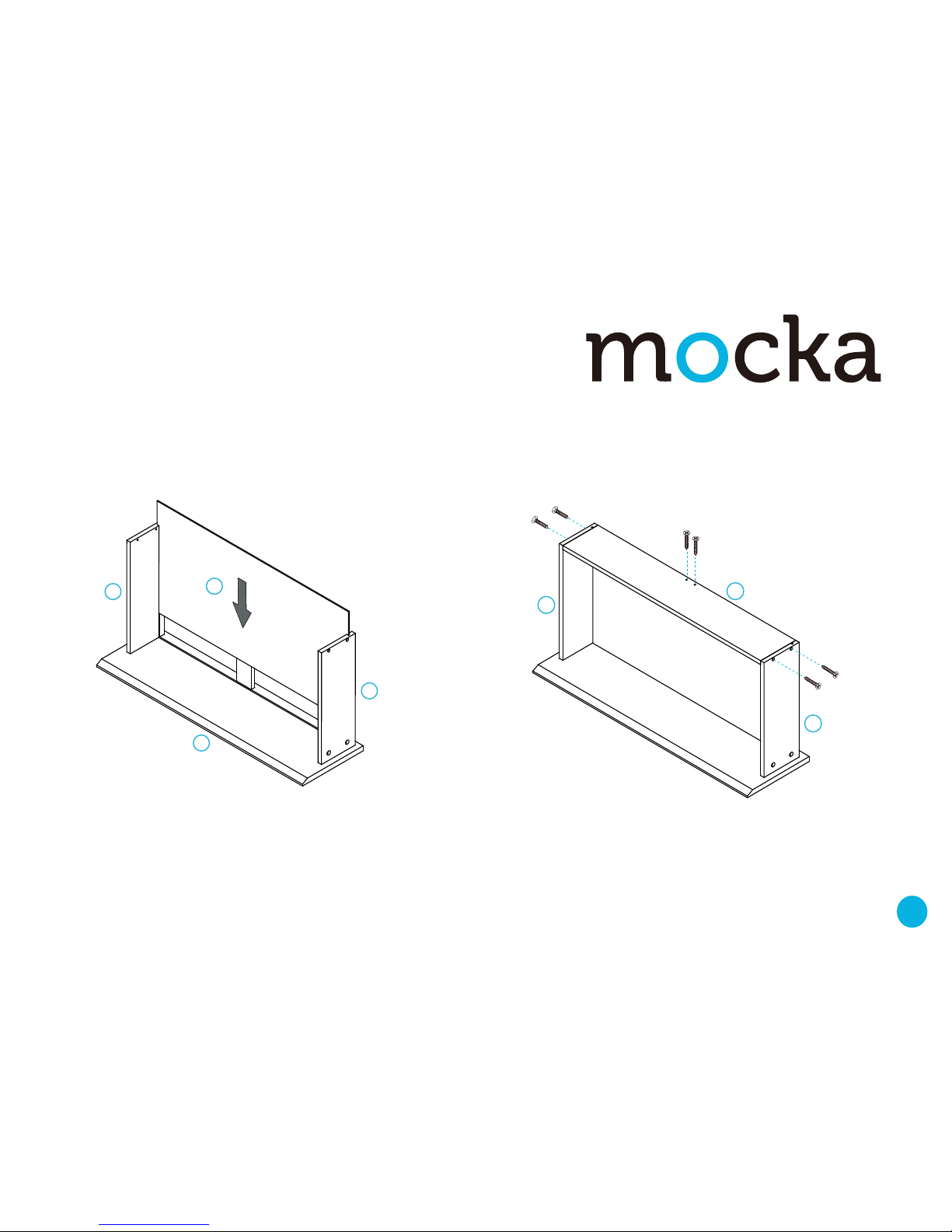

Slide panel [16] along the grooves between the side panels [14]
and [15] to form the base of the drawer.
Attach panels [14], [15] and [18] as shown using 6x screws (B).
Tighten with a screwdriver.
X3
X3
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
10
17
18
14
15
DR
DL
H
H
I
I
E
E E
E
E
E
E
E
13
13
13
Attach slide rails (I) and slide rails (H) to the underside of the side
panels as shown. Secure with 4x screws (E) and tighten with a
screwdriver.
Insert the assembled drawers into the corresponding compartments as
shown. Ensure the drawers slide easily along the rails.
X3
Jesse Three Drawer
Assembly Instructions
mocka.co.nz | mocka.com.au
11
19
20
V
Z
W
M
N
X
Y
Z
Attach 4x wedges (M) into the corners of the back of the unit and
secure with 4x screws (N). Tighten with a screwdriver. Attach 1x
safety strap (V) to the top of the back side of the unit as shown
using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver.
Once assembled lift furniture into place, do not drag. Use a drill to create
a small hole lining up with the top of the safety strap (V). Fasten to wall
using 1x washer (Z), 1x wall plug (X) and 1x screw (Y). Ensure unit is
balanced and steady before use. You’re done,enjoy!
