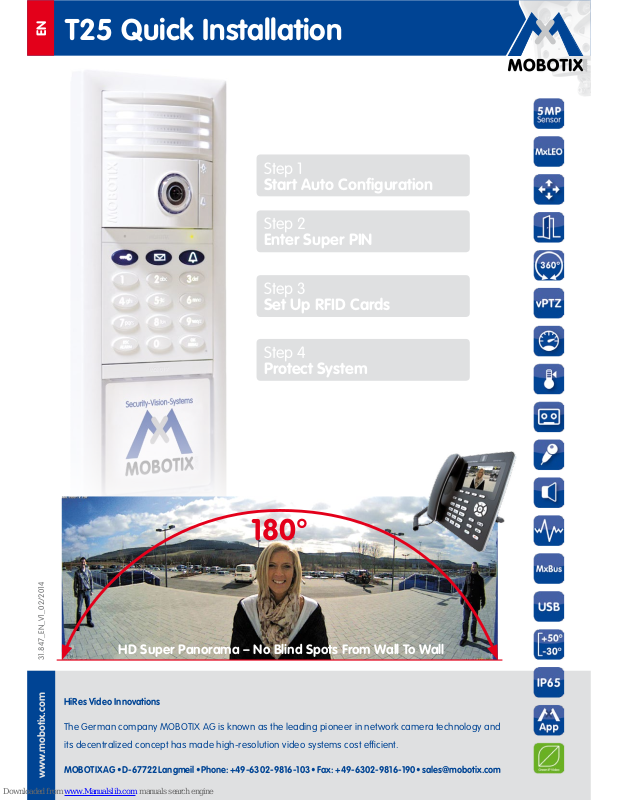

Mobotix T25 Quick Installation

www.mobotix.com

EN

T25 Quick Installation

HiRes Video Innovations

The German company MOBOTIX AG is known as the leading pioneer in network camera technology and

its decentralized concept has made high-resolution video systems cost ecient.

MOBOTIX AG • D-67722 Langmeil • Phone: [phone] • Fax: [phone] • [e-mail]

31.847_EN_V1_02/2014

HD Super Panorama – No Blind Spots From Wall To Wall

180°

Step 1

Start Auto Configuration

Step 2
Enter Super PIN

Step 3
Set Up RFID Cards

Step 4
Protect System

EN

T25 Quick Installation

MOBOTIX AG • D-67722 Langmeil • Phone: [phone] • Fax: [phone] • www.mobotix.com

Congratulations On Purchasing Your T25M Complete Kit!

You complete kit comes complete with a door camera T25M-CamCore, KeypadRFID, Info2wire+
info module and indoor unit for connecting the door station via a two-wire cable plus an MX-DoorMaster,
on-wall and in-wall housing and installation material. Before starting the installation, release the
modules from the frame by inserting the blue key into the opening on the module frame and pushing
the key in (bottom left). The installation and wire connection process is described in Part 1 of the
enclosed System Manual.

Key for unlocking
modules

RFID cards
(1 x Admin, 6 x User)

USB stick, marker pen

Lens wrench

MX-DoorMaster and
Info2wire+ installation material

Outdoor station installation
material

Cable binders

Documentation

In-wall housing

MX-DoorMaster

Info2wire+
indoor unit

MX-DoorMaster and
Info2wire+ indoor unit frames

T25M-CamCore, KeypadRFID,
Info2wire+ info module, frame
with anti-theft protection, on-wall
housing

Step 1 – Start The Auto Configuration

Connect And Start Up The Devices

Connect all the devices as shown in the connection diagram in the enclosed System Manual Part 1,
Chapter 2.1.3.

Switch on the power supply (videophone via a power supply unit, door station via a PoE
switch). After the videophone has started up, disconnect the door station briefly from the power supply
(for example, remove network connector).

Press The Bell Button On The Camera Module

As soon as the light and bell buttons on the camera module light up white, press the bell button until
the two buttons start to flash briefly. The auto configuration process starts and the network data is
announced (for example, IP address). Afterwards, the camera LEDs light up, the keypad number buttons
flash white, the ESC/ALARM button flashes red and the OK/MENU button flashes blue.

Step 2 – Enter Super PIN

Choose an 8 to 16 digit number. The number should not be composed only of zeros and must be
dicult to guess. Important: Make a note of the Super PIN straight away and keep it in a safe place!

Enter the Super PIN and press the OK/MENU button. Enter the Super PIN again and press
the OK/MENU button.

0 9

Super PIN

OK

0 9

Super PIN

OK

EN

T25 Quick Installation

MOBOTIX AG • D-67722 Langmeil • Phone: [phone] • Fax: [phone] • www.mobotix.com

Step 3 – Set Up RFID Cards

Set Up Red Admin Card

After you have entered your Super PIN, the keypad number buttons light up white, the bell, key and
OK/MENU buttons flash blue and the ESC/ALARM button flashes red.

Now hold the Admin card in front of the keypad for approximately five seconds until you no longer
hear any beeps.

Set Up Blue User Cards

Afterwards, the keypad remains in Add mode for two minutes to allow you to train the User cards, i. e.,
the bell button, key button, OK/MENU button and ESC/ALARM button all flash blue.

Hold a User card to be set up in front of the keypad until a beep sounds. You can now set up as many
additional User cards as you choose, simply by holding them in front of the keypad. To exit the Add
mode before completion, press the ESC/ALARM button.

Step 4 – Protect System Via Videophone

By protecting your system, you can prevent unauthorized persons from accessing the individual networked
devices via their IP address. The door camera was previously assigned secure access data when you
set up the Super PIN: user name: admin, camera admin password: current Super PIN

Pick up the receiver and press the ‘*’ button three times to go to the configuration menu. Press the ‘4’
button to select the Admin setup option and log in with your Super PIN.

Now change the Grandstream web password, disable auto configuration (by removing the check mark)
and save your current system configuration (item: Backup and restore). For a detailed description
of how to protect your system, please see Chapter 2.4 in Part 2 of the System Manual (PDF file on the
enclosed USB stick).

Add mode Hold in front for five seconds Confirm

Add mode Hold briefly in front Confirm
